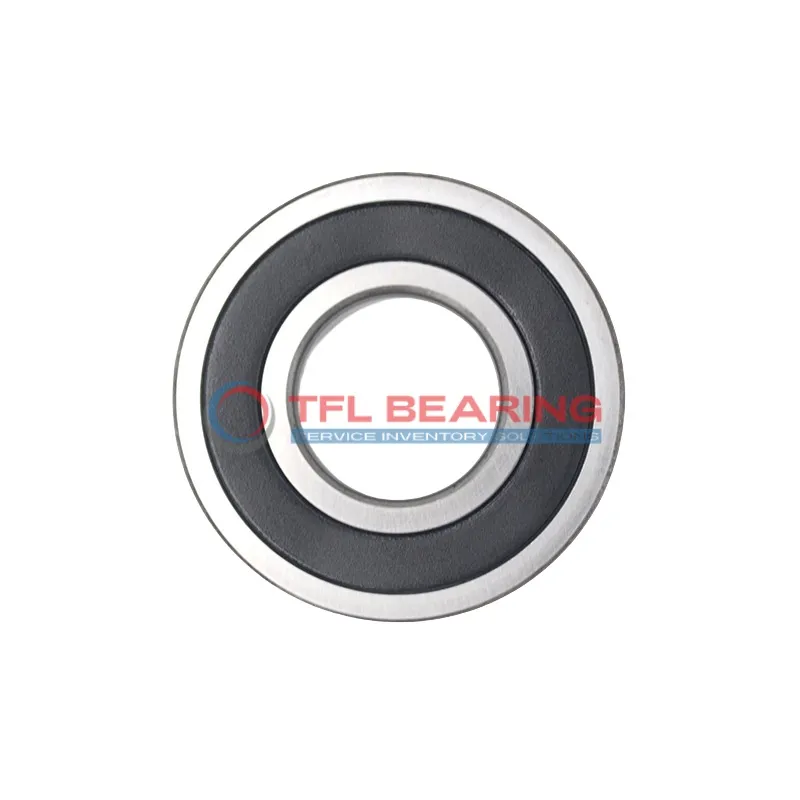

Self Aligning Ball Bearings 2200-2RSR

Self Aligning Ball Bearings 2200-2RSR

The 2200-2RSR is a self-aligning ball bearing with a 10mm bore and 30mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1244 lbf and operates smoothly at speeds up to 17000 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for applications like electric motors or conveyor systems where slight misalignment might occur.

Weighing just 0.048kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2200-2RSR
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 14.6 mm
  • Internal Diameter On Outer Ring 24.72 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 1244 lbf
  • Static Radial Load 266 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.048 kg
Self Aligning Ball Bearings 2200-2RSR dimension drawing
Download DWG Download PDF

Features

Why Choose 2200-2RSR Bearing for Precision Tasks?

2200-2RSR Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 1244 lbf makes it suitable for high-performance applications.
The sealed construction and nylon cage provide smooth operation and reduced maintenance needs.
With a maximum speed of 17,000 rpm, it offers both durability and efficiency in demanding conditions.

Application

Industrial Uses of 2200-2RSR Bearing
2200-2RSR Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

Where Is 2200-2RSR Bearing Used?
In automotive applications, 2200-2RSR Bearing fits well in steering columns and gearbox assemblies. Its nylon cage reduces noise, making it ideal for smooth, quiet operation.

Built for Heavy-Duty Use: 2200-2RSR Bearing
2200-2RSR Bearing handles radial loads efficiently in agricultural machinery like harvesters. The chrome steel construction provides durability even in tough working conditions.

Automotive vs Industrial: Applications of 2200-2RSR Bearing
2200-2RSR Bearing works equally well in industrial fans and car alternators. Its double-row design offers stability, while the lubricated seals require minimal maintenance.

Perfect Fit for Automation: 2200-2RSR Bearing
2200-2RSR Bearing is a reliable choice for robotic arms in assembly lines. The metric sizing ensures compatibility with various automated systems across industries.
