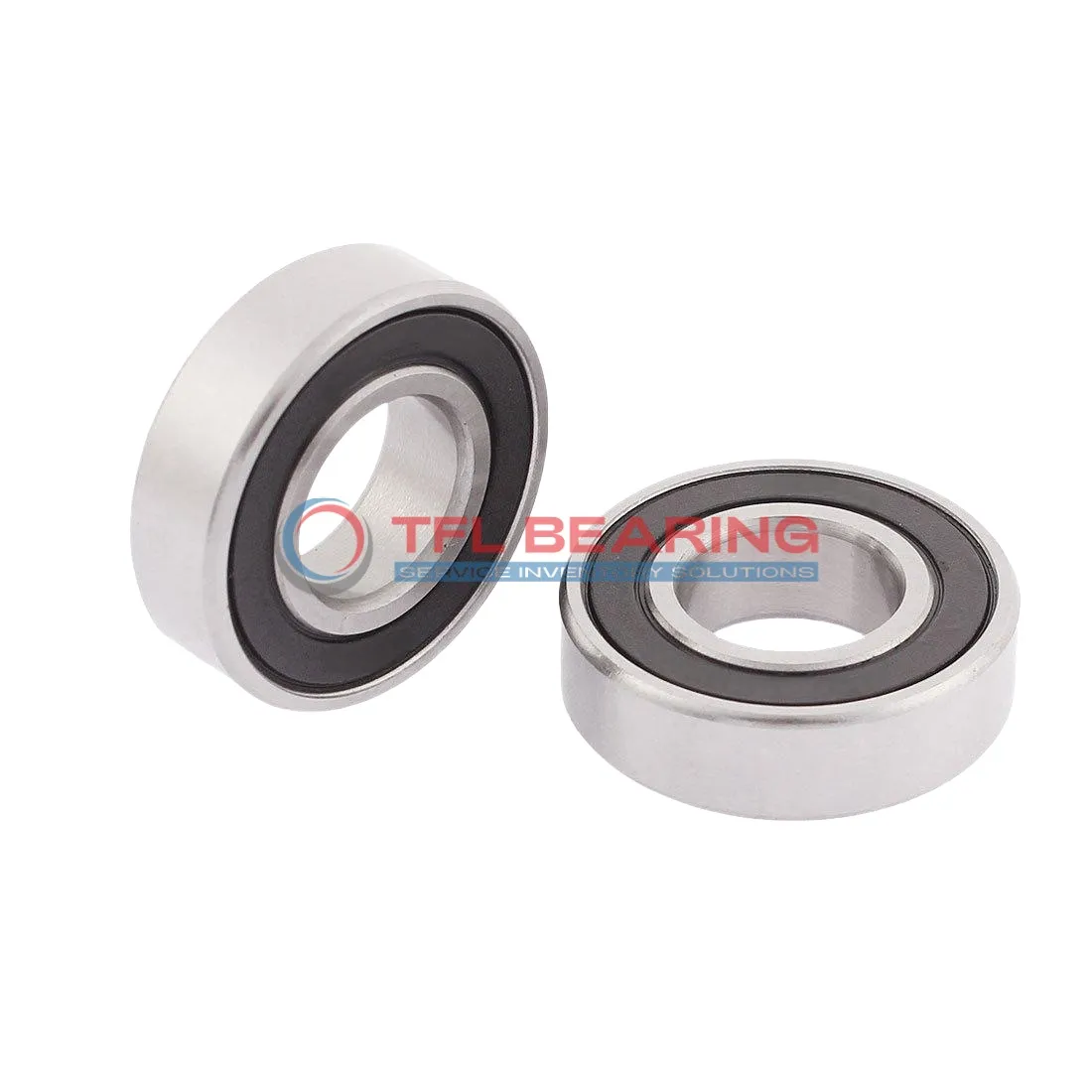

Single Row Deep Groove Ball Bearings 608-2RSH/C3LT10

Single Row Deep Groove Ball Bearings 608-2RSH/C3LT10

The 608-2RSH/C3LT10 is a compact single-row deep groove ball bearing with an 8mm bore and 22mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 630 lbf and spins smoothly at speeds up to 34,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for small machinery, skateboards, or electric motors where space is limited but performance matters.

Weighing just 11.8g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2RSH/C3LT10
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-2RSH/C3LT10 dimension drawing
Download DWG Download PDF

Features

Why Choose 608-2RSH/C3LT10 Bearing for Precision Tasks?

608-2RSH/C3LT10 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 630 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 34,000 rpm, making it suitable for high-speed applications.

Application

Common Applications of 608-2RSH/C3LT10 Bearing
608-2RSH/C3LT10 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design keeps out dust and moisture, ensuring long-lasting performance in everyday environments.

In skateboards and inline skates, 608-2RSH/C3LT10 Bearing provides smooth rolling motion thanks to its deep groove design and C3 clearance. The chrome steel construction handles the impacts and vibrations typical in these applications.

For office equipment like printers and scanners, 608-2RSH/C3LT10 Bearing offers quiet operation and reliable radial load support. The compact 8mm bore makes it ideal for space-constrained mechanisms.

In DIY projects and hobbyist gadgets, 608-2RSH/C3LT10 Bearing is a popular choice due to its affordability and versatility. The metric sizing works well with standard European and Asian components.
