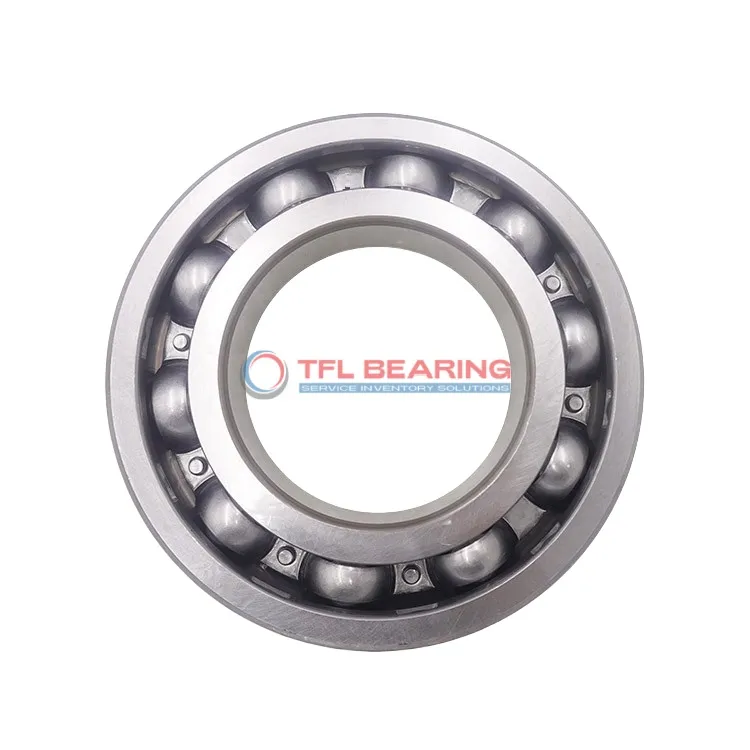

Single Row Deep Groove Ball Bearings 6326

Single Row Deep Groove Ball Bearings 6326

The 6326 is a single-row deep groove ball bearing with a 130mm bore and 280mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 51481 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design allows for easy lubrication and maintenance, while the P6 tolerance ensures precise performance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or pumps where radial loads are common.

Weighing 15.2kg, it’s robust and built to last. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6326
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 51481 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 3200 rpm
  • Weight 15200 g
  • price（$） 270
Single Row Deep Groove Ball Bearings 6326 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6326 Bearing

6326 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 51481 lbf, making it suitable for heavy-duty applications.
The single-row deep groove design ensures smooth operation and reduces friction.
With a maximum speed of 3,200 rpm, it balances performance and durability.

How Does 6326 Bearing Reduce Friction?

6326 Bearing’s deep groove design minimises friction during operation, enhancing efficiency.
The chrome steel construction ensures durability while maintaining smooth performance.
Its open seal type allows for easy lubrication, further reducing wear and tear.
This design makes it ideal for applications requiring reliable radial load support.

Engineered for Precision: 6326 Bearing

6326 Bearing is precision-crafted to meet P6 tolerance standards, ensuring accurate performance.
The chrome steel components provide excellent resistance to wear and corrosion.
With a temperature range of -30° to 120°C, it performs well in various environments.
Its static radial load capacity of 48559 lbf ensures long-term reliability.

Why Choose 6326 Bearing for Precision Tasks?

6326 Bearing’s high precision and tight tolerances make it ideal for detailed applications.
The chrome steel materials ensure consistent performance under radial loads.
Its open design simplifies maintenance, reducing downtime and operational costs.
With a weight of 15200 g, it offers a robust solution for industrial needs.

Structural Advantages of 6326 Bearing

6326 Bearing features a single-row deep groove design for optimal load distribution.
The chrome steel construction enhances durability and resistance to wear.
Its wide temperature range allows for reliable operation in varying conditions.
This bearing is REACH compliant, meeting stringent environmental standards.

Application

Industrial Uses of 6326 Bearing
The 6326 Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its radial load capacity handles constant motion efficiently. Its open design simplifies lubrication, extending service life in demanding conditions.

Where Is 6326 Bearing Used?
You’ll find the 6326 Bearing in conveyor systems and agricultural equipment, thanks to its robust chrome steel construction. The P6 tolerance ensures reliable performance even under uneven loads.

Built for Heavy-Duty Use: 6326 Bearing
This bearing excels in mining equipment and construction machinery, where its 130mm bore accommodates large shafts. The 58mm width provides stability during high-torque operations.

Automotive vs Aerospace: Applications of 6326 Bearing
In trucks, the 6326 Bearing supports axle assemblies, while its temperature range (-30° to 120°C) suits auxiliary aerospace systems. The metric sizing ensures compatibility across global platforms.

Perfect Fit for Automation: 6326 Bearing
The 6326 Bearing works well in robotic arms and assembly line rollers, balancing speed (3.2k rpm) and load capacity. Its CN clearance offers smooth rotation for precision tasks.
