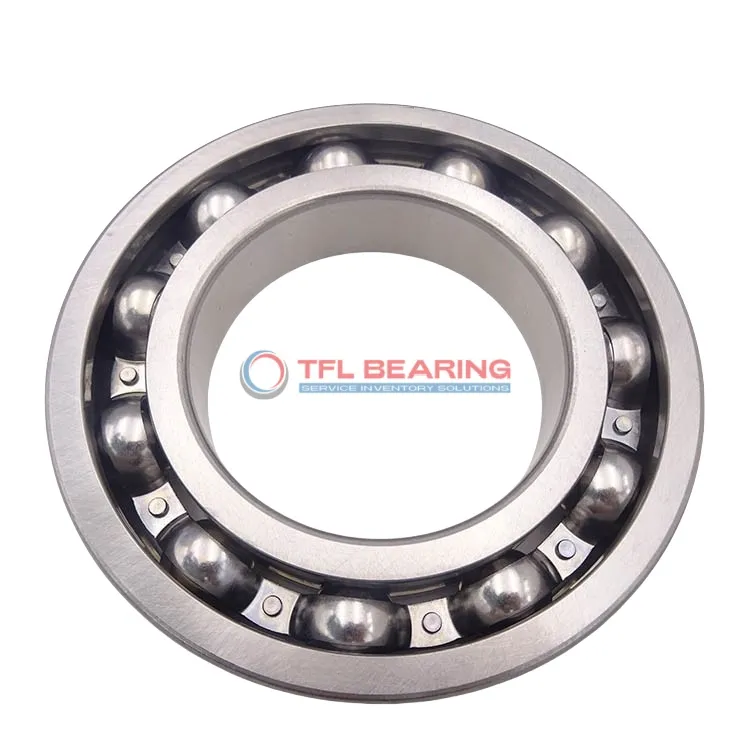

Single Row Deep Groove Ball Bearings 6320/C3/EQ

Single Row Deep Groove Ball Bearings 6320/C3/EQ

The 6320/C3/EQ is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 38892 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 7040g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6320/C3/EQ
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 38892 lbf
  • Static Radial Load 31698 lbf
  • Max Speed 2800 rpm
  • Weight 7040 g
Single Row Deep Groove Ball Bearings 6320/C3/EQ dimension drawing
Download DWG Download PDF

Features

Performance Features of 6320/C3/EQ Bearing

6320/C3/EQ Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 38,892 lbf, making it suitable for heavy-duty applications.

The single-row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 2,800 rpm, it balances performance and durability in various conditions.

6320/C3/EQ Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its open design simplifies maintenance, reducing downtime and operational costs.

The C3 radial clearance provides flexibility in applications with varying thermal expansions.
Chrome steel construction enhances longevity, even under continuous use.

Application

Essential Roles of 6320/C3/EQ Bearing
In industrial settings, 6320/C3/EQ Bearing is commonly used in heavy machinery like pumps and compressors, where its radial load capacity ensures reliable performance.
The C3 clearance makes it suitable for applications with thermal expansion, such as electric motors or gearboxes.

How Does 6320/C3/EQ Bearing Support High-Speed Operations?
For automotive applications, 6320/C3/EQ Bearing handles radial loads in wheel hubs and transmissions, balancing durability and smooth rotation.
Its chrome steel construction resists wear, even under continuous use in demanding conditions.

Built for Heavy-Duty Use: 6320/C3/EQ Bearing
In automation systems, 6320/C3/EQ Bearing fits well in conveyor belts and robotic arms, where precision and load capacity are key.
The open design allows for easy lubrication, extending service life in high-friction environments.

General Machinery vs Specialized Equipment: 6320/C3/EQ Bearing in Action
For consumer appliances like washing machines, 6320/C3/EQ Bearing provides quiet operation and long-term reliability.
Its metric sizing ensures compatibility with a wide range of equipment, from industrial to household uses.
