Self Aligning Ball Bearings 1317 C/3

Self Aligning Ball Bearings 1317 C/3

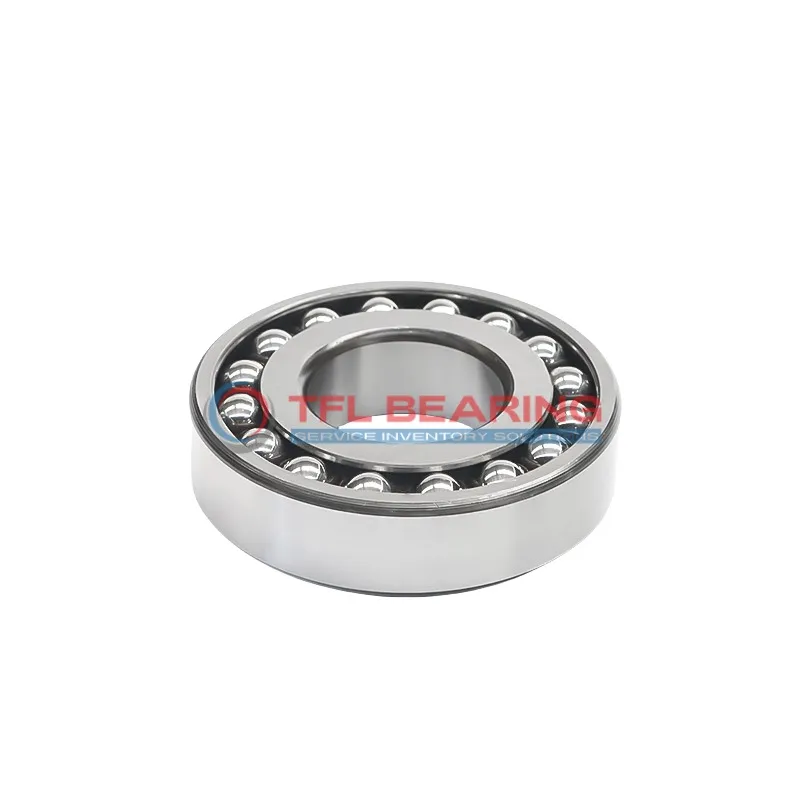

The 1317 C/3 is a self-aligning ball bearing with an 85mm bore and 180mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 21938 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design helps it adjust to misalignment, while the open seal allows for easy lubrication. The stainless steel cage ensures durability and long service life.

This bearing works well in temperatures from -30°C to 110°C, making it suitable for various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 5kg, it’s robust yet manageable for industrial use. Ideal for applications like conveyor systems or heavy machinery where alignment flexibility is needed. Compliant with RoHS and REACH standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1317 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 41 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 117.6 mm
  • Internal Diameter On Outer Ring 152.8 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 21938 lbf
  • Static Radial Load 8550 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 5 kg
  • Price（$） 209.12
Self Aligning Ball Bearings 1317 C/3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 1317 C/3 Bearing

1317 C/3 Bearing is designed with double-row chrome steel balls, offering high radial load capacity up to 21938 lbf.
Its stainless steel cage ensures smooth operation, even at speeds reaching 4,800 rpm.

The cylindrical bore design simplifies installation, making it suitable for various industrial applications.
With a temperature range of -30° to 110°C, 1317 C/3 Bearing performs reliably in diverse conditions.

The open seal type allows for easy lubrication, reducing maintenance requirements.
Its chrome steel construction provides excellent durability and resistance to wear.

Application

Industrial Uses of 1317 C/3 Bearing
1317 C/3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design helps manage radial loads efficiently. The open seal allows for easy lubrication, extending its service life in demanding environments.

In automotive applications, 1317 C/3 Bearing fits well in gearboxes and drivetrains, providing reliable performance under constant radial stress. Its chrome steel construction ensures durability, even in high-temperature conditions.

For automation equipment, 1317 C/3 Bearing supports smooth operation in robotic arms and assembly lines. The self-aligning feature compensates for minor misalignments, reducing wear and tear over time.

Where Is 1317 C/3 Bearing Used?
You’ll often find 1317 C/3 Bearing in industrial pumps and compressors, where its radial load capacity and stability are key. The stainless steel cage adds corrosion resistance, making it suitable for humid or wet conditions.

In wind turbines, 1317 C/3 Bearing handles variable loads and misalignments, ensuring consistent energy output. Its metric sizing makes it a versatile choice for European and Asian equipment manufacturers.

Built for Heavy-Duty Use: 1317 C/3 Bearing
1317 C/3 Bearing excels in construction equipment like cranes and excavators, where its robust design withstands heavy radial loads. The lubricated setup reduces friction, enhancing performance in continuous operation.

For agricultural machinery, 1317 C/3 Bearing offers reliability in tractors and harvesters, even in dusty environments. The chrome steel rings and balls provide long-lasting durability under tough conditions.

Automotive vs Aerospace: Applications of 1317 C/3 Bearing
In automotive systems, 1317 C/3 Bearing is ideal for wheel hubs and transmissions, balancing load and speed requirements. Its self-aligning feature adapts to slight misalignments, reducing maintenance needs.

In aerospace, 1317 C/3 Bearing supports auxiliary systems like landing gear mechanisms, where precision and reliability are critical. The temperature range ensures performance in varying operational conditions.
