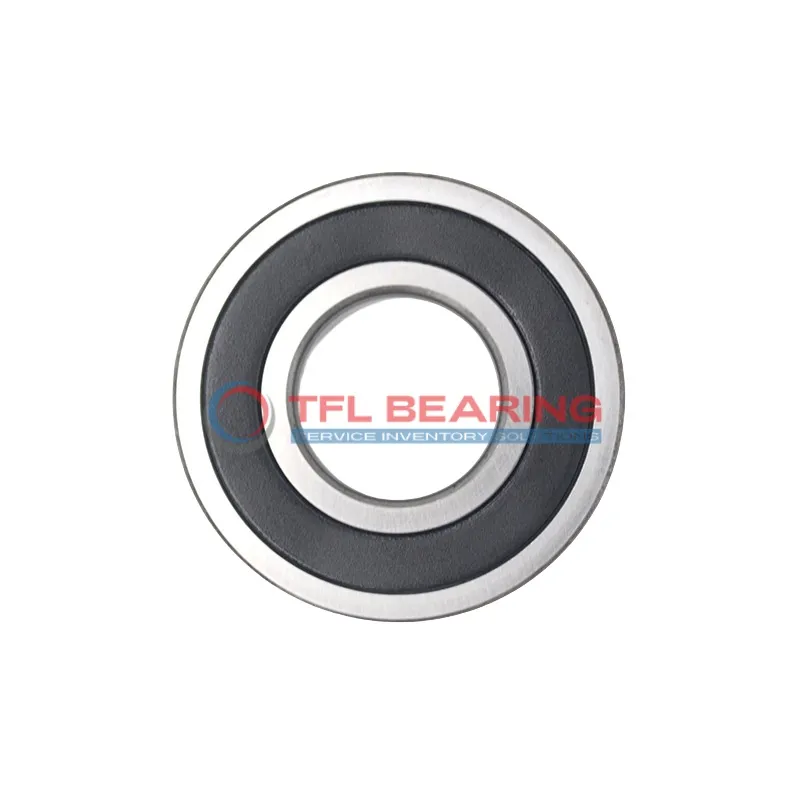

Self Aligning Ball Bearings 2302-2RSTN

Brand: TFL Bearing Interchangeable: SKF 2302-2RSTN 15 mm × 42 mm × 17 mm Metric Open
Part number: 2302-2RSTN
Self Aligning Ball Bearings 2302-2RSTN
In Stock
US$66.31 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia42 mm
Outer Dia Tolerance-0.011mm to 0
Width17 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring23.17 mm
Internal Diameter On Outer Ring33.3 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load2,678 lbf
Static Radial Load652 lbf
Temperature Range-30° to 110 °C
Max Speed24,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.12 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2302-2RSTN is a self-aligning ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2678 lbf and spins smoothly at speeds up to 24,000 RPM.

Its double-row design and open seal make it adaptable to slight misalignments, while the nylon cage reduces friction for quieter operation. The bearing works well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or conveyor systems where alignment flexibility is needed.

Weighing just 0.12kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Features

How Is 2302-2RSTN Bearing Engineered for Reliability?

2302-2RSTN Bearing features a double-row design, enhancing its radial load capacity up to 2678 lbf.
Its chrome steel rings and balls ensure durability, while the nylon cage reduces friction and noise.
The bearing operates smoothly at speeds up to 24,000 rpm, making it suitable for high-speed applications.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Application

Industrial Uses of 2302-2RSTN Bearing
2302-2RSTN Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures smooth operation even under heavy radial loads.

In automotive applications, 2302-2RSTN Bearing fits well in gearboxes and wheel hubs, thanks to its durable chrome steel construction. The nylon cage reduces friction, making it suitable for high-speed rotations.

For automation equipment, 2302-2RSTN Bearing provides reliable performance in robotic arms and assembly lines. Its open seal design allows for easy lubrication, extending service life in continuous operations.

Where Is 2302-2RSTN Bearing Used?
You’ll often find 2302-2RSTN Bearing in industrial fans, where its self-aligning capability handles shaft deflections. The metric sizing makes it a versatile choice for various machinery.

In household appliances like washing machines, 2302-2RSTN Bearing ensures quiet and efficient operation. The lubricated design reduces maintenance needs, ideal for long-term use.

Built for Heavy-Duty Use: 2302-2RSTN Bearing
2302-2RSTN Bearing excels in construction equipment, handling rough conditions with ease. The chrome steel rings and balls offer excellent wear resistance.

In agricultural machinery, 2302-2RSTN Bearing withstands dust and debris while maintaining performance. The CN radial clearance provides a balance between precision and durability.
