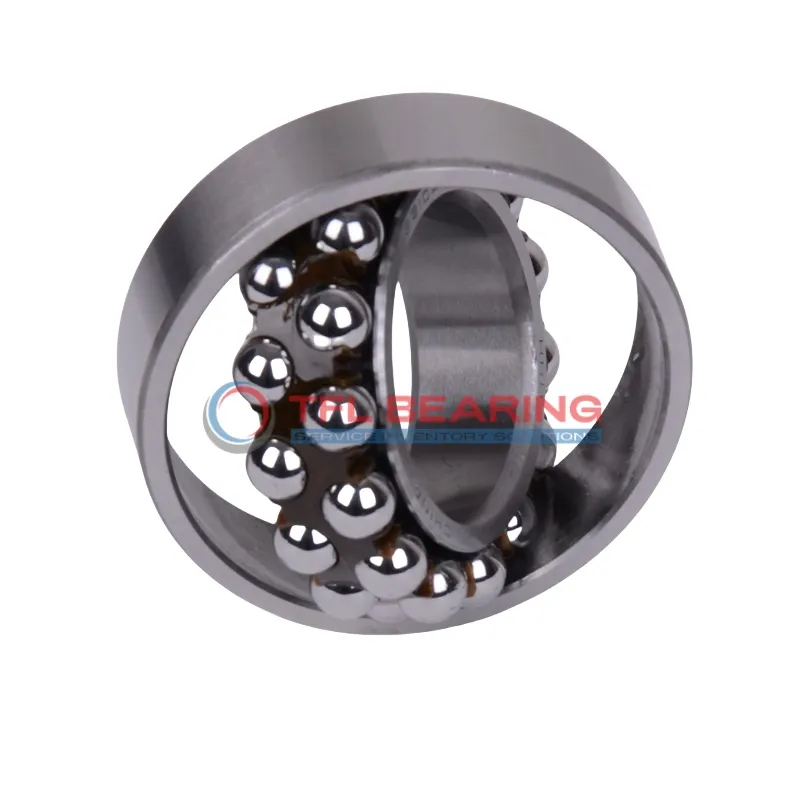

Self Aligning Ball Bearings 1312 C/3

Self Aligning Ball Bearings 1312 C/3

The 1312 C/3 is a self-aligning ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. Its double-row design handles radial loads up to 13162 lbf and runs smoothly at speeds up to 6300 RPM.

The open seal type allows for easy lubrication, while the nylon cage reduces friction for quieter operation. It operates well in temperatures from -30°C to 110°C, making it versatile for various conditions.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 1.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1312 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 91.61 mm
  • Internal Diameter On Outer Ring 116.7 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 13162 lbf
  • Static Radial Load 4950 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1.9 kg
  • Price（$） 89.57
Self Aligning Ball Bearings 1312 C/3 dimension drawing
Download DWG Download PDF

Features

How Does 1312 C/3 Bearing Reduce Friction?

1312 C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
With a dynamic radial load capacity of 13162 lbf, it handles demanding applications effortlessly.
Its maximum speed of 6300 rpm makes it suitable for high-performance machinery.

Application

Industrial Uses of 1312 C/3 Bearing
1312 C/3 Bearing is commonly used in industrial machinery, such as conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for heavy-duty applications.

Where Is 1312 C/3 Bearing Used?
In automotive applications, 1312 C/3 Bearing can be found in gearboxes and wheel hubs, where its durability and smooth operation are essential. The metric sizing ensures compatibility with a variety of vehicle models.

Built for Heavy-Duty Use: 1312 C/3 Bearing
1312 C/3 Bearing excels in construction equipment, such as cranes and excavators, thanks to its robust chrome steel construction. The nylon cage reduces friction, enhancing its lifespan in demanding environments.

Medical vs Industrial: Where 1312 C/3 Bearing Excels
While 1312 C/3 Bearing is versatile enough for industrial use, its precision also makes it suitable for medical imaging devices. The consistent performance and low maintenance requirements are key advantages in both fields.
