Snap Ring Groove Ball Bearings 6008-2RS1NR

Snap Ring Groove Ball Bearings 6008-2RS1NR

The 6008-2RS1NR is a sealed snap ring groove ball bearing with a 40mm bore and 68mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3754 lbf and operates smoothly at speeds up to 10,000 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The snap ring on the outer ring ensures secure fitting, making installation straightforward.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for applications like electric motors or pumps where radial loads and secure mounting are key. Weighing 192g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6008-2RS1NR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 74.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3754 lbf
  • Static Radial Load 2585 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 192 g
  • Price（$） 15.44

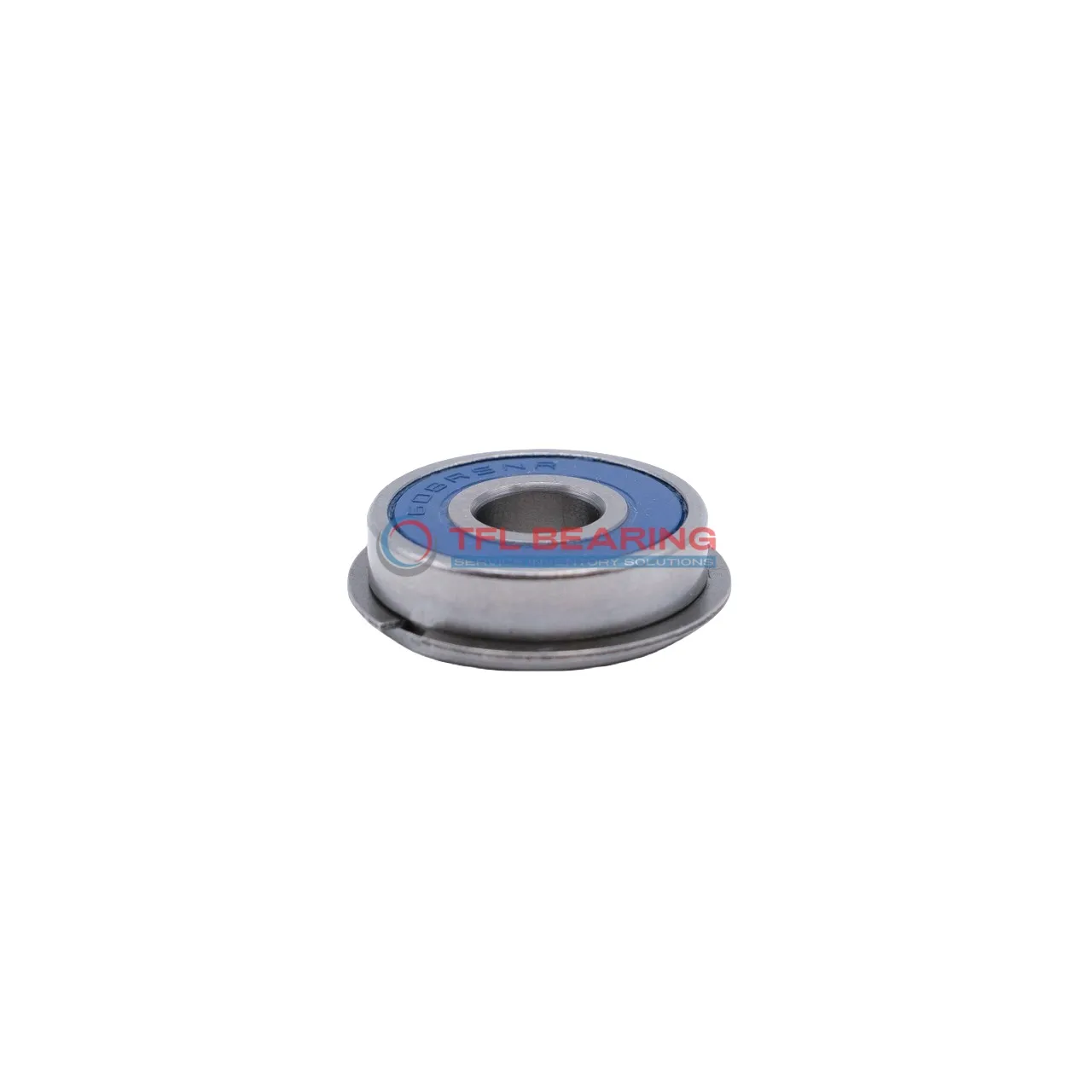

Snap Ring Groove Ball Bearings 6008-2RS1NR dimension drawing
Download DWG Download PDF

Features

How Does 6008-2RS1NR Bearing Reduce Friction?

6008-2RS1NR Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.

Its sealed design keeps contaminants out, maintaining consistent performance over time.

The snap ring groove on the outer ring provides secure mounting, reducing vibration and wear.

With a maximum speed of 10,000 rpm, it offers reliable efficiency in various applications.

Application

Industrial Uses of 6008-2RS1NR Bearing
6008-2RS1NR Bearing is commonly used in conveyor systems and industrial fans, where its sealed design protects against dust and debris. The snap ring feature ensures secure mounting, reducing maintenance needs in continuous operation environments.

Where Is 6008-2RS1NR Bearing Used?
In automotive applications, 6008-2RS1NR Bearing fits well in electric motors and pumps, thanks to its radial load capacity and sealed construction. The chrome steel materials provide durability, even in high-temperature conditions.

Perfect Fit for Automation: 6008-2RS1NR Bearing
6008-2RS1NR Bearing works smoothly in robotic arms and automated assembly lines, where precision and reliability are key. Its snap ring design simplifies installation, saving time during equipment setup.

Medical vs Industrial: Where 6008-2RS1NR Bearing Excels
While 6008-2RS1NR Bearing handles industrial machinery well, it also suits medical devices like lab equipment, where consistent performance matters. The sealed construction keeps contaminants out, ensuring long service life.

Key Fields for 6008-2RS1NR Bearing
6008-2RS1NR Bearing is a go-to choice for household appliances like washing machines, offering quiet and efficient operation. Its metric sizing makes it compatible with a wide range of consumer products.
