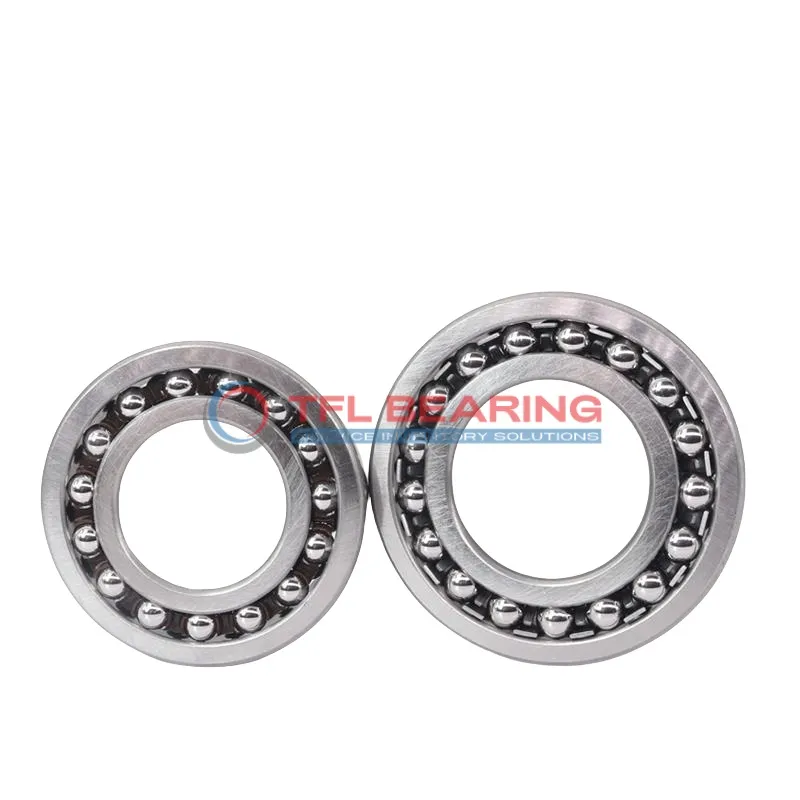

Self Aligning Ball Bearings 1217

Self Aligning Ball Bearings 1217

The 1217 is a self-aligning ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 10980 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design allows for slight misalignment, reducing stress on the bearing. The open seal type makes lubrication straightforward, while the stainless steel cage ensures reliable performance.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for machinery where alignment flexibility is needed, such as conveyor systems or agricultural equipment.

Weighing 2.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1217
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 107 mm
  • Internal Diameter On Outer Ring 131 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 10980 lbf
  • Static Radial Load 4680 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 2.05 kg
  • Price（$） 50.5
Self Aligning Ball Bearings 1217 dimension drawing
Download DWG Download PDF

Features

How Does 1217 Bearing Reduce Friction?

1217 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth operation under radial loads.
Its dynamic radial load capacity of 10,980 lbf makes it suitable for heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and wear over time.
With a maximum speed of 5,600 rpm, it offers reliable performance in various conditions.

1217 Bearing’s open design allows for easy lubrication, enhancing its longevity.
It operates efficiently within a temperature range of -30° to 110°C, adapting to different environments.

Application

Industrial Uses of 1217 Bearing
The 1217 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles radial loads efficiently. Its open seal type allows for easy lubrication, extending service life in demanding environments.

In automotive applications, 1217 Bearing fits well in gearboxes and wheel hubs, providing smooth rotation under varying loads. The chrome steel construction ensures durability, even in high-temperature conditions.

For automation equipment, 1217 Bearing’s self-aligning feature compensates for minor misalignments in robotic arms or assembly lines. This makes it a reliable choice for maintaining precision in dynamic setups.

Medical imaging devices also benefit from 1217 Bearing’s stable performance, thanks to its stainless steel cage reducing friction. Its metric sizing ensures compatibility with European-designed equipment.

Around the home, 1217 Bearing can be found in large appliances like washing machines, where its load capacity supports heavy drums. The lubricated design keeps operation quiet and efficient over time.
