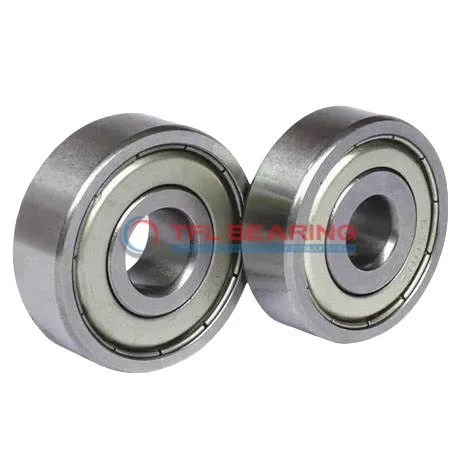

Single Row Deep Groove Ball Bearings 6202-Z TN9

Single Row Deep Groove Ball Bearings 6202-Z TN9

The 6202-Z TN9 is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 11mm, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its shielded design keeps out dust and debris, while the nylon cage reduces friction for quieter operation. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or small machinery where space is limited.

Weighing just 45g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-Z TN9
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
  • price（$） 1.98
Single Row Deep Groove Ball Bearings 6202-Z TN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 6202-Z TN9 Bearing for Precision Tasks?

6202-Z TN9 Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1812 lbf, it handles demanding tasks with ease.
The nylon cage reduces friction and noise, making it ideal for precision instruments.

Operating within a temperature range of -30°C to 120°C, 6202-Z TN9 Bearing performs reliably in various environments.
Its ABEC 1 tolerance class ensures consistent performance for everyday applications.

The compact size of 15 mm×35 mm×11 mm makes it suitable for space-constrained installations.
Weighing just 45 g, it offers a balance of strength and lightweight design.

Application

Industrial Uses of 6202-Z TN9 Bearing
6202-Z TN9 Bearing is commonly used in conveyor systems and small electric motors, where its shielded design helps keep out dust and debris. The nylon cage reduces friction, making it suitable for continuous operation.

What Makes 6202-Z TN9 Bearing a Preferred Choice?
In household appliances like washing machines, 6202-Z TN9 Bearing ensures quiet and smooth rotation. Its compact size and radial load capacity make it ideal for tight spaces.

Built for Heavy-Duty Use: 6202-Z TN9 Bearing
This bearing handles radial loads well in power tools, providing reliable performance under stress. The chrome steel construction offers durability for long-term use.

Automotive vs Industrial: Applications of 6202-Z TN9 Bearing
In automotive alternators, 6202-Z TN9 Bearing supports high-speed rotation with minimal maintenance. Its ABEC 1 tolerance ensures consistent performance in various conditions.

Perfect Fit for Automation: 6202-Z TN9 Bearing
For robotic arms and small automation systems, 6202-Z TN9 Bearing delivers precise movement. The temperature range allows it to work in diverse environments.
