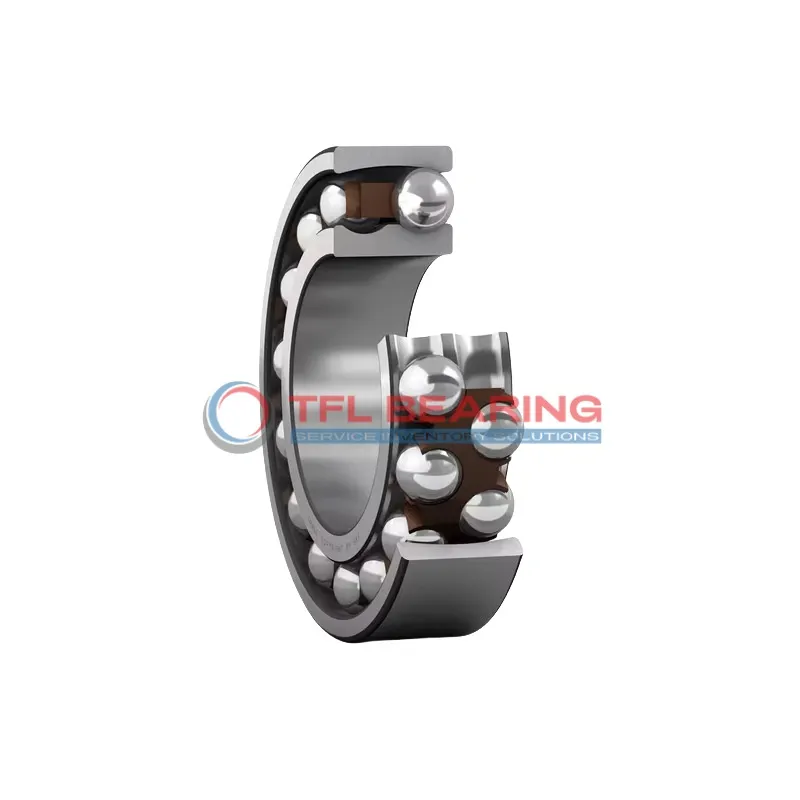

Self Aligning Ball Bearings 11212 TN9

Brand: TFL Bearing Interchangeable: SKF 11212 TN9 60 mm × 110 mm × 62 mm Metric Open
Part number: 11212 TN9
Self Aligning Ball Bearings 11212 TN9
In Stock
US$36.06 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia60 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.015mm to 0
Width62 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring78 mm
Internal Diameter On Outer Ring95.6 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load7,020 lbf
Static Radial Load2,745 lbf
Temperature Range-30° to 110 °C
Max Speed3,400 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Weight1.15 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 11212 TN9 is a self-aligning ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and operates smoothly at speeds up to 3400 RPM.

Its double-row design and nylon cage help reduce friction, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.15kg, it offers a balance of strength and durability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Does 11212 TN9 Bearing Reduce Friction?

11212 TN9 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The double-row design distributes radial loads evenly, enhancing performance and durability.

Its nylon cage maintains ball alignment, reducing wear and extending service life.
With a dynamic radial load capacity of 7020 lbf, it handles demanding applications reliably.

The open seal type allows for easy lubrication, keeping maintenance simple.
11212 TN9 Bearing operates efficiently within a temperature range of -30° to 110°C.

Application

Industrial Uses of 11212 TN9 Bearing
11212 TN9 Bearing is commonly used in industrial settings, especially in machinery where misalignment can occur, such as conveyor systems and textile equipment. Its double-row design helps accommodate slight shaft deflections, ensuring smooth operation.

In automotive applications, 11212 TN9 Bearing is found in components like wheel hubs and transmissions, where its radial load capacity and durability are key. The nylon cage reduces friction, making it suitable for high-speed rotations.

For automation systems, 11212 TN9 Bearing supports robotic arms and assembly line equipment, thanks to its self-aligning feature. The chrome steel construction ensures long-lasting performance even in demanding environments.

Where to Use 11212 TN9 Bearing
11212 TN9 Bearing fits well in heavy-duty fans and blowers, where its ability to handle radial loads and misalignment is beneficial. The lubricated design also minimises maintenance needs.

In printing machinery, 11212 TN9 Bearing provides reliable performance, with its open seal allowing for easy lubrication. The metric sizing ensures compatibility with a wide range of European-made equipment.
