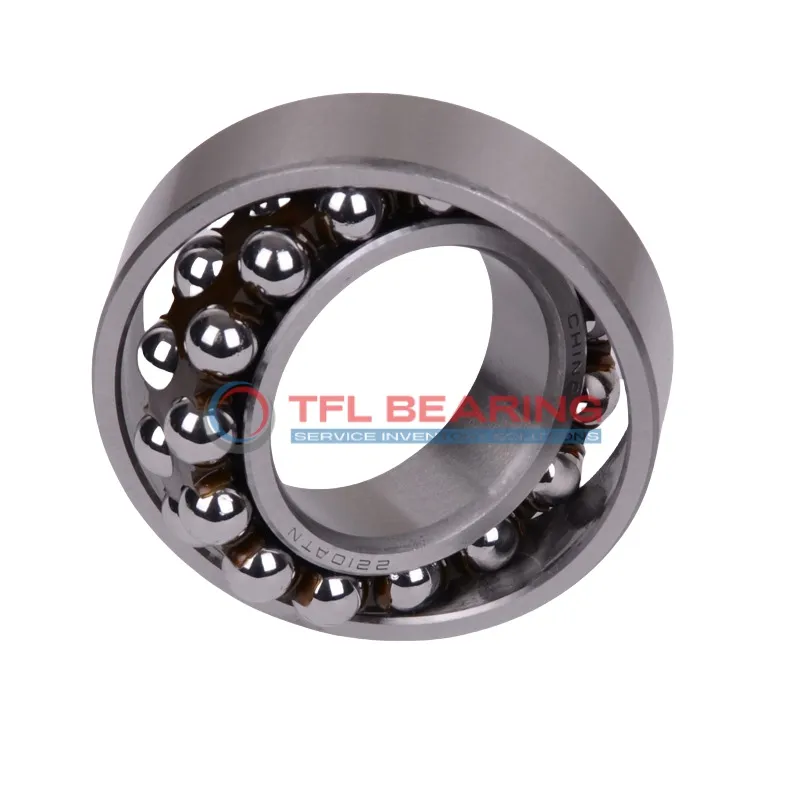

Self Aligning Ball Bearings 11207-TVH

Brand: TFL Bearing Interchangeable: SKF 11207-TVH 35 mm × 72 mm × 52 mm Metric Open
Part number: 11207-TVH
Self Aligning Ball Bearings 11207-TVH
In Stock
US$39.02 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia72 mm
Outer Dia Tolerance-0.013mm to 0
Width52 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring47 mm
Internal Diameter On Outer Ring60.9 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load4,275 lbf
Static Radial Load1,350 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.54 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 11207-TVH is a self-aligning ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4275 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and open seal allow for easy alignment and maintenance, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.54kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe use.

Features

How Does 11207-TVH Bearing Reduce Friction?

11207-TVH Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction and wear, contributing to quieter operation and longer service life.

With a dynamic radial load capacity of 4275 lbf, it handles demanding applications efficiently.
Its maximum speed of 5,600 rpm makes it suitable for various industrial uses.

The open seal design allows for easy lubrication, maintaining optimal performance.
11207-TVH Bearing operates reliably in temperatures ranging from -30° to 110°C.

Application

Industrial Uses of 11207-TVH Bearing
11207-TVH Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature helps compensate for minor misalignments. The double-row design provides stable radial load support, making it suitable for continuous operation.

What Makes 11207-TVH Bearing a Preferred Choice?
In automotive applications, 11207-TVH Bearing is often found in gearboxes and wheel hubs, thanks to its ability to handle radial loads efficiently. The chrome steel construction ensures durability even under demanding conditions.

Perfect Fit for Automation: 11207-TVH Bearing
For robotics and automation, 11207-TVH Bearing offers smooth performance in robotic arms and assembly lines. Its nylon cage reduces friction, enhancing operational efficiency in high-speed scenarios.

Medical vs Industrial: Where 11207-TVH Bearing Excels
In medical devices like imaging equipment, 11207-TVH Bearing provides reliable performance with minimal maintenance. Meanwhile, in industrial settings, it excels in heavy machinery due to its robust design and load capacity.
