Self Aligning Ball Bearings 11212

Self Aligning Ball Bearings 11212

The 11212 is a self-aligning ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 7020 lbf and operates smoothly at speeds up to 3400 RPM.

Its double-row design and open seal make it versatile for various applications, while the nylon cage reduces friction and noise. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for machinery where misalignment or radial loads are common, such as conveyor systems or agricultural equipment.

Weighing 1.15kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 11212
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 62 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 78 mm
  • Internal Diameter On Outer Ring 95.6 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7020 lbf
  • Static Radial Load 2745 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3400 rpm
  • Weight 1.15 kg
  • Price（$） 186.34

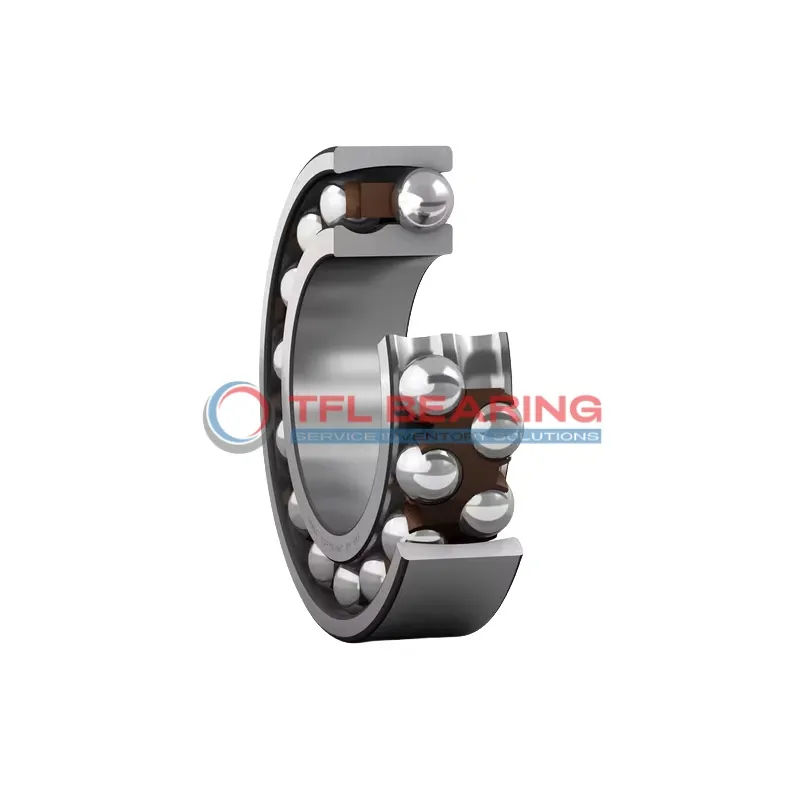

Self Aligning Ball Bearings 11212 dimension drawing
Download DWG Download PDF

Features

Why Choose 11212 Bearing for Precision Tasks?

11212 Bearing features a double-row ball design, ensuring smooth radial load distribution for precise operations.
Its chrome steel rings and balls provide durability, while the nylon cage reduces friction and noise.
With a dynamic radial load capacity of 7020 lbf, it handles demanding applications reliably.
The self-aligning design accommodates minor misalignments, maintaining performance over time.

Application

Industrial Uses of 11212 Bearing
11212 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides reliable radial load support, ensuring smooth operation in demanding environments.

Where Is 11212 Bearing Used?
In automotive applications, 11212 Bearing fits well in gearboxes and wheel hubs, thanks to its cylindrical bore and metric sizing. Its nylon cage reduces friction, making it a quiet and efficient choice for vehicle components.

Built for Heavy-Duty Use: 11212 Bearing
11212 Bearing excels in construction equipment, handling radial loads in cranes and excavators with ease. The chrome steel construction offers durability, while the lubricated design ensures long service life even under tough conditions.

Automotive vs Industrial: Applications of 11212 Bearing
11212 Bearing works equally well in both automotive and industrial settings, from truck transmissions to paper mill rollers. Its versatility comes from the ability to handle misalignment and radial loads without compromising performance.

Perfect Fit for Automation: 11212 Bearing
In robotic arms and automated production lines, 11212 Bearing provides precise movement with minimal maintenance. The open seal type allows for easy relubrication, keeping operations running smoothly over time.
