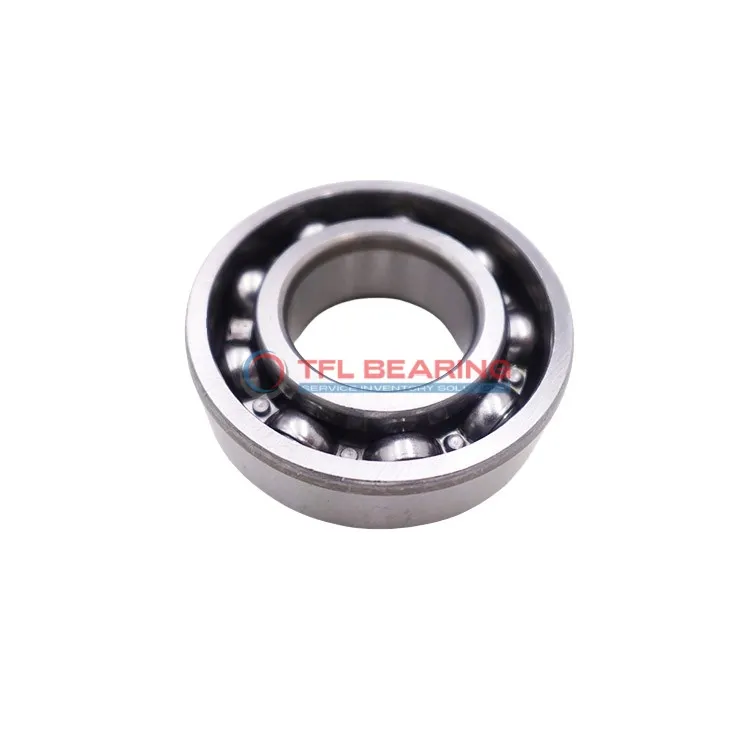

Single Row Deep Groove Ball Bearings RMS 14

Single Row Deep Groove Ball Bearings RMS 14

The RMS 14 is a single-row deep groove ball bearing with a 1.75″ bore and 4.25″ outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13893 lbf and operates smoothly at speeds up to 8500 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1.1kg, it’s a robust option for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RMS 14
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 1.75"
  • Bore Dia Tolerance -0.00031" to 0.00019"
  • Outer Dia 4.25"
  • Outer Dia Tolerance -0.00129" to -0.00078"
  • Width 1.06252"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 13893 lbf
  • Static Radial Load 8543 lbf
  • Max Speed 8500 rpm
  • Weight 1.1 kg
Single Row Deep Groove Ball Bearings RMS 14 dimension drawing
Download DWG Download PDF

Features

Performance Features of RMS 14 Bearing

RMS 14 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13893 lbf, making it suitable for demanding applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 8,500 rpm, it delivers reliable performance in various conditions.

RMS 14 Bearing operates efficiently within a temperature range of -30° to 120°C.
Its open design allows for easy maintenance and lubrication, ensuring long service life.

The precision-engineered construction of RMS 14 Bearing meets P6 tolerance standards.
This ensures consistent performance and reliability in industrial applications.

Application

Common Applications of RMS 14 Bearing
RMS 14 Bearing is widely used in industrial equipment, especially in machinery that requires smooth radial load support, such as pumps and electric motors. Its open design and chrome steel construction make it durable for continuous operation.

In automotive applications, RMS 14 Bearing fits well in components like alternators and water pumps, where its inch sizing aligns with many American vehicle standards. The P6 tolerance ensures reliable performance under varying loads.

For automation systems, RMS 14 Bearing works efficiently in robotic arms and conveyor belts, thanks to its high-speed capability and stainless steel cage. The consistent performance makes it a trusted choice for repetitive motion tasks.

In household appliances like washing machines, RMS 14 Bearing provides quiet and long-lasting operation. Its temperature range allows it to handle both hot and cold environments without losing efficiency.
