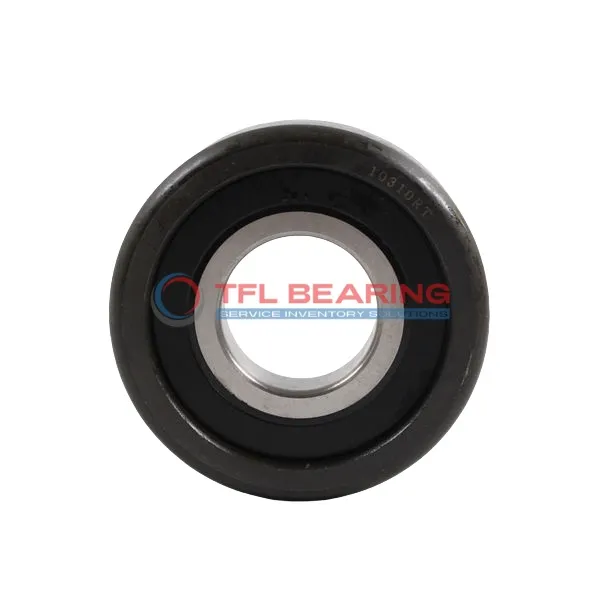

Mast Guide Bearings MG 28mm‑J6

Mast Guide Bearings MG 28mm‑J6

The MG 28mm-J6 is a mast guide bearing with a 28mm inner diameter and 81.5mm outer diameter, crafted for sturdy performance. Its compact design measures 24mm in width, making it suitable for tight spaces.

With a dynamic load capacity of 27,400 N, it handles heavy loads smoothly, while the static capacity of 14,000 N ensures reliability. The 5mm radius adds durability, reducing stress on the bearing.

The bearing weighs just 0.61kg, offering a balance of strength and lightness. Ideal for mast guidance systems or industrial machinery where precision and load handling are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 28mm‑J6
  • Brand TFL & OEM
  • Inner Diameter (d) 28.000 mm
  • Outer Diameter (D) 81.50 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 24.000 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 27,400 N
  • Static Capacity (Cor.) 14,000 N
  • Weight 0.6123 Kg
Mast Guide Bearings MG 28mm‑J6 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 28mm‑J6 Bearing

MG 28mm‑J6 Bearing is built with precise dimensions of 28.000 mm x 81.50 mm x 24.000 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 27,400 N allows it to handle significant loads with ease.

The bearing’s static capacity of 14,000 N ensures stability even under heavy pressure.
With a weight of 0.6123 Kg, it offers a balance between strength and portability.

The 5 mm radius design reduces stress concentrations, enhancing durability.
MG 28mm‑J6 Bearing is ideal for applications requiring reliable performance and long service life.

Application

Industrial Uses of MG 28mm‑J6 Bearing
MG 28mm‑J6 Bearing is commonly used in construction equipment, such as mast guide systems for forklifts, where its robust design handles heavy vertical loads. The 28mm bore size ensures a secure fit for precise alignment in demanding environments.

Where Is MG 28mm‑J6 Bearing Used?
You’ll often spot MG 28mm‑J6 Bearing in material handling systems, like conveyor belts, thanks to its high dynamic capacity of 27,400 N. Its 81.50mm outer diameter provides stability, making it suitable for repetitive motion applications.

Built for Heavy-Duty Use: MG 28mm‑J6 Bearing
MG 28mm‑J6 Bearing excels in agricultural machinery, such as grain elevators, where its 14,000 N static load capacity ensures reliability. The 5mm radius design also reduces stress concentrations, prolonging service life.

Automotive vs Aerospace: Applications of MG 28mm‑J6 Bearing
In automotive lifts, MG 28mm‑J6 Bearing supports smooth vertical movement, while its precision sizing makes it adaptable for aerospace ground equipment. The stainless steel construction resists corrosion in both environments.

Perfect Fit for Automation: MG 28mm‑J6 Bearing
MG 28mm‑J6 Bearing is a go-to choice for robotic assembly lines, where its 24mm outer ring width ensures compact integration. The 0.6123 Kg weight balances durability without adding unnecessary bulk to moving parts.
