Single Row Deep Groove Ball Bearings 6215 M/C4VL0241

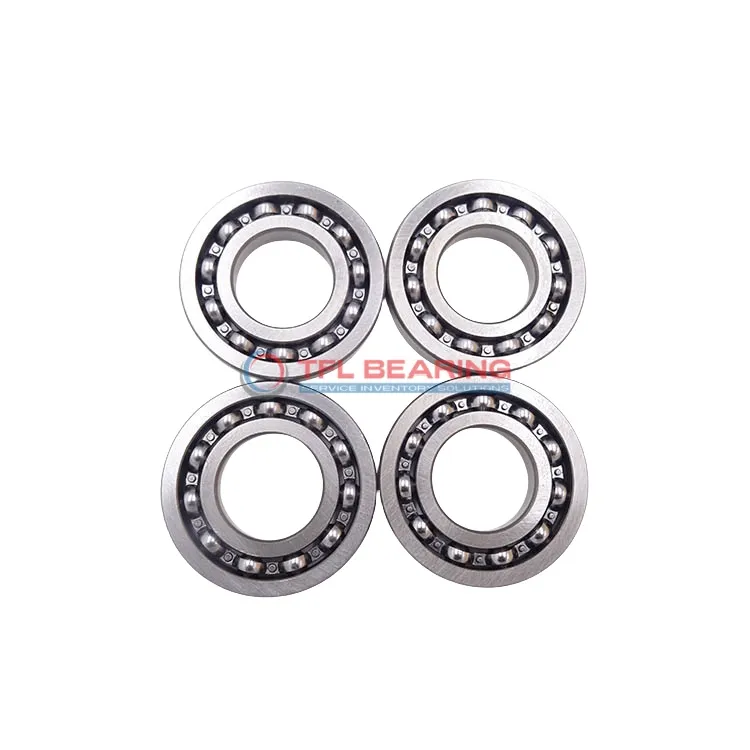

Single Row Deep Groove Ball Bearings 6215 M/C4VL0241

The 6215 M/C4VL0241 is a single-row deep groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 15489 lbf and operates smoothly at speeds up to 9500 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.4kg, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215 M/C4VL0241
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 15489 lbf
  • Static Radial Load 11016 lbf
  • Max Speed 9500 rpm
  • Weight 1.4 kg
  • price（$） 120.51
Single Row Deep Groove Ball Bearings 6215 M/C4VL0241 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6215 M/C4VL0241 Bearing

6215 M/C4VL0241 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 15489 lbf.
Its machined metal cage ensures precise ball alignment, enhancing durability and smooth operation.
The C4 radial clearance allows for thermal expansion, making it suitable for varying operating conditions.
With a maximum speed of 9,500 rpm, it delivers reliable performance in a wide temperature range from -30° to 120°C.

Application

Industrial Uses of 6215 M/C4VL0241 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 6215 M/C4VL0241 Bearing fits well in wheel hubs and transmissions, providing smooth rotation under heavy loads. Its C4 clearance ensures reliable performance even with thermal expansion in high-speed scenarios.

For automation systems, 6215 M/C4VL0241 Bearing supports robotic arms and conveyor belts, thanks to its durable chrome steel construction. The machined metal cage adds stability, making it suitable for precision movements.

What Makes 6215 M/C4VL0241 Bearing a Preferred Choice?
Its versatility shines in household appliances like washing machines, where quiet operation and durability are key. The metric sizing ensures compatibility with a wide range of European-designed equipment.

Built for Heavy-Duty Use: 6215 M/C4VL0241 Bearing
In agricultural machinery, this bearing withstands dusty environments while maintaining performance. The ABEC 1 tolerance balances cost and precision for farm equipment applications.
