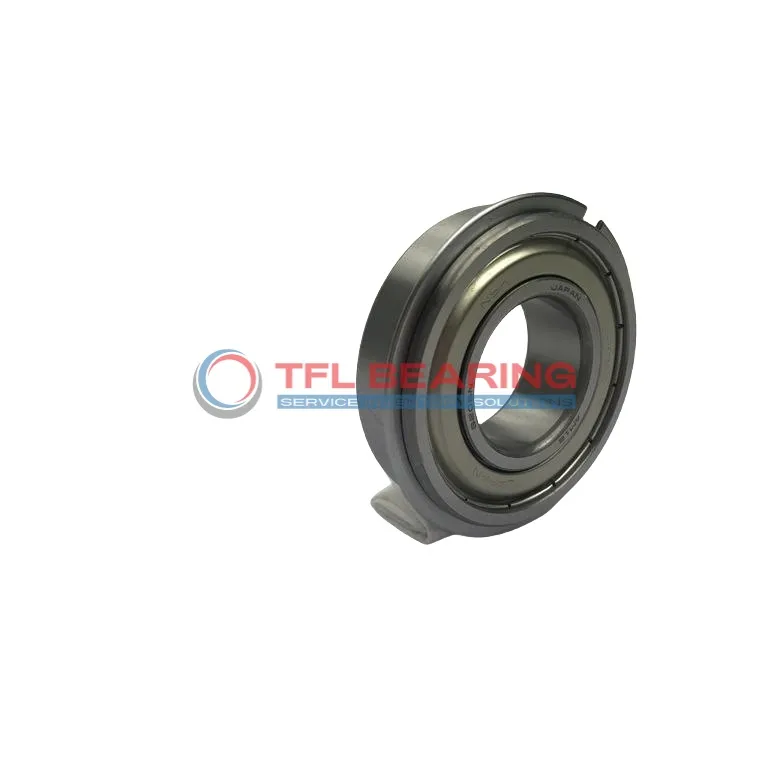

Snap Ring Groove Ball Bearings 6314-ZNR/C3

Snap Ring Groove Ball Bearings 6314-ZNR/C3

The 6314-ZNR/C3 is a shielded ball bearing with a 70mm bore and 150mm outer diameter, designed for radial loads. It handles dynamic loads up to 2338 lbf and operates smoothly at speeds up to 4500 RPM.

Made from durable chrome steel, it features a snap ring groove on the outer ring for secure mounting. The C3 radial clearance allows for slight thermal expansion, making it suitable for varying temperatures.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where radial load support is needed.

Weighing 2530g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6314-ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 159.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 15332 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4500 rpm
  • Weight 2530 g
  • Price（$） 64.8
Snap Ring Groove Ball Bearings 6314-ZNR/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6314-ZNR/C3 Bearing

6314-ZNR/C3 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2338 lbf, ensuring reliable performance in various applications.
The shielded design protects against contaminants, while the snap ring groove provides secure mounting.
With a maximum speed of 4,500 rpm, it balances durability and efficiency in demanding conditions.

Why Choose 6314-ZNR/C3 Bearing for Precision Tasks?

6314-ZNR/C3 Bearing features a C3 radial clearance, allowing for precise operation under varying temperatures.
The chrome steel construction ensures long-lasting performance, even in high-load scenarios.
Its snap ring groove simplifies installation, reducing downtime and maintenance efforts.
With a temperature range of -30° to 120°C, it adapts well to diverse working environments.

Engineered for Reliability: 6314-ZNR/C3 Bearing

6314-ZNR/C3 Bearing’s single-row design provides consistent performance under radial loads.
The shielded seal keeps out dust and debris, extending the bearing’s service life.
Its ABEC 1 tolerance class ensures smooth operation, ideal for general industrial use.
Weighing 2530 g, it offers a robust yet manageable solution for heavy-duty applications.

Steel vs Ceramic Bearings: Strengths of 6314-ZNR/C3 Bearing

6314-ZNR/C3 Bearing uses chrome steel for all components, ensuring cost-effective durability.
The material choice provides excellent resistance to wear, even under high static radial loads of 15332 lbf.
Its shielded design offers better contamination protection compared to open bearings.
With a snap ring groove, it provides secure positioning without additional components.

Application

Common Applications of 6314-ZNR/C3 Bearing
The 6314-ZNR/C3 Bearing is widely used in industrial machinery, such as conveyor systems and electric motors, where its shielded design helps protect against dust and debris.

Its snap ring feature makes installation and positioning easier, particularly in applications where space is limited. The C3 radial clearance also allows for better thermal expansion handling.

In automotive applications, 6314-ZNR/C3 Bearing can be found in gearboxes and wheel hubs, providing reliable performance under radial loads. The chrome steel construction ensures durability even in demanding conditions.

For automation equipment, this bearing supports smooth operation in robotic arms and assembly lines. Its metric sizing and ABEC 1 tolerance make it compatible with a variety of machinery standards.
