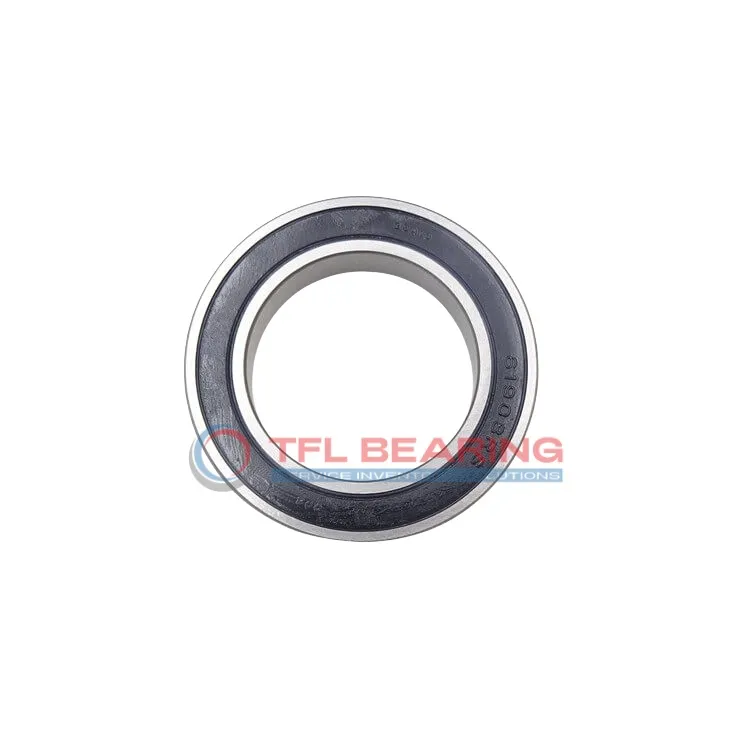

Stainless Steel Deep Groove Ball Bearings W 61807-2RZ

Stainless Steel Deep Groove Ball Bearings W 61807-2RZ

The W 61807-2RZ is a compact stainless steel deep groove ball bearing, measuring 35mm by 47mm by 7mm. It’s designed for radial loads up to 834 lbf and can handle speeds up to 15,000 RPM, making it a versatile choice for various applications.

With its sealed design, this bearing keeps out dust and moisture, reducing maintenance needs. The all-stainless steel construction ensures corrosion resistance and durability, even in harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s pre-lubricated with grease for smooth operation right out of the box.

Ideal for small machinery, medical equipment, or food processing where hygiene and reliability are key. It operates in temperatures from -30°C to 120°C and complies with RoHS and REACH standards. Weighing just 0.03kg, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61807-2RZ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 834 lbf
  • Static Radial Load 753 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.03 kg
Stainless Steel Deep Groove Ball Bearings W 61807-2RZ dimension drawing
Download DWG Download PDF

Features

How Is W 61807-2RZ Bearing Engineered for Reliability?

W 61807-2RZ Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.
The single-row construction provides reliable radial load support, with a dynamic load capacity of 834 lbf.
With a maximum speed of 15,000 rpm, it delivers consistent performance for high-speed applications.

Application

Industrial Uses of W 61807-2RZ Bearing
W 61807-2RZ Bearing is commonly used in industrial machinery like pumps and compressors, where its sealed design keeps contaminants out. The stainless steel construction ensures long-lasting performance even in harsh environments.

What Makes W 61807-2RZ Bearing a Preferred Choice?
In automotive applications, W 61807-2RZ Bearing works well in electric motors and small gearboxes due to its compact size and radial load capacity. The grease lubrication reduces maintenance needs, making it a reliable option.

Perfect Fit for Automation: W 61807-2RZ Bearing
For automated systems, W 61807-2RZ Bearing is ideal for robotic arms and conveyor belts, offering smooth movement with minimal friction. Its metric sizing ensures compatibility with various European machinery standards.

Medical vs Industrial: Where W 61807-2RZ Bearing Excels
In medical devices, W 61807-2RZ Bearing provides quiet operation for equipment like dental drills, while its industrial strength suits food processing machinery. The temperature range allows for versatile use across different sectors.
