Snap Ring Groove Ball Bearings 6215NR JEM

Snap Ring Groove Ball Bearings 6215NR JEM

The 6215NR JEM is a snap ring groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 15152 lbf and operates smoothly at speeds up to 4800 RPM.

Its single-row design with an open seal ensures easy maintenance, while the snap ring feature keeps it securely in place. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads and secure positioning are key.

With a compact width of 25mm and a snap ring outside diameter of 139.7mm, it fits neatly into tight spaces while offering robust performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215NR JEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015 mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018 mm to 0
  • Width 25 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 139.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 15152 lbf
  • Static Radial Load 10858 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Price（$） 30.8

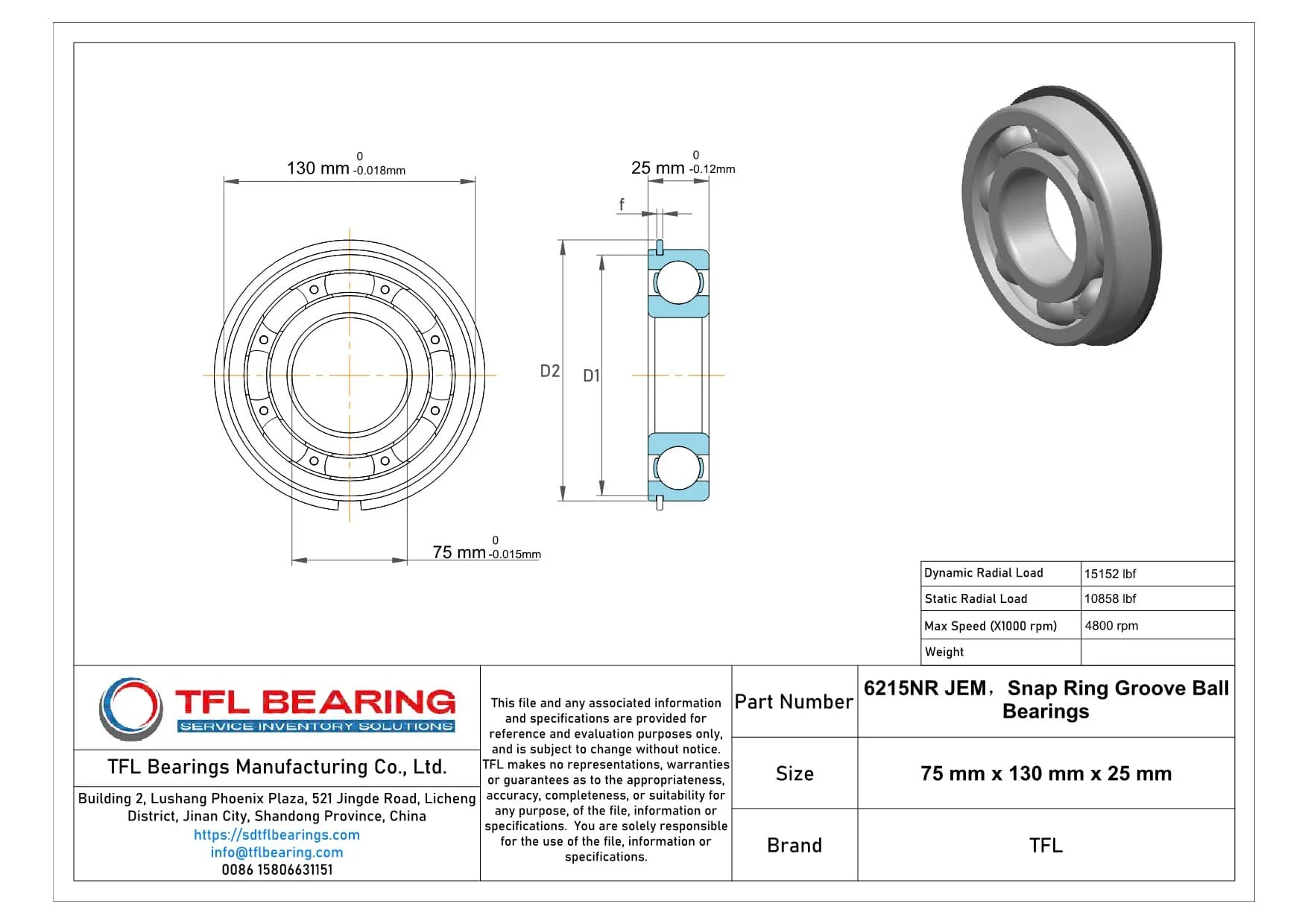

Snap Ring Groove Ball Bearings 6215NR JEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6215NR JEM Bearing for Precision Tasks?

6215NR JEM Bearing features a snap ring groove design, ensuring secure outer ring positioning for precise radial load handling.
The chrome steel construction enhances durability, supporting dynamic radial loads up to 15152 lbf.

Its ABEC 1 tolerance class guarantees consistent performance in standard applications.
With a maximum speed of 4,800 rpm, it balances efficiency and reliability.

The open seal type allows for easy lubrication, adapting to various operating conditions.
Its temperature range of -30°C to 120°C ensures stable performance in diverse environments.

The snap ring fitted design simplifies installation, reducing setup time.
6215NR JEM Bearing’s robust build makes it suitable for long-term use with minimal maintenance.

Application

Industrial Uses of 6215NR JEM Bearing
The 6215NR JEM Bearing is commonly used in conveyor systems and industrial fans, where its snap ring groove ensures secure mounting. Its open design allows for easy lubrication, making it suitable for high-load environments.

In automotive applications, 6215NR JEM Bearing fits well in gearboxes and wheel hubs, providing reliable radial load support. The chrome steel construction ensures durability even under continuous use.

For automation equipment, 6215NR JEM Bearing is a solid choice for robotic arms and assembly lines. Its snap ring feature simplifies installation, reducing downtime during maintenance.

Where Is 6215NR JEM Bearing Used?
You’ll often find 6215NR JEM Bearing in electric motors and pumps, where its radial load capacity keeps operations smooth. The ABEC 1 tolerance ensures consistent performance in these applications.

Built for Heavy-Duty Use: 6215NR JEM Bearing
The 6215NR JEM Bearing handles tough conditions in construction machinery, thanks to its chrome steel components. Its snap ring design adds extra stability in vibrating environments.

Light-Duty vs Heavy-Duty: Best Uses for 6215NR JEM Bearing
In light-duty settings like office printers, 6215NR JEM Bearing offers quiet operation. For heavy-duty tasks such as agricultural equipment, its robust build ensures long-lasting performance.
