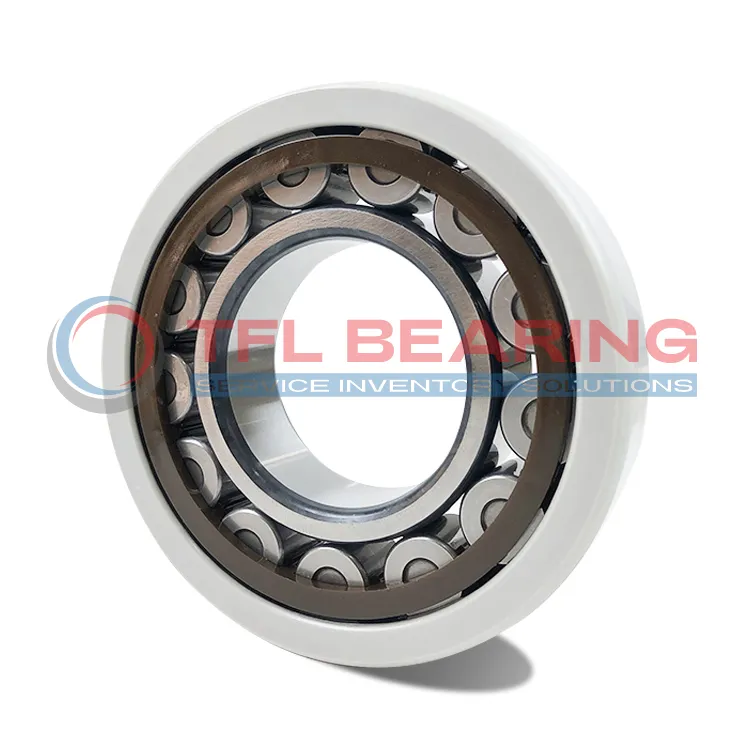

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ320-E-TVP2-F1-J20AA-C4

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ320-E-TVP2-F1-J20AA-C4

The FAG NJ320-E-TVP2-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 100mm bore and 215mm outer diameter, designed to handle high loads and electrical insulation. Its outer ring features a ceramic coating, providing insulation up to 1000V DC and resistance of 50MΩ when dry.

This bearing offers a dynamic load rating of 450 kN and a static load rating of 425 kN, making it suitable for heavy-duty applications. It can reach speeds up to 3350 RPM, ensuring smooth operation in demanding environments.

The plastic molded cage reduces friction and wear, while the C4 radial clearance allows for thermal expansion. It weighs 7.66 kg and complies with RoHS and REACH standards.

Ideal for electric motors or generators where electrical insulation is needed, this bearing ensures reliable performance even in damp conditions. Its robust design makes it a durable choice for industrial machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NJ320-E-TVP2-F1-J20AA-C4
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 100.0 mm
  • Outside Diameter 215.0 mm
  • Width 47.0 mm
  • Net Weight 7.66 kg
  • Basic Dynamic Load Rating 450 kN
  • Basic Static Load Rating 425 kN
  • Reference Speed 3350r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material P - Plastic Molded Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

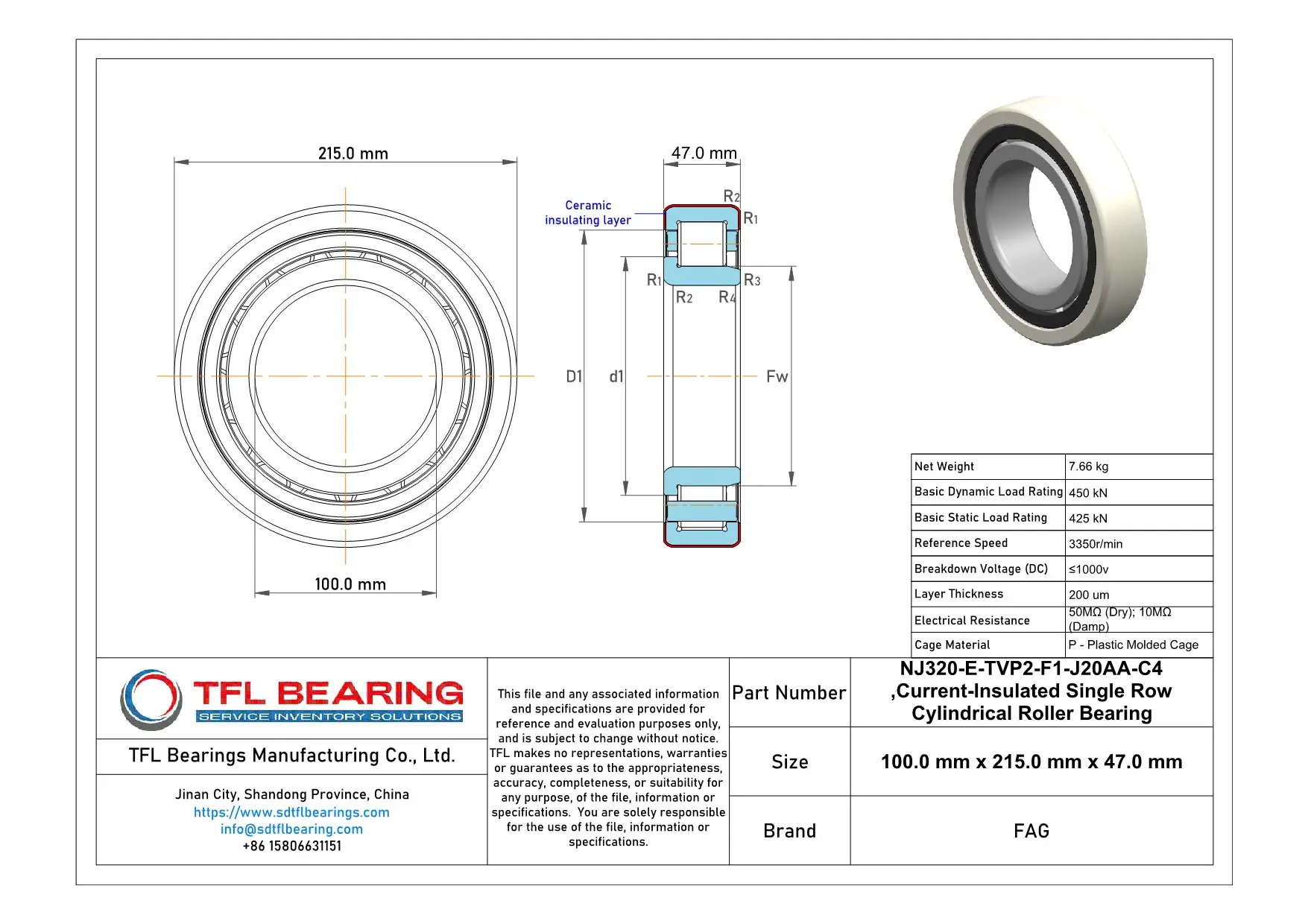

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ320-E-TVP2-F1-J20AA-C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ320-E-TVP2-F1-J20AA-C4 Bearing

NJ320-E-TVP2-F1-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, making it ideal for applications with electrical currents.

The plastic molded cage ensures smooth operation and reduces friction during high-speed rotations.
With a reference speed of 3350r/min, it maintains reliable performance under demanding conditions.

NJ320-E-TVP2-F1-J20AA-C4 Bearing offers a basic dynamic load rating of 450 kN, suitable for heavy-duty applications.
Its C4 radial internal clearance allows for thermal expansion, enhancing durability.

The ceramic coating provides a breakdown voltage of ≤1000v, ensuring safety in electrical environments.
This makes NJ320-E-TVP2-F1-J20AA-C4 Bearing a dependable choice for industrial machinery.

Application

Industrial Uses of NJ320-E-TVP2-F1-J20AA-C4 Bearing
NJ320-E-TVP2-F1-J20AA-C4 Bearing is commonly used in industrial motors and generators, where its current-insulated design prevents electrical arcing. The ceramic coating on the outer ring ensures reliable performance in electrically noisy environments.

In wind turbine applications, NJ320-E-TVP2-F1-J20AA-C4 Bearing handles high radial loads while maintaining electrical insulation. Its plastic cage reduces friction, making it suitable for continuous operation in renewable energy systems.

For railway traction motors, NJ320-E-TVP2-F1-J20AA-C4 Bearing offers durability and electrical protection. The C4 clearance allows for thermal expansion during long-distance runs, ensuring consistent performance.

Where Is NJ320-E-TVP2-F1-J20AA-C4 Bearing Used?
NJ320-E-TVP2-F1-J20AA-C4 Bearing finds its place in electric vehicle drivetrains, where insulation is crucial for safety. Its high dynamic load rating supports the demanding conditions of automotive applications.

In industrial pumps, NJ320-E-TVP2-F1-J20AA-C4 Bearing resists electrical currents that could cause damage. The ceramic coating provides long-lasting protection, even in wet or damp conditions.

Built for Heavy-Duty Use: NJ320-E-TVP2-F1-J20AA-C4 Bearing
NJ320-E-TVP2-F1-J20AA-C4 Bearing excels in steel mill equipment, where both load capacity and electrical insulation are vital. Its robust construction ensures minimal downtime in harsh industrial settings.

For mining machinery, NJ320-E-TVP2-F1-J20AA-C4 Bearing withstands heavy loads and vibrations. The current-insulated feature adds an extra layer of protection in electrically challenging environments.

Automotive vs Aerospace: Applications of NJ320-E-TVP2-F1-J20AA-C4 Bearing
In automotive systems, NJ320-E-TVP2-F1-J20AA-C4 Bearing is used in hybrid vehicle motors, combining load capacity with electrical safety. The plastic cage helps reduce noise for a smoother ride.

For aerospace applications, NJ320-E-TVP2-F1-J20AA-C4 Bearing provides reliable performance in auxiliary power units. Its insulation properties prevent electrical interference in sensitive avionics systems.
