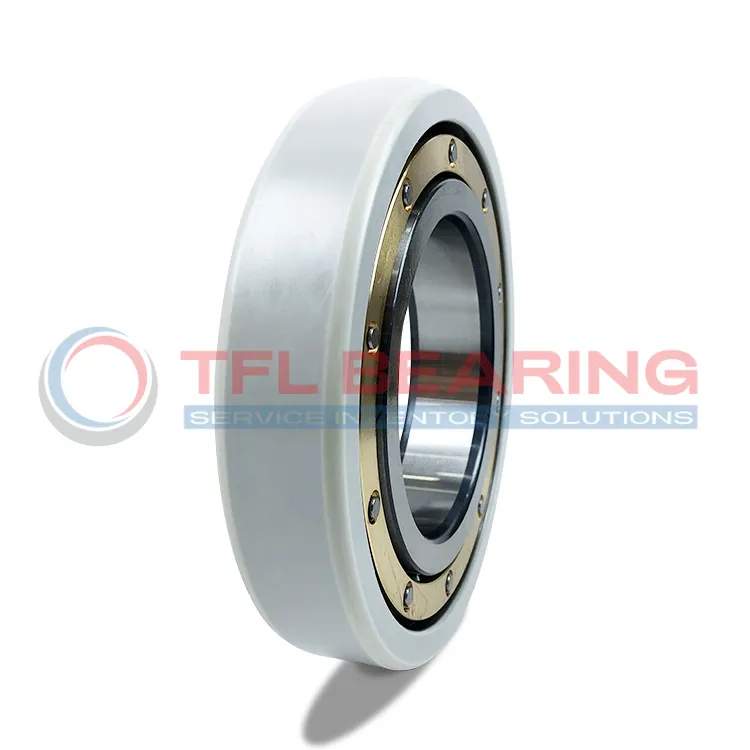

Electrically Insulated Ball Bearings 6336M/C4VL0241

Electrically Insulated Ball Bearings 6336M/C4VL0241

The 6336M/C4VL0241 is an electrically insulated ball bearing with a 180mm bore and 380mm outer diameter, designed to handle both dynamic and static loads efficiently. Its robust construction includes a brass cage and an insulating coating on the outer ring.

This bearing can manage loads up to 355kN dynamically and 405kN statically, with a reference speed of 3000 RPM. The insulation provides a breakdown voltage of 1000-3000V, making it safe for electrical applications.

The C4 radial internal clearance ensures smooth operation under varying conditions. It’s compliant with RoHS and REACH standards, ensuring environmental safety.

Ideal for use in electric motors or generators where electrical insulation is crucial. Weighing 42.4kg, it’s sturdy yet manageable for industrial setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6336M/C4VL0241
  • Product Category Electrically Insulated Ball Bearings
  • Coating Suffix VL0241
  • Insulating Coating Types Insulation coating on outer ring
  • Manufacturers TFL
  • Bore Diameter 180.0 mm
  • Outside Diameter 380.0 mm
  • Width 75.0 mm
  • Net Weight 42.4 kg
  • Basic Dynamic Load Rating 355.0 kN
  • Basic Static Load Rating 405.0 kN
  • Reference Speed 3000 r/min
  • Breakdown Voltage (DC) 1000 ~3000 V
  • Layer Thickness 100~500 µm
  • Electrical Resistance 50~200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant
Electrically Insulated Ball Bearings 6336M/C4VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6336M/C4VL0241 Bearing Engineered for Reliability?

6336M/C4VL0241 Bearing features an insulating coating on the outer ring, preventing electrical current damage.
Its brass cage ensures smooth operation and reduces friction, even at high speeds up to 3000 r/min.
With a basic dynamic load rating of 355.0 kN, it handles heavy loads reliably in demanding applications.
The breakdown voltage of 1000~3000 V makes it suitable for electrically challenging environments.

What Makes 6336M/C4VL0241 Bearing Suitable for High-Temperature Applications?

6336M/C4VL0241 Bearing’s insulation coating withstands high temperatures, maintaining performance in tough conditions.
The brass cage design enhances durability, ensuring long service life under heavy loads.
Its electrical resistance of 50~200 MΩ prevents current leakage, protecting machinery.
With a C4 radial internal clearance, it accommodates thermal expansion effectively.

Designed for Durability: 6336M/C4VL0241 Bearing

6336M/C4VL0241 Bearing’s robust construction includes a brass cage for reduced wear and tear.
The insulation coating on the outer ring ensures protection against electrical damage.
Its high load ratings of 355.0 kN dynamic and 405.0 kN static make it reliable for heavy-duty use.
The reference speed of 3000 r/min allows for efficient operation in various applications.

Steel vs Ceramic Bearings: Strengths of 6336M/C4VL0241 Bearing

6336M/C4VL0241 Bearing uses a brass cage for smooth operation and reduced friction.
Its insulation coating provides protection against electrical currents, unlike standard steel bearings.
With a breakdown voltage of 1000~3000 V, it excels in electrically sensitive environments.
The C4 radial internal clearance ensures reliable performance under thermal stress.

Application

Industrial Uses of 6336M/C4VL0241 Bearing
6336M/C4VL0241 Bearing is commonly used in electric motors and generators, where its insulation coating prevents electrical arcing and extends service life. The brass cage adds stability, making it suitable for high-speed applications.

In wind turbines, 6336M/C4VL0241 Bearing handles heavy loads while resisting electrical currents that can cause damage. Its C4 radial clearance ensures smooth operation even under varying thermal conditions.

For industrial pumps, 6336M/C4VL0241 Bearing’s robust design and insulation properties make it a reliable choice. The high breakdown voltage rating provides added safety in electrically demanding environments.

What Makes 6336M/C4VL0241 Bearing a Preferred Choice?
6336M/C4VL0241 Bearing is ideal for railway traction motors, where electrical insulation is critical to prevent bearing currents. Its durable construction also withstands the vibrations common in rail applications.

In mining equipment, 6336M/C4VL0241 Bearing’s high dynamic load rating ensures reliable performance under extreme conditions. The insulation coating further protects against stray currents from variable frequency drives.

Built for Heavy-Duty Use: 6336M/C4VL0241 Bearing
6336M/C4VL0241 Bearing excels in steel mill applications, where high temperatures and electrical interference are common. The brass cage and insulation coating work together to enhance durability.

For paper manufacturing machinery, 6336M/C4VL0241 Bearing’s resistance to moisture and electrical currents ensures consistent operation. Its wide temperature range makes it adaptable to various production environments.

Automotive vs Aerospace: Applications of 6336M/C4VL0241 Bearing
In electric vehicle drivetrains, 6336M/C4VL0241 Bearing prevents electrical pitting while handling high rotational speeds. Its insulation properties are key to maintaining efficiency in EV systems.

For aerospace ground support equipment, 6336M/C4VL0241 Bearing’s lightweight design and electrical insulation meet stringent safety requirements. The high static load rating also supports heavy auxiliary systems.
