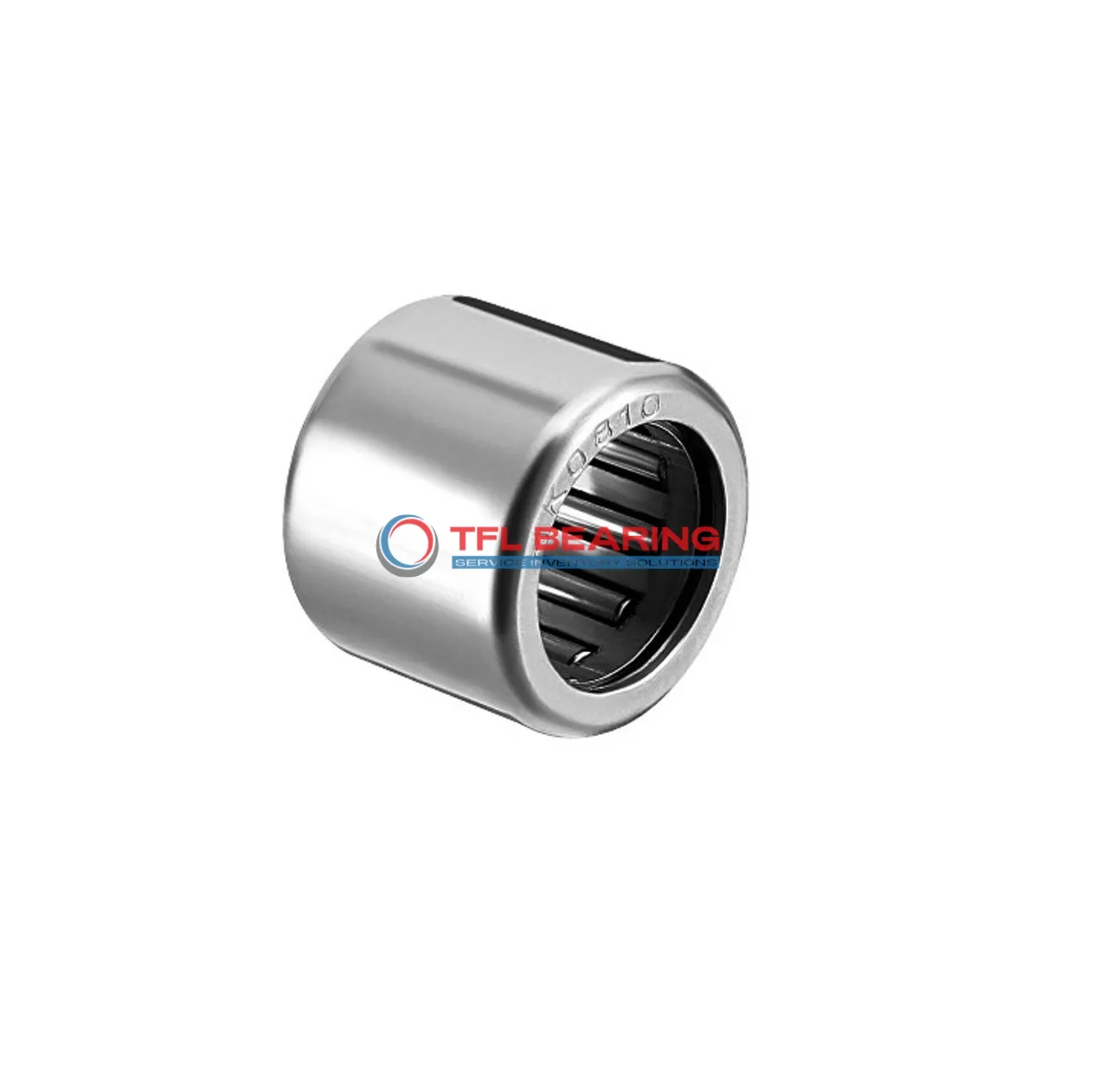

Drawn Cup Needle Roller Bearings SCH912

Brand: TFL Bearing Interchangeable: INA SCH912 0.5625" × 0.8125" × 0.75" Inch Open
Part number: SCH912
Drawn Cup Needle Roller Bearings SCH912
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia0.5625"
Bore Dia ToleranceRefer to note on the right drawing
Outer Dia0.8125"
Outer Dia ToleranceNot Rated
Width0.75"
Width Tolerance-0.01" to 0"
Performance
Dynamic Radial Load3,237 lbf
Static Radial Load4,271 lbf
Temperature Range-20 to 110 °C
Max Speed16,800 rpm
Characteristics
System of MeasurementInch
Bearing TypeRoller
Roller Bearing TypeNeedle
For Load DirectionRadial
ConstructionSingle Row
Seal TypeOpen
SeriesOpen End
LubricationRequired
Shaft Mount TypePress Fit
Weight17 g
Material
Ring MaterialSteel
Ball MaterialSteel
Cage MaterialSteel
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The SCH912 is a drawn cup needle roller bearing with a 0.5625″ bore and 0.8125″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3237 lbf and can spin at speeds up to 16800 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces. The steel cage ensures durability, while the needle rollers provide smooth operation under load.
This bearing requires regular lubrication to maintain optimal performance. It works well in temperatures ranging from -20°C to 110°C, making it suitable for various environments.
Ideal for applications like automotive components or small machinery where space is limited. Compliant with RoHS standards, it’s a practical choice for replacements, especially as it’s interchangeable with INA bearings.

Features

How Does SCH912 Bearing Handle High-Speed Applications?
SCH912 Bearing is crafted with steel rings and needles, offering robust radial load support up to 3237 lbf.
Its press-fit shaft mount ensures secure installation, reducing slippage during high-speed operation.
With a maximum speed of 16,800 rpm, it delivers reliable performance in demanding conditions.
The open-end design allows for easy lubrication, maintaining smooth operation over time.

Application

Industrial Uses of SCH912 Bearing
SCH912 Bearing is commonly used in industrial gearboxes, where its compact design helps save space while handling radial loads efficiently. The press-fit mounting ensures a secure connection in high-vibration environments.
Where Is SCH912 Bearing Used?
You’ll find SCH912 Bearing in automotive transmissions, where its needle roller design provides smooth rotation under heavy loads. Its steel construction makes it durable enough for long-term use in demanding conditions.
Perfect Fit for Automation: SCH912 Bearing
In robotic arms, SCH912 Bearing offers reliable performance due to its high-speed capability and radial load support. The open-end design allows for easy lubrication, extending its service life in continuous operation.
Automotive vs Industrial: Applications of SCH912 Bearing
SCH912 Bearing works well in both car steering systems and conveyor belts, thanks to its versatility and inch sizing. Its dynamic load capacity ensures consistent performance across different applications.
Medical vs Consumer Electronics: Where SCH912 Bearing Excels
SCH912 Bearing is suitable for small medical devices like dental drills, where precision matters. It’s also found in printers, providing quiet and efficient operation for everyday use.
