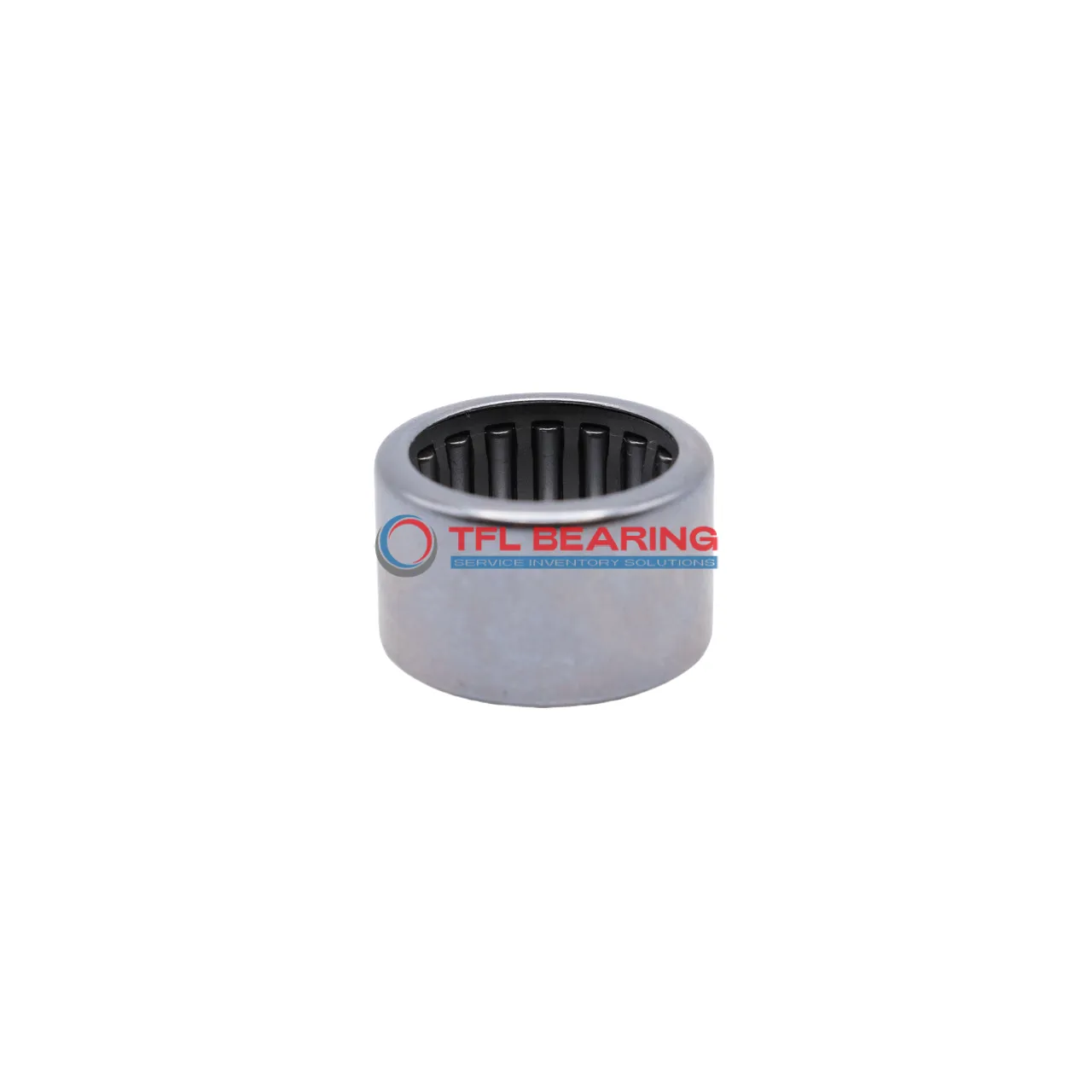

Drawn Cup Needle Roller Bearings SCH710-PP

Brand: TFL Bearing Interchangeable: INA SCH710-PP 0.4375" × 0.6875" × 0.625" Inch Double Seal
Part number: SCH710-PP
Drawn Cup Needle Roller Bearings SCH710-PP
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia0.4375"
Bore Dia ToleranceRefer to note on the right drawing
Outer Dia0.6875"
Outer Dia ToleranceNot Rated
Width0.625"
Width Tolerance-0.01" to 0"
Performance
Dynamic Radial Load1,776 lbf
Static Radial Load1,843 lbf
Temperature Range-20 to 110 °C
Max Speed19,600 rpm
Characteristics
System of MeasurementInch
Bearing TypeRoller
Roller Bearing TypeNeedle
For Load DirectionRadial
ConstructionSingle Row
Seal TypeDouble Seal
SeriesOpen End
LubricationRequired
Shaft Mount TypePress Fit
Weight11 g
Material
Ring MaterialSteel
Ball MaterialSteel
Cage MaterialSteel
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The SCH710-PP is a drawn cup needle roller bearing with a 0.4375″ bore and 0.6875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1776 lbf and spins smoothly at speeds up to 19600 RPM.
Its double-seal design keeps contaminants out while retaining lubrication, making it low-maintenance. The press-fit shaft mount ensures a secure installation for long-term use.
This bearing is ideal for applications like automotive components or small machinery where space is limited. It works well in temperatures from -20°C to 110°C.
Interchangeable with INA bearings, it offers a practical replacement option. Compliant with RoHS standards, it’s a safe and durable choice for various industrial needs.

Features

How Does SCH710-PP Bearing Reduce Friction?
SCH710-PP Bearing features a double-sealed design, keeping contaminants out and lubrication in for smoother operation.
Its steel construction ensures durability while handling radial loads up to 1776 lbf.
The needle roller design minimises friction, making it suitable for high-speed applications up to 19,600 rpm.
With a press-fit shaft mount, installation is straightforward and secure.
What Makes SCH710-PP Bearing Suitable for High-Temperature Applications?
SCH710-PP Bearing operates reliably in temperatures ranging from -20 to 110°C.
Its steel components resist thermal expansion, maintaining performance under stress.
The double-sealed design protects against dust and moisture, even in harsh conditions.
Lubrication is required but lasts longer due to the sealed construction.
Engineered for Precision: SCH710-PP Bearing
SCH710-PP Bearing’s needle roller design ensures precise radial load distribution.
Its tight width tolerance of -0.01″ to 0″ allows for accurate fitting in compact spaces.
The steel cage and rollers work together to reduce wear and extend service life.
With a static radial load capacity of 1843 lbf, it handles demanding applications with ease.
Steel vs Ceramic Bearings: Strengths of SCH710-PP Bearing
SCH710-PP Bearing’s all-steel construction offers a cost-effective yet durable solution.
It provides excellent radial load support, with a dynamic capacity of 1776 lbf.
The double-sealed design ensures long-lasting lubrication, reducing maintenance needs.
Its press-fit mounting simplifies installation, saving time and effort.
Reliability Factors of SCH710-PP Bearing
SCH710-PP Bearing’s double-sealed design enhances protection against contaminants.
The steel rollers and cage ensure consistent performance under high radial loads.
With a maximum speed of 19,600 rpm, it delivers efficiency without compromising durability.
Its operating temperature range of -20 to 110°C makes it versatile for various environments.

Application

Common Applications of SCH710-PP Bearing
SCH710-PP Bearing is widely used in automotive transmissions, where its compact design and high radial load capacity make it ideal for tight spaces. The double seal ensures long-lasting performance even in dusty conditions.
In industrial machinery, SCH710-PP Bearing excels in conveyor systems and gearboxes, thanks to its press-fit mounting and steel construction. Its high-speed capability (up to 19600 rpm) makes it suitable for demanding applications.
For small electric motors, SCH710-PP Bearing provides reliable support with minimal maintenance. The inch sizing ensures compatibility with various North American equipment, while the steel cage offers durability.
Where Is SCH710-PP Bearing Used?
You’ll often find SCH710-PP Bearing in power tools, where its needle roller design handles high radial loads efficiently. The double seal keeps lubrication in and contaminants out, extending tool life.
In robotics, SCH710-PP Bearing is a go-to for joint mechanisms due to its precision and smooth operation. The press-fit design simplifies installation, saving time during assembly.
Built for Heavy-Duty Use: SCH710-PP Bearing
SCH710-PP Bearing shines in agricultural equipment, enduring harsh conditions like mud and vibration. Its steel construction resists wear, making it a dependable choice for tractors and harvesters.
The bearing also works well in printing machinery, where consistent performance is key. The high rpm rating ensures smooth paper handling without overheating.
Automotive vs Industrial: Applications of SCH710-PP Bearing
In cars, SCH710-PP Bearing supports steering columns and pedal assemblies, offering quiet operation. Its inch sizing fits seamlessly into older vehicle models.
For factory equipment, this bearing handles repetitive motion in packaging machines. The double seal protects against debris, reducing downtime for maintenance.
