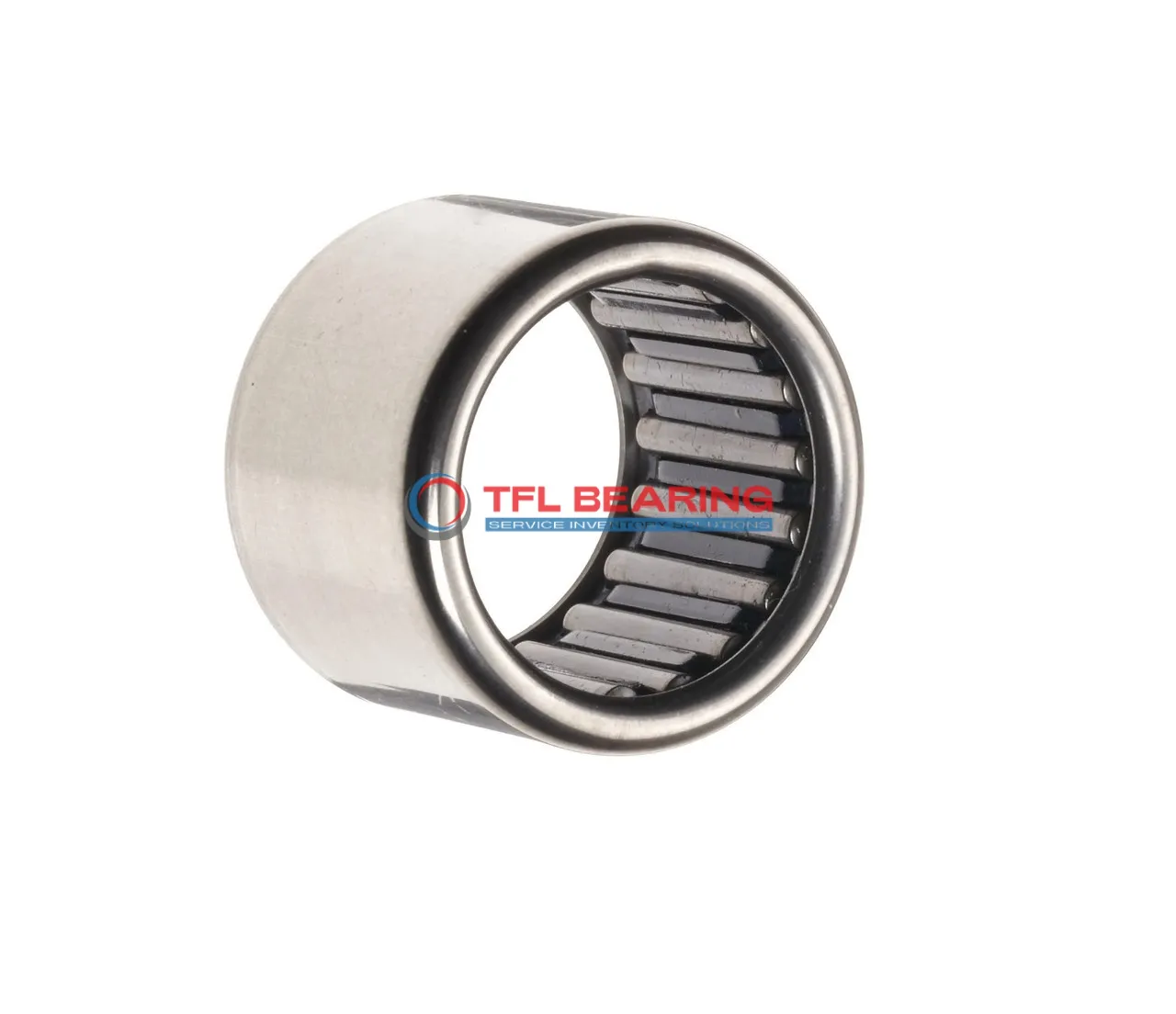

Drawn Cup Needle Roller Bearings BCH912

Drawn Cup Needle Roller Bearings BCH912

The BCH912 is a drawn cup needle roller bearing with a 0.5625″ bore and 0.8125″ outer diameter, made from sturdy steel. It handles radial loads up to 3237 lbf and spins smoothly at speeds up to 16800 RPM.
Its open, single-row design with a press-fit shaft mount ensures easy installation and reliable performance. The steel cage and rollers provide durability under heavy loads.
This bearing requires regular lubrication to maintain optimal performance. It works well in temperatures ranging from -20°C to 110°C.
Ideal for applications like automotive components or small machinery where space is limited but high load capacity is needed. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCH912
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.8125"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3237 lbf
  • Static Radial Load 4271 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 16800 rpm
  • Weight 17 g
Drawn Cup Needle Roller Bearings BCH912 dimension drawing
Download DWG Download PDF

Features

Why Choose BCH912 Bearing for Precision Tasks?
BCH912 Bearing features a steel construction, providing robust performance for radial load applications.
Its dynamic radial load capacity of 3237 lbf ensures reliable operation in demanding conditions.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 16,800 rpm, it delivers smooth and efficient performance.
BCH912 Bearing operates effectively within a temperature range of -20 to 110°C.
Regular lubrication enhances its longevity and maintains optimal performance.

Application

Industrial Uses of BCH912 Bearing
BCH912 Bearing is commonly used in industrial gearboxes, where its compact design helps save space while handling radial loads efficiently. The press-fit mounting ensures a secure installation in tight assemblies.
Where Is BCH912 Bearing Used?
You’ll often spot BCH912 Bearing in automotive transmissions, where its needle roller design reduces friction and improves power transfer. Its steel construction makes it durable under high-speed conditions.
Built for Heavy-Duty Use: BCH912 Bearing
BCH912 Bearing works well in construction equipment like hydraulic pumps, thanks to its ability to handle dynamic radial loads. The open seal design allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of BCH912 Bearing
In automotive applications, BCH912 Bearing supports clutch mechanisms, while in industrial settings, it’s found in conveyor rollers. Its inch sizing makes it versatile for various machinery standards.
Perfect Fit for Automation: BCH912 Bearing
BCH912 Bearing is a reliable choice for robotic arms, where precision and low friction are key. The steel cage ensures smooth operation even during repetitive movements.
