Drawn Cup Needle Roller Bearings SCH2212

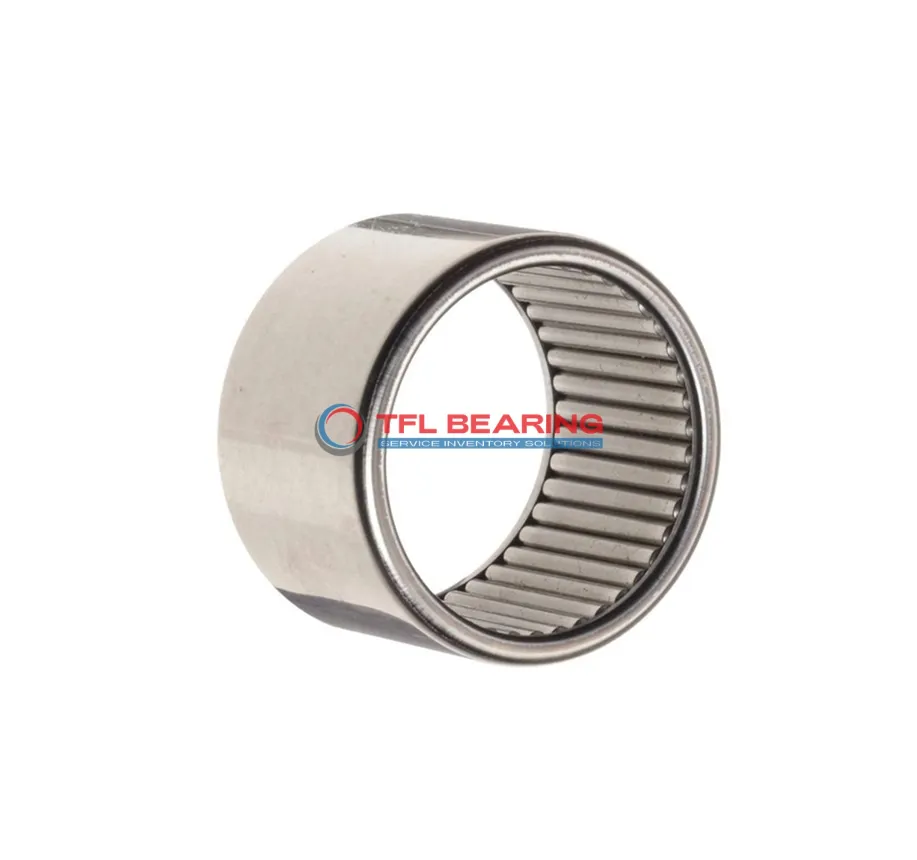

Drawn Cup Needle Roller Bearings SCH2212

The SCH2212 is a drawn cup needle roller bearing with a 1.375″ bore and 1.75″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 6632 lbf and operates smoothly at speeds up to 7200 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
Ideal for applications like automotive components or industrial machinery where space is limited but high load capacity is needed. It works well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH2212
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.375"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.75"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 6632 lbf
  • Static Radial Load 10116 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7200 rpm
  • Weight 57 g
Drawn Cup Needle Roller Bearings SCH2212 dimension drawing
Download DWG Download PDF

Features

How Does SCH2212 Bearing Handle Radial Loads?
SCH2212 Bearing is built with steel rings and needles, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6632 lbf, making it suitable for demanding applications.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 7200 rpm, SCH2212 Bearing balances durability and performance.
The steel construction ensures reliability in temperatures ranging from -20 to 110 °C.
Regular lubrication helps maintain smooth operation and extends the bearing’s service life.

Application

Common Applications of SCH2212 Bearing
SCH2212 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its steel construction ensures durability in demanding environments.
Where Is SCH2212 Bearing Used?
You’ll often find SCH2212 Bearing in automotive applications, such as gearboxes and steering systems, where its press-fit design provides a secure and stable fit. The inch sizing makes it a popular choice for North American vehicle models.
Ideal for Precision: SCH2212 Bearing
In medical devices like dental drills, SCH2212 Bearing offers reliable performance due to its smooth operation and high-speed capability. The open design allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of SCH2212 Bearing
SCH2212 Bearing excels in both automotive and industrial settings, handling radial loads efficiently in gear pumps and power tools. Its steel cage and rollers ensure consistent performance under heavy use.
Perfect Fit for Automation: SCH2212 Bearing
For robotic arms and automated assembly lines, SCH2212 Bearing provides precise movement and low friction. Its compact size and high load capacity make it a versatile choice for modern automation systems.
