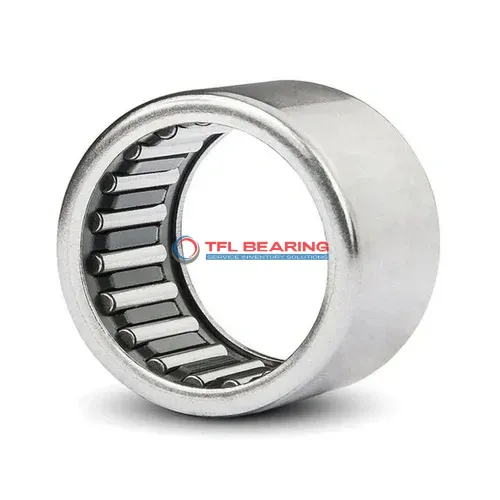

Drawn Cup Needle Roller Bearings SCE2014-P

Drawn Cup Needle Roller Bearings SCE2014-P

The SCE2014-P is a drawn cup needle roller bearing with a 1.25″ bore and 1.5″ outer diameter, made from sturdy steel. It handles radial loads up to 4743 lbf and operates smoothly at speeds up to 6500 RPM.
Its single-seal design helps keep contaminants out while maintaining easy access for lubrication. The press-fit shaft mount ensures a secure installation.
This bearing is ideal for applications like automotive components or industrial machinery where space is limited but high load capacity is needed. It works well in temperatures from -20°C to 110°C.
Compliant with RoHS standards, it’s a reliable choice for replacements, especially as it’s interchangeable with INA bearings. The compact design (0.875″ width) makes it versatile for tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE2014-P
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.5"
  • Outer Dia Tolerance Not Rated
  • Width 0.875"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4743 lbf
  • Static Radial Load 888 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 6500 rpm
  • Weight 38 g
Drawn Cup Needle Roller Bearings SCE2014-P dimension drawing
Download DWG Download PDF

Features

Why Choose SCE2014-P Bearing for Precision Tasks?
SCE2014-P Bearing features a single-row needle roller design, ideal for handling high radial loads with precision.
Its steel construction ensures durability, while the single seal protects against contaminants.
The dynamic radial load capacity of 4743 lbf makes SCE2014-P Bearing suitable for demanding applications.
With a maximum speed of 6500 rpm, it balances performance and reliability.
SCE2014-P Bearing’s press-fit shaft mount simplifies installation, saving time and effort.
Its temperature range of -20 to 110°C ensures consistent operation in various environments.

Application

Industrial Uses of SCE2014-P Bearing
SCE2014-P Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
Where Is SCE2014-P Bearing Used?
You’ll often find SCE2014-P Bearing in automotive transmissions, providing smooth operation under high radial loads. Its press-fit design simplifies installation, making it a favourite for assembly lines.
Built for Heavy-Duty Use: SCE2014-P Bearing
SCE2014-P Bearing excels in construction equipment like hydraulic pumps, where its single-seal design helps keep contaminants out. The inch sizing makes it compatible with many North American machinery standards.
Automotive vs Industrial: Applications of SCE2014-P Bearing
In automotive steering systems, SCE2014-P Bearing offers reliable performance, while in industrial presses, it handles heavy radial loads with ease. Its steel cage ensures long service life in both scenarios.
Perfect Fit for Automation: SCE2014-P Bearing
SCE2014-P Bearing works well in robotic arms, where its low-profile design saves space without sacrificing load capacity. The required lubrication ensures smooth movement over extended periods.
