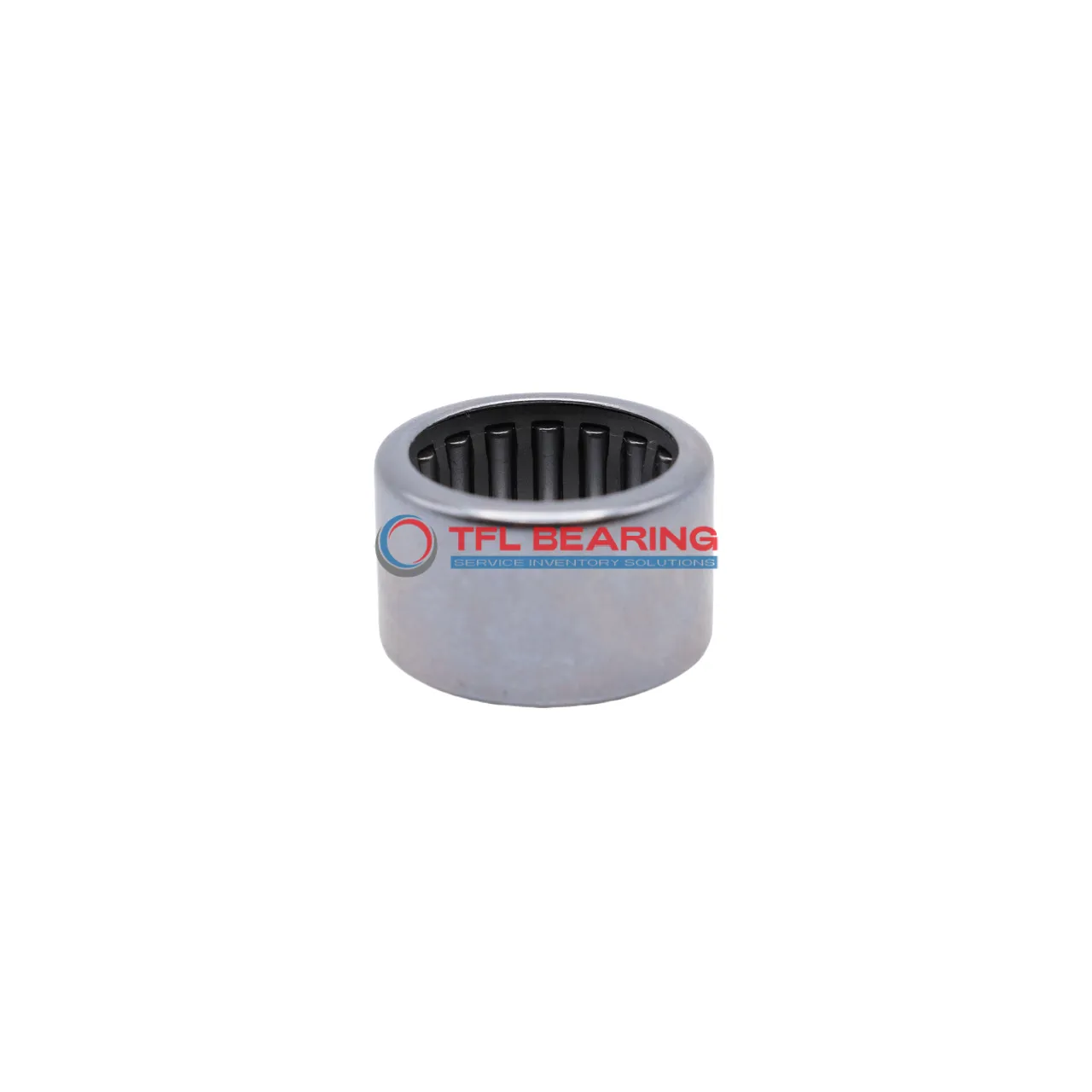

Drawn Cup Needle Roller Bearings SCE66-P

Drawn Cup Needle Roller Bearings SCE66-P

The SCE66-P is a drawn cup needle roller bearing with a 0.375″ bore and 0.5625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 652 lbf and spins efficiently at speeds up to 25000 RPM.
Its single-seal design helps keep contaminants out while maintaining smooth operation. The press-fit shaft mount ensures a secure installation, making it a practical choice for tight spaces.
This bearing is interchangeable with INA models, offering flexibility for replacements. Ideal for applications like small engines or gear mechanisms where compact size and radial load capacity are key.
It requires regular lubrication and operates well in temperatures from -20°C to 110°C. RoHS compliant for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE66-P
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.375"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.5625"
  • Outer Dia Tolerance Not Rated
  • Width 0.375"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 652 lbf
  • Static Radial Load 607 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 25000 rpm
  • Weight 5 g
Drawn Cup Needle Roller Bearings SCE66-P dimension drawing
Download DWG Download PDF

Features

Why Choose SCE66-P Bearing for Precision Tasks?
SCE66-P Bearing features a steel construction, ensuring durability and resistance to wear in radial load applications.
Its dynamic radial load capacity of 652 lbf makes it suitable for high-performance machinery.
The single seal design protects against contaminants while maintaining smooth operation.
With a maximum speed of 25,000 rpm, it delivers reliable performance in demanding conditions.
SCE66-P Bearing’s press-fit shaft mount simplifies installation, saving time and effort.
Its compact design is ideal for applications where space is limited.

Application

Common Applications of SCE66-P Bearing
SCE66-P Bearing is widely used in industrial equipment, especially in compact machinery where space is limited. Its single seal design helps keep contaminants out while maintaining smooth operation.
In automotive applications, SCE66-P Bearing fits well in gearboxes and steering systems, handling radial loads efficiently. The press-fit mounting ensures a secure installation, reducing maintenance needs.
For automation and robotics, SCE66-P Bearing’s high-speed capability makes it suitable for precise movements in robotic arms. The steel construction provides durability even in demanding environments.
In consumer electronics, SCE66-P Bearing can be found in small motors and printers, where its compact size and reliability are key. The inch sizing makes it compatible with various North American and European devices.
