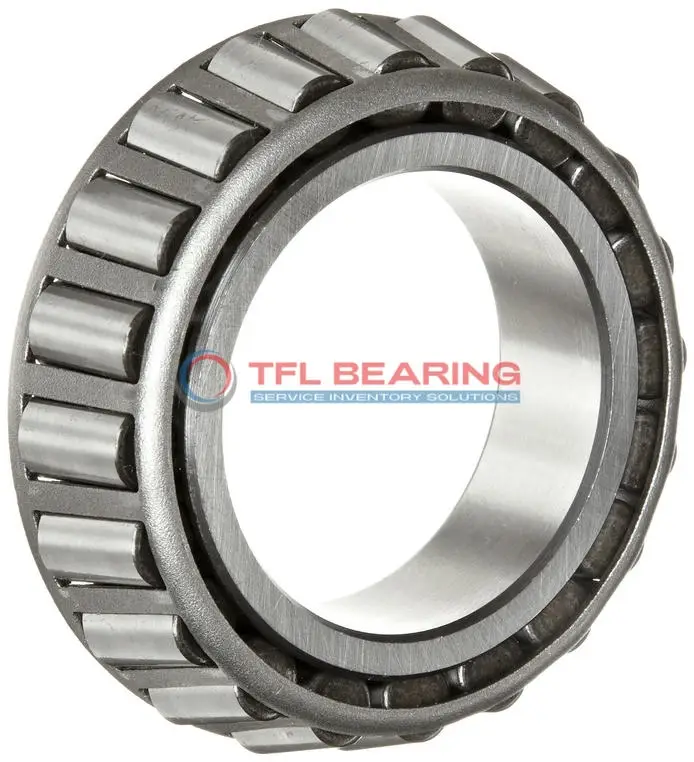

72200C Single Cones (Imperial)

72200C Single Cones (Imperial)

The 72200C single cones are tapered roller bearings with a 2-inch bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 48,200 lbf and thrust loads up to 15,800 lbf.

Their open design allows easy maintenance, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures from -30°C to 110°C, making them versatile for various conditions.

Interchangeable with Timken models, these cones are a practical choice for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

With standard radial clearance and ABEC-1 rating, they offer a balance of precision and durability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 72200C
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 72200C-72487 , 72200C-72500
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 72000C
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.291"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 2.64"
  • Cone Backface Backing Diameter 3.03"
  • Cage Cone Frontface Clearance 0.2"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location 0.08"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48200 lbf
  • Static Radial Load 46800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12500 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 83900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 15800 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 21700 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 72200C Bearing

72200C Bearing is built with chrome steel rings, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,200 lbf, ensuring reliable performance in tough conditions.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

72200C Bearing’s tapered roller design provides smooth operation under heavy loads.
Its standard radial clearance options allow for flexibility in different applications.

Application

Industrial Uses of 72200C Bearing
72200C Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 72200C Bearing Used?
In automotive applications, 72200C Bearing supports wheel hubs and drivetrain components, providing reliable performance under radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 72200C Bearing
72200C Bearing excels in industrial gearboxes, where its steel cage and standard radial clearance offer stability and longevity. The ABEC-1 rating ensures consistent performance for general machinery needs.

Automotive vs Aerospace: Applications of 72200C Bearing
While 72200C Bearing is popular in truck axles and agricultural machinery, it also finds use in aerospace landing gear systems. Its dynamic load capacity makes it versatile across different industries.

Key Fields for 72200C Bearing
72200C Bearing is ideal for conveyor systems and material handling equipment, where its tapered rollers manage heavy radial and axial loads. The temperature range suits both indoor and outdoor applications.
