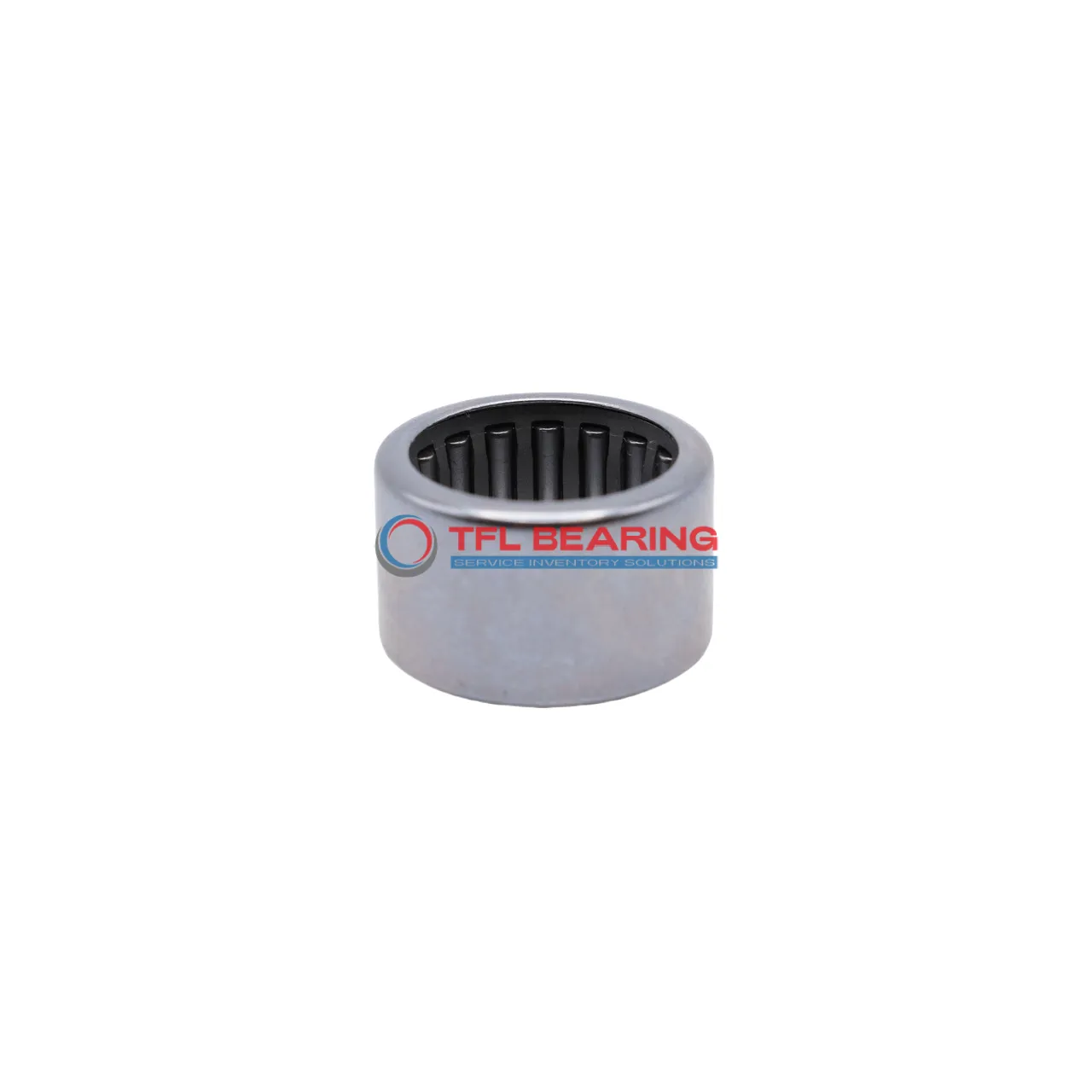

Drawn Cup Needle Roller Bearings SCE68-PP

Brand: TFL Bearing Interchangeable: INA SCE68-PP 0.375" × 0.5625" × 0.5" Inch Double Seal
Part number: SCE68-PP
Drawn Cup Needle Roller Bearings SCE68-PP
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia0.375"
Bore Dia ToleranceRefer to note on the right drawing
Outer Dia0.5625"
Outer Dia ToleranceNot Rated
Width0.5"
Width Tolerance-0.01" to 0"
Performance
Dynamic Radial Load877 lbf
Static Radial Load888 lbf
Temperature Range-20 to 110 °C
Max Speed25,000 rpm
Characteristics
System of MeasurementInch
Bearing TypeRoller
Roller Bearing TypeNeedle
For Load DirectionRadial
ConstructionSingle Row
Seal TypeDouble Seal
SeriesOpen End
LubricationRequired
Shaft Mount TypePress Fit
Weight6 g
Material
Ring MaterialSteel
Ball MaterialSteel
Cage MaterialSteel
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The SCE68-PP is a compact drawn cup needle roller bearing with a 0.375″ bore and 0.5625″ outer diameter, crafted from sturdy steel. It handles radial loads up to 877 lbf and spins efficiently at speeds up to 25,000 RPM.
Its double-seal design keeps contaminants out while retaining lubrication, ensuring smooth operation. The press-fit mounting makes installation straightforward for secure placement.
This bearing is interchangeable with INA models, offering a reliable alternative for replacements. Perfect for applications like small gearboxes or automotive components where space is limited.
Operating in temperatures from -20°C to 110°C, it’s versatile for various environments. RoHS compliant for safe and sustainable use.

Features

Core Advantages of SCE68-PP Bearing
SCE68-PP Bearing features a double-seal design, protecting against dust and debris for reliable operation.
Its steel construction ensures durability, making it suitable for high-speed applications up to 25,000 rpm.
The needle roller design provides excellent radial load capacity, handling up to 877 lbf dynamically.
With a press-fit shaft mount, SCE68-PP Bearing offers easy installation and secure positioning.
It operates efficiently in temperatures ranging from -20 to 110°C, adapting to various environments.
The required lubrication ensures smooth performance, reducing friction and wear over time.

Application

Common Applications of SCE68-PP Bearing
SCE68-PP Bearing is widely used in industrial equipment, especially in compact spaces where high radial load capacity is needed, such as conveyor systems and small gearboxes. Its double seal design helps keep contaminants out, extending the bearing’s lifespan in dusty environments.
In automotive applications, SCE68-PP Bearing fits well in components like transmission systems and steering mechanisms, thanks to its press-fit mounting and high-speed capability. The inch sizing makes it a convenient choice for many American and British vehicle models.
For automation and robotics, SCE68-PP Bearing’s steel construction ensures reliable performance in precise movements, such as those found in robotic arms. Its ability to handle high speeds makes it suitable for repetitive tasks without compromising durability.
In consumer electronics, SCE68-PP Bearing can be found in devices like printers and small motors, where its compact size and efficiency are key. The steel cage provides added strength, ensuring smooth operation even with frequent use.
