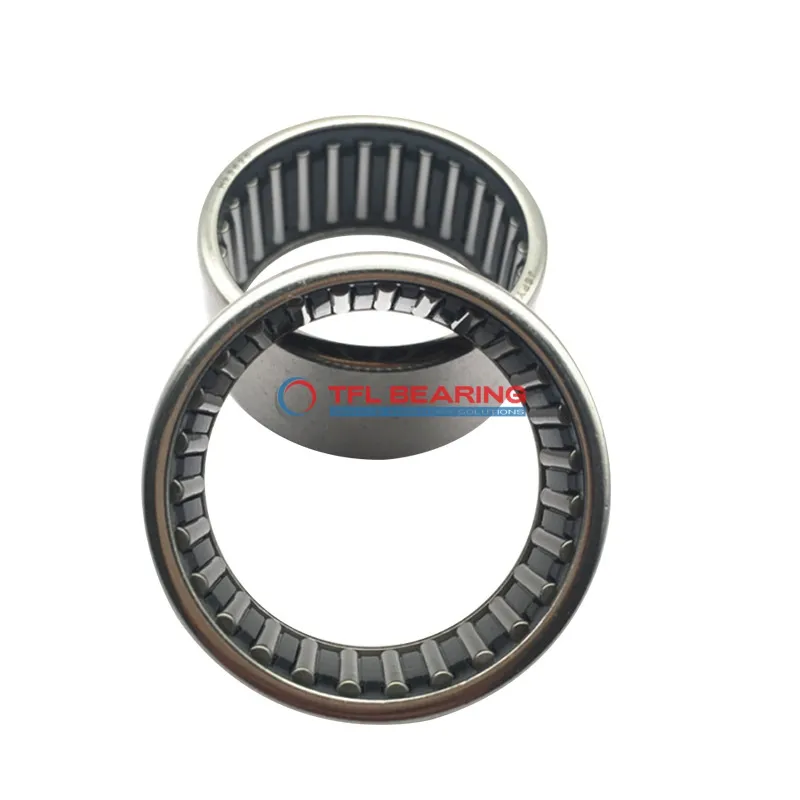

Drawn Cup Needle Roller Bearings BCH06604-P

Drawn Cup Needle Roller Bearings BCH06604-P

The BCH06604-P is a drawn cup needle roller bearing with a 0.6667″ bore and 0.9375″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1664 lbf and spins smoothly at speeds up to 11000 RPM.

Its single-seal design keeps contaminants out while maintaining easy lubrication access. The press-fit shaft mount ensures a secure installation, ideal for compact spaces.

This bearing is interchangeable with INA models, offering a practical replacement option. Suitable for applications like automotive components or small machinery where radial load support is needed.

Operating in temperatures from -20°C to 110°C, it’s versatile for various environments. RoHS compliant for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCH06604-P
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.6667"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.9375"
  • Outer Dia Tolerance Not Rated
  • Width 0.6882"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1664 lbf
  • Static Radial Load 1798 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 11000 rpm
  • Weight 17 g
Drawn Cup Needle Roller Bearings BCH06604-P dimension drawing
Download DWG Download PDF

Features

Why Choose BCH06604-P Bearing for Precision Tasks?
BCH06604-P Bearing features a single-seal design, ensuring smooth radial load handling in compact spaces.
Its steel construction provides reliable performance, with a dynamic radial load capacity of 1664 lbf.
The press-fit shaft mount simplifies installation, saving time and effort in assembly.
With a maximum speed of 11,000 rpm, BCH06604-P Bearing balances efficiency and durability.
Designed for temperatures from -20 to 110°C, it performs well in varied environments.
The closed-end series enhances protection against contaminants, extending service life.

Application

Industrial Uses of BCH06604-P Bearing
BCH06604-P Bearing is commonly used in industrial machinery like conveyor systems and packaging equipment, where its compact design helps save space. The single seal provides adequate protection against contaminants, making it suitable for dusty environments.
Where Is BCH06604-P Bearing Used?
In automotive applications, BCH06604-P Bearing fits well in gearboxes and steering systems, offering reliable radial load support. Its press-fit mounting ensures a secure attachment, reducing the risk of slippage during operation.
Perfect Fit for Automation: BCH06604-P Bearing
For automated machinery, BCH06604-P Bearing’s high-speed capability makes it ideal for robotic arms and assembly lines. The steel construction ensures durability even in continuous operation.
Medical vs Industrial: Where BCH06604-P Bearing Excels
While BCH06604-P Bearing isn’t typically used in medical devices, it shines in industrial settings like printing presses. Its inch sizing makes it compatible with older machinery still using imperial measurements.
