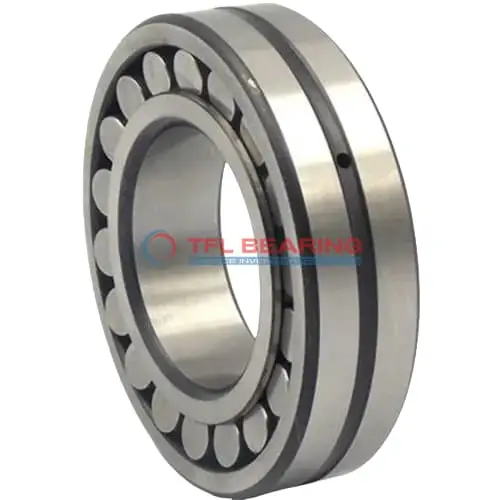

24038 CY C3 W33 Double Row Spherical Roller Bearing

24038 CY C3 W33 Double Row Spherical Roller Bearing

The 24038 CY C3 W33 is a double-row spherical roller bearing with a 190mm bore and 290mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 261678 lbf and operates smoothly at speeds up to 2000 RPM.

Its brass cage enhances durability, while the C3 radial clearance allows for thermal expansion in demanding conditions. The open design with lubrication grooves ensures easy maintenance.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads are common. It performs reliably in temperatures from -30°C to 200°C.

Weighing 23.5kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24038 CY C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 190 x 290 x 100 mm
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 290 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 100 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 210 mm
  • Shoulder/Recess Dia Of Outer Ring 253 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 261678 lbf
  • Static Radial Load 404656 lbf
  • Max Speed 2000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 23.5 kg
  • Price （US$） US$466.02

Features

Performance Features of 24038 CY C3 W33 Bearing

24038 CY C3 W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 261678 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 2000 rpm, it maintains reliable performance under high stress.

24038 CY C3 W33 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
The C3 radial clearance allows for thermal expansion, ensuring consistent operation.

Its double-row spherical design compensates for misalignment, improving longevity.
The lubrication groove and holes facilitate easy maintenance, reducing downtime.

Weighing 23.5 kg, 24038 CY C3 W33 Bearing is robust yet manageable for installation.
The cylindrical bore ensures a secure fit, enhancing stability during operation.

Application

Industrial Uses of 24038 CY C3 W33 Bearing
The 24038 CY C3 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. Its brass cage and chrome steel rollers ensure durability in harsh industrial environments.

Where Is 24038 CY C3 W33 Bearing Used?
You’ll find the 24038 CY C3 W33 Bearing in mining equipment, where its high dynamic radial load capacity keeps operations running smoothly. The C3 clearance allows for thermal expansion, making it ideal for high-temperature applications.

Built for Heavy-Duty Use: 24038 CY C3 W33 Bearing
In paper mills, the 24038 CY C3 W33 Bearing supports large rollers, thanks to its robust construction and lubrication groove design. The metric sizing ensures compatibility with European machinery standards.

Automotive vs Aerospace: Applications of 24038 CY C3 W33 Bearing
While the 24038 CY C3 W33 Bearing isn’t typically used in aerospace, it excels in heavy-duty automotive applications like large truck transmissions. Its spherical rollers accommodate misalignment, reducing wear in uneven load conditions.

Perfect Fit for Automation: 24038 CY C3 W33 Bearing
In automated production lines, the 24038 CY C3 W33 Bearing provides reliable performance for conveyor systems and robotic arms. The open seal design simplifies maintenance, ensuring minimal downtime.
