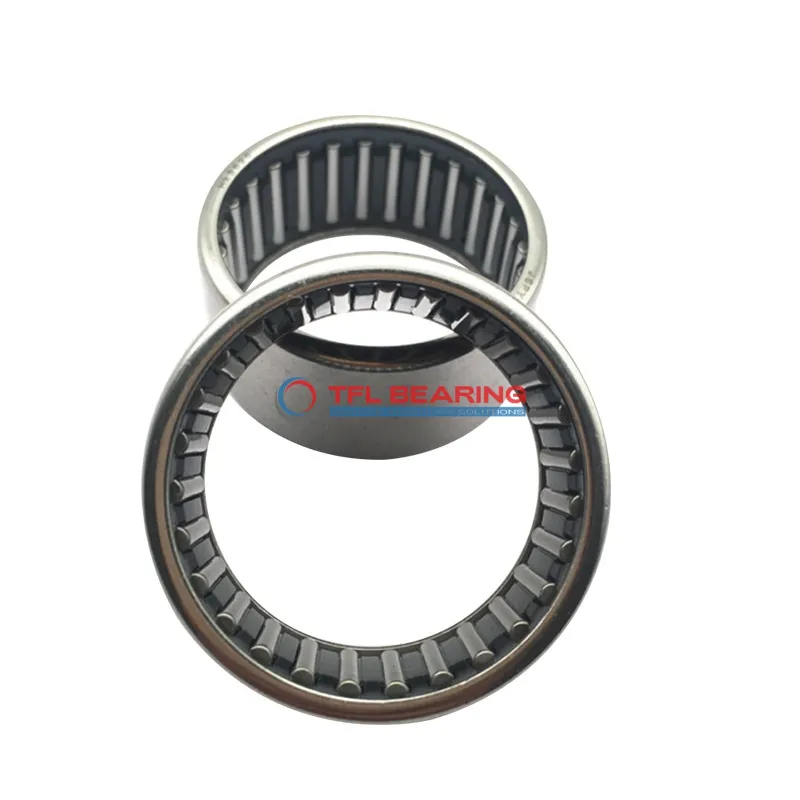

Drawn Cup Needle Roller Bearings SCH1016

Drawn Cup Needle Roller Bearings SCH1016

The SCH1016 is a drawn cup needle roller bearing with a 0.625″ bore and 0.875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4316 lbf and can spin at speeds up to 15300 RPM.
Its open-end design and press-fit mounting make it easy to install, while the steel cage ensures durability under heavy use. The bearing requires regular lubrication for optimal performance.
This model works well in temperatures ranging from -20°C to 110°C and is interchangeable with INA bearings. Ideal for applications like automotive components or machinery where space is tight but high load capacity is needed.
Compliant with RoHS standards, it’s a practical choice for various industrial uses. Its compact size (1″ width) makes it suitable for confined spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH1016
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.875"
  • Outer Dia Tolerance Not Rated
  • Width 1"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4316 lbf
  • Static Radial Load 6295 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 15300 rpm
  • Weight 25 g
Drawn Cup Needle Roller Bearings SCH1016 dimension drawing
Download DWG Download PDF

Features

Why Choose SCH1016 Bearing for Precision Tasks?
SCH1016 Bearing features a steel construction, offering robust performance for radial load applications.
Its dynamic radial load capacity of 4316 lbf ensures reliable operation under demanding conditions.
The open-end design allows for easy lubrication, maintaining smooth performance over time.
With a maximum speed of 15,300 rpm, SCH1016 Bearing is suitable for high-speed applications.
Press-fit mounting simplifies installation, reducing downtime and maintenance efforts.
The temperature range of -20 to 110°C ensures consistent performance in various environments.

Application

Industrial Uses of SCH1016 Bearing
SCH1016 Bearing is commonly used in industrial machinery where space is limited but high radial load capacity is needed, such as in compact gearboxes and conveyor rollers. Its steel construction ensures durability in demanding environments.
Where Is SCH1016 Bearing Used?
You’ll often find SCH1016 Bearing in automotive applications like transmission systems and steering mechanisms, where its press-fit design provides a secure and stable fit. The high-speed capability makes it suitable for performance vehicles.
Built for Heavy-Duty Use: SCH1016 Bearing
SCH1016 Bearing excels in heavy-duty equipment like agricultural machinery, handling radial loads with ease. The open-end design allows for straightforward lubrication, extending its service life.
Automotive vs Industrial: Applications of SCH1016 Bearing
In automotive settings, SCH1016 Bearing supports components like clutch assemblies, while in industrial use, it’s ideal for printing presses. Its inch sizing makes it versatile for various machinery standards.
Perfect Fit for Automation: SCH1016 Bearing
SCH1016 Bearing is a reliable choice for automated systems, including robotic arms and packaging machines, where precision and high-speed performance are key. The steel cage ensures smooth operation under continuous use.
