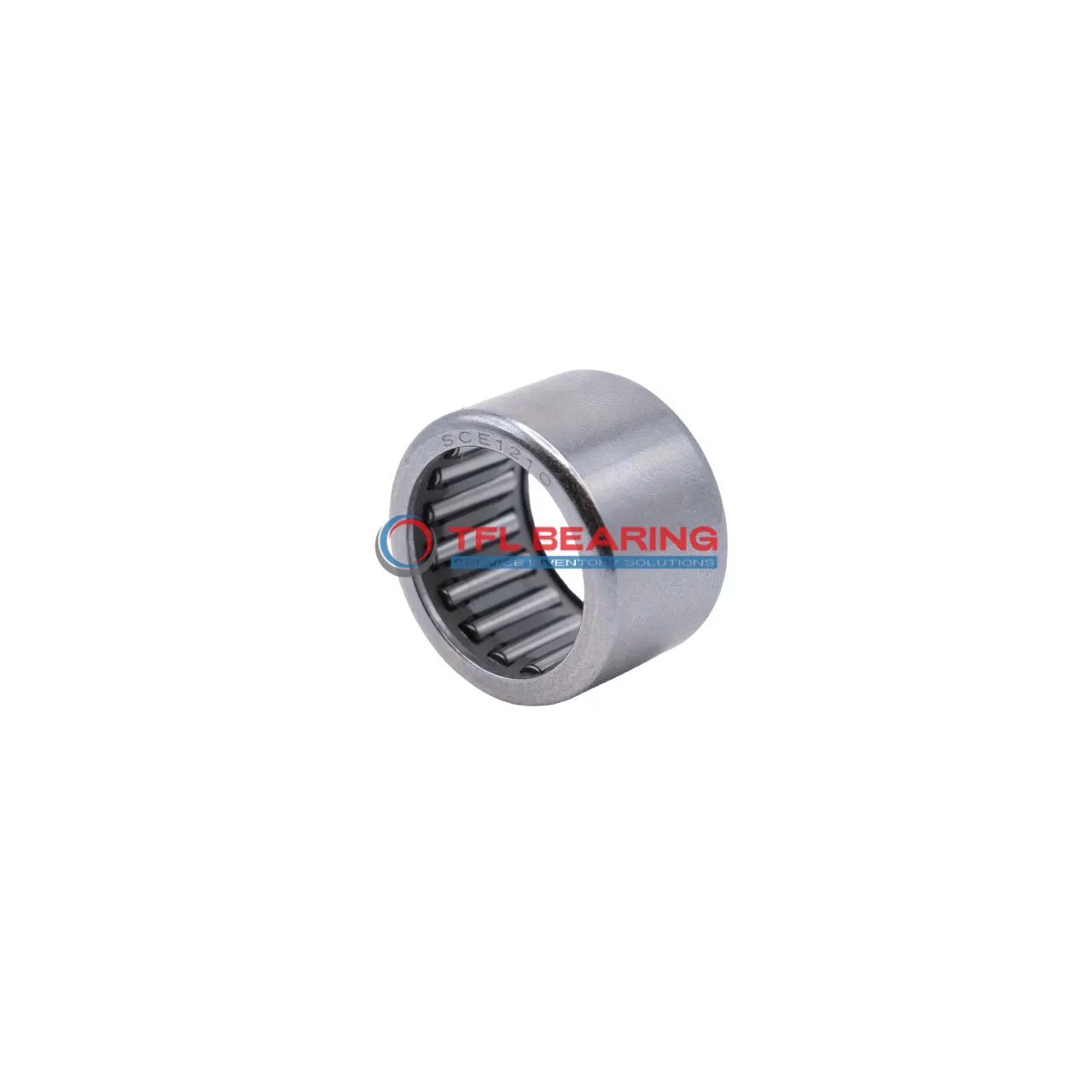

Drawn Cup Needle Roller Bearings BCE65

Drawn Cup Needle Roller Bearings BCE65

The BCE65 is a drawn cup needle roller bearing with a 0.375″ bore and 0.5625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 652 lbf and spins efficiently at speeds up to 25000 RPM.
Its open design and press-fit mounting make installation straightforward, while the steel cage ensures durability. Regular lubrication is needed to maintain smooth operation.
This bearing is ideal for applications like small engines or gearboxes where space is limited but high radial load capacity is required. It works well in temperatures from -20°C to 110°C.
Compliant with RoHS standards, it’s a practical choice for replacements, especially as it’s interchangeable with INA models. Its compact size (0.3125″ width) fits snugly in tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE65
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.375"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.5625"
  • Outer Dia Tolerance Not Rated
  • Width 0.3125"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 652 lbf
  • Static Radial Load 607 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 25000 rpm
  • Weight 3 g
Drawn Cup Needle Roller Bearings BCE65 dimension drawing
Download DWG Download PDF

Features

Performance Features of BCE65 Bearing
BCE65 Bearing is crafted with steel rings and needles, offering strong radial load support.
Its dynamic radial load capacity of 652 lbf ensures steady performance in high-speed applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 25,000 rpm, it delivers efficiency and durability.
BCE65 Bearing operates reliably in temperatures from -20 to 110°C.
Regular lubrication helps maintain its smooth performance over time.

Application

Common Applications of BCE65 Bearing
BCE65 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its press-fit design ensures a secure mounting, reducing maintenance needs.
In automotive systems, BCE65 Bearing fits well in gearboxes and steering mechanisms, providing smooth operation under heavy loads. The steel construction offers durability, making it reliable for long-term use.
For automation equipment, BCE65 Bearing supports precise movements in robotic arms and assembly lines. Its high-speed capability and open design allow for efficient lubrication, ensuring consistent performance.
In household appliances, BCE65 Bearing can be found in electric tools and small motors, where its compact size and strength are advantageous. The inch measurements make it compatible with various North American products.
