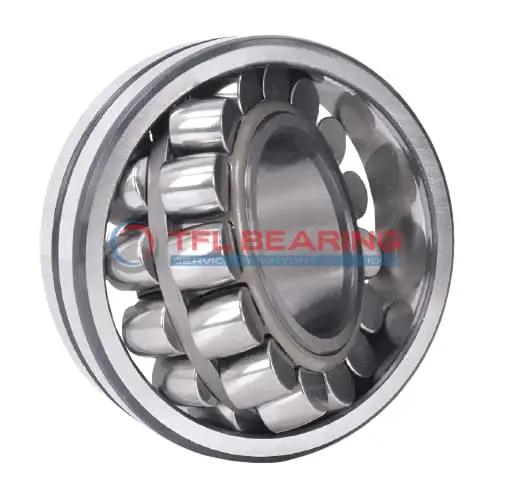

22316 EK/W64 Double Row Spherical Roller Bearing

22316 EK/W64 Double Row Spherical Roller Bearing

The 22316 EK/W64 is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 116001 lbf and runs smoothly at speeds up to 4000 RPM.

Its tapered bore design ensures a secure fit, while the open construction allows for easy lubrication. The steel cage adds durability, making it suitable for heavy-duty use.

This bearing operates in temperatures from -30°C to 200°C, ideal for harsh environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 6.25kg, it’s robust for industrial applications like gearboxes or conveyors. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316 EK/W64
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance +0.03mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg

Features

How Is 22316 EK/W64 Bearing Engineered for Reliability?

22316 EK/W64 Bearing features a double-row spherical roller design, ideal for handling combined radial and thrust loads.
Its chrome steel rings and rollers provide high resistance to wear, ensuring long-term durability.
The dynamic radial load capacity of 116001 lbf makes it suitable for heavy-duty applications.
With a maximum speed of 4000 rpm, it delivers reliable performance in demanding conditions.

What Makes 22316 EK/W64 Bearing Suitable for High-Temperature Applications?

22316 EK/W64 Bearing operates efficiently in temperatures ranging from -30° to 200°C, making it versatile for various environments.
The steel cage maintains roller alignment, reducing friction and extending service life.
Its tapered bore design ensures secure fitting, enhancing stability under heavy loads.
The lubrication groove and holes facilitate consistent lubrication, improving operational efficiency.

Designed for Durability: 22316 EK/W64 Bearing

22316 EK/W64 Bearing’s chrome steel construction offers excellent resistance to wear and fatigue.
The spherical roller design accommodates misalignment, ensuring smooth operation even under uneven loads.
With a static radial load capacity of 119149 lbf, it provides reliable support in demanding applications.
Its open design simplifies maintenance, reducing downtime and operational costs.

Application

Industrial Uses of 22316 EK/W64 Bearing
22316 EK/W64 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads effortlessly. The tapered bore ensures a secure fit, reducing slippage during high-speed operations.

Where Is 22316 EK/W64 Bearing Used?
In mining equipment, 22316 EK/W64 Bearing excels under extreme conditions, thanks to its chrome steel construction and robust dynamic load capacity. Its lubrication groove design also simplifies maintenance in hard-to-reach areas.

Built for Heavy-Duty Use: 22316 EK/W64 Bearing
22316 EK/W64 Bearing is a reliable choice for paper mills and steel plants, where constant vibration and heavy loads are common. The steel cage enhances durability, making it suitable for long-term industrial applications.

Automotive vs Aerospace: Applications of 22316 EK/W64 Bearing
While 22316 EK/W64 Bearing isn’t typically used in aerospace, it’s ideal for commercial vehicle transmissions and axles. Its high temperature tolerance ensures stable performance even under prolonged stress.

Perfect Fit for Automation: 22316 EK/W64 Bearing
In automated production lines, 22316 EK/W64 Bearing supports conveyor systems and robotic arms with precision. The spherical roller design compensates for misalignment, ensuring smooth operation in dynamic setups.
