24196 ECAK30/W33 Double Row Spherical Roller Bearing

24196 ECAK30/W33 Double Row Spherical Roller Bearing

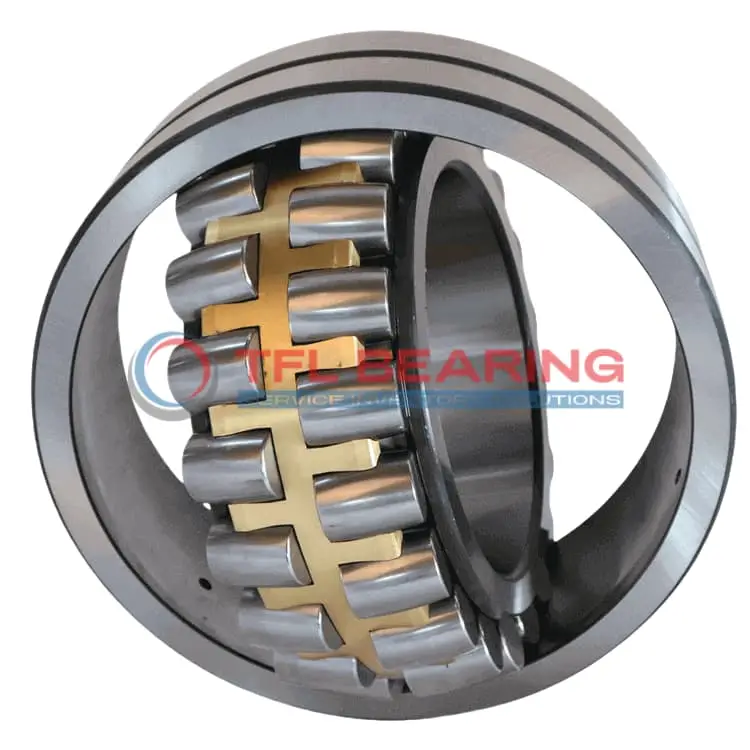

The 24196 ECAK30/W33 is a double-row spherical roller bearing with a large 480mm bore and 790mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 2067793 lbf and operates smoothly at speeds up to 400 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:30) provides a secure fit. The bearing includes lubrication grooves and holes for easy maintenance.

This model works in temperatures from -30°C to 200°C and is interchangeable with SKF bearings. Ideal for heavy-duty applications like industrial gearboxes or large machinery.

Weighing 585kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24196 ECAK30/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 480 x 790 x 308 mm
  • Bore Dia 480 mm
  • Bore Dia Tolerance +0.045mm to 0
  • Outer Dia 790 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 308 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 564 mm
  • Shoulder/Recess Dia Of Outer Ring 678 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2067793 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 585 kg

Features

Performance Features of 24196 ECAK30/W33 Bearing

24196 ECAK30/W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 2067793 lbf, making it suitable for heavy-duty industrial applications.
The brass cage ensures smooth roller movement, enhancing durability and reducing friction.
With a maximum speed of 400 rpm, it delivers reliable performance in demanding conditions.

How Is 24196 ECAK30/W33 Bearing Engineered for Reliability?

24196 ECAK30/W33 Bearing features a double-row spherical roller design, providing stability under varying load conditions.
The tapered bore design ensures secure fitting, reducing the risk of slippage during operation.
Its lubrication groove and hole facilitate efficient oil distribution, maintaining smooth performance.
Operating between -30° to 200°C, it adapts well to extreme temperature environments.

Designed for Durability: 24196 ECAK30/W33 Bearing

24196 ECAK30/W33 Bearing’s chrome steel construction resists wear, ensuring a long service life.
The spherical roller design accommodates misalignment, reducing stress on the bearing components.
With a static radial load capacity of 350702 lbf, it handles high loads with ease.
Its robust design makes it a reliable choice for heavy machinery and industrial equipment.

Steel vs Ceramic Bearings: Strengths of 24196 ECAK30/W33 Bearing

24196 ECAK30/W33 Bearing uses chrome steel for both rings and rollers, providing superior strength and durability.
The brass cage enhances performance by reducing friction and maintaining roller alignment.
Its high load capacity and temperature resistance make it ideal for challenging industrial applications.
The bearing’s design ensures consistent performance even under heavy combined loads.

Application

Industrial Uses of 24196 ECAK30/W33 Bearing
This bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row spherical design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

Where Is 24196 ECAK30/W33 Bearing Used?
You’ll find it in large industrial gearboxes and wind turbines, thanks to its tapered bore for secure fitting. The chrome steel construction offers durability in demanding environments.

Built for Heavy-Duty Use: 24196 ECAK30/W33 Bearing
Its robust design makes it ideal for paper mills and steel plants, where constant heavy loads are common. The lubrication groove ensures consistent performance over long periods.

Automotive vs Aerospace: Applications of 24196 ECAK30/W33 Bearing
While it’s too large for most vehicles, this bearing excels in aerospace ground support equipment. Its high load capacity and temperature range make it versatile for industrial applications.

Key Fields for 24196 ECAK30/W33 Bearing
In marine applications, it’s used in propeller shafts due to its corrosion-resistant materials. The spherical rollers accommodate misalignment, reducing wear and tear.
