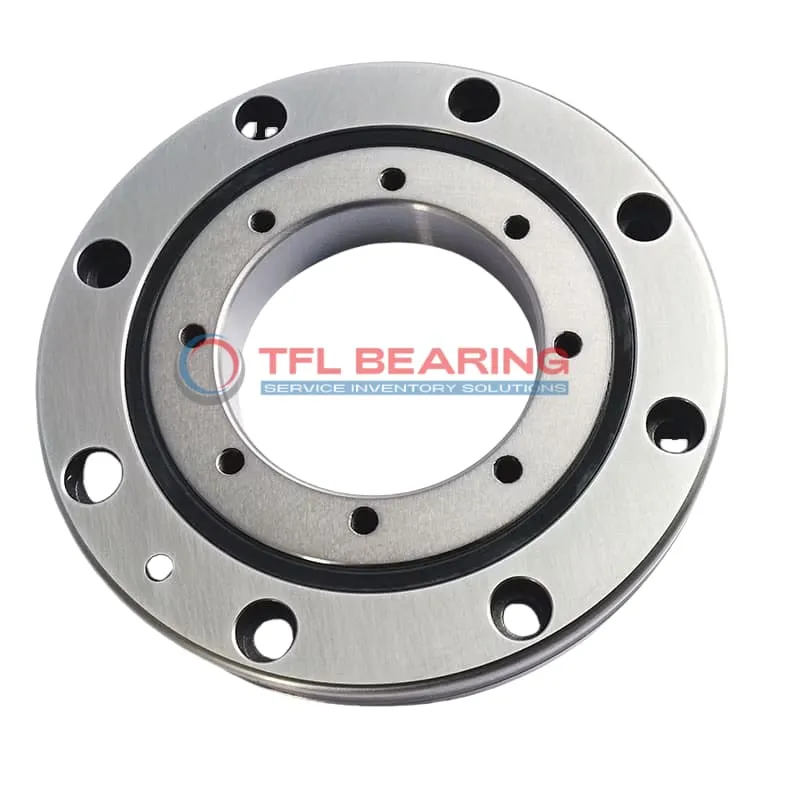

CRBTF Crossed Roller Bearings CRBTF305AT

CRBTF Crossed Roller Bearings CRBTF305AT

The CRBTF305AT is a compact crossed roller bearing measuring 30mm in bore, 63mm in outer diameter, and just 5mm wide, made from sturdy steel for reliable performance. It handles combined loads with a basic load rating of 2.14 kN and operates smoothly in temperatures from 0°C to 110°C.

Its single-row design with open construction and mounting holes (8-M2.5 inner, 8-φ2.9 outer) ensures easy press-fit installation. The precision ABEC5 rating (upgradable to ABEC7/9) makes it suitable for high-accuracy applications.

This bearing is ideal for rotary tables, robotics, or medical equipment where space is limited but precision is key. Lightweight at 0.083kg, it meets RoHS and REACH standards for safe use.

Regular lubrication is recommended to maintain its smooth operation over time. The crossed roller design provides excellent rigidity and stability under load.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBTF305AT
  • Brand TFL
  • Size 30 mm x 63 mm x 5 mm
  • Bore Dia 30 mm
  • Outer Dia 63 mm
  • Width 5 mm
  • Inner Ring PCD1 36 mm
  • Outer Ring PCD2 55 mm
  • R(min) 0.15 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes With Holes
  • Inner Ring Mounting Hole 8-M2.5 through
  • Outer Ring Mounting Hole 8-φ2.9 through φ5.5 counter bore depth 2.8
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 41.5 mm
  • Mounting Dimensions(Da) 47.5 mm
  • Basic Load Rating C 2.14 kN
  • Basic Load Rating Co 2.75 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.083 Kg

Features

How Is CRBTF305AT Bearing Engineered for Reliability?

CRBTF305AT Bearing features a single-row crossed roller design, ideal for handling combined loads with precision.
Its steel rings and rollers provide durability, while the open construction allows for easy lubrication.

The bearing includes mounting holes for secure press-fit installation, ensuring stability in various applications.
With a basic load rating of 2.14 kN, it delivers consistent performance under demanding conditions.

CRBTF305AT Bearing operates in temperatures from 0 to 230°F, making it suitable for diverse environments.
Its ABEC5 rating ensures high precision, with options for ABEC7 or ABEC9 for even tighter tolerances.

Application

Industrial Uses of CRBTF305AT Bearing
CRBTF305AT Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The open seal type allows for easy lubrication, ensuring smooth operation in demanding environments.

Where Is CRBTF305AT Bearing Used?
In robotics, CRBTF305AT Bearing supports articulated arms, offering high accuracy and load capacity for repetitive movements. Its compact size makes it ideal for space-constrained applications like 3D printers.

Built for Heavy-Duty Use: CRBTF305AT Bearing
CRBTF305AT Bearing handles combined loads effectively in conveyor systems, reducing maintenance needs with its durable steel construction. The press-fit mounting ensures secure installation in high-vibration settings.

Automotive vs Aerospace: Applications of CRBTF305AT Bearing
In automotive testing equipment, CRBTF305AT Bearing provides reliable performance for precise measurement devices. For aerospace, its ABEC5 rating meets the accuracy requirements for navigation systems.

Key Fields for CRBTF305AT Bearing
CRBTF305AT Bearing is found in medical imaging devices, where its low friction and high precision are essential. The steel rollers ensure long-lasting performance even with frequent use.
