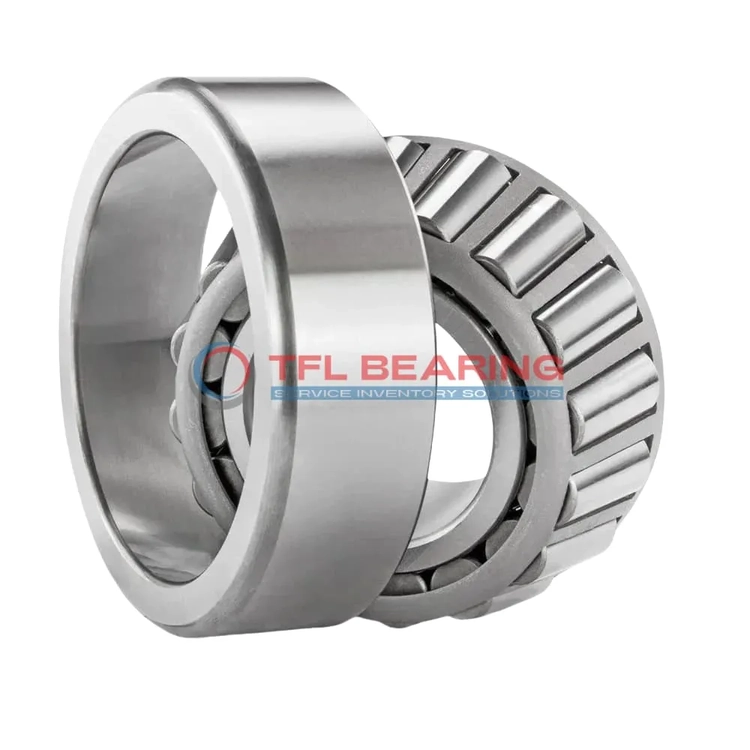

TS (Single Row Tapered Roller Bearings) (Imperial) 13685-13623X

TS (Single Row Tapered Roller Bearings) (Imperial) 13685-13623X

The 13685-13623X is a single-row tapered roller bearing with a 1.5″ bore and 2.717″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 15100 lbf radially and 2700 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. It’s well-suited for heavy-duty machinery or automotive systems where combined loads are common.

Weighing just 0.7lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance and ABEC-1 rating make it a practical choice for general industrial use. Its tapered roller design provides stable performance under varying load conditions.

Ideal for applications requiring precise alignment and long service life. The chrome steel construction ensures resistance to wear and tear over time.

Easy to install and maintain, this bearing is a dependable choice for engineers and technicians alike. Its dimensions and tolerances are designed for consistent performance in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13685-13623X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 2.717" x 0.8831"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.717"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7269"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8831"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.02"
  • Cone Frontface Backing Diameter 1.69"
  • Cone Backface Backing Diameter 1.95"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 13685
  • Cup Part Number 13623X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 13600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15100 lbf
  • Static Radial Load 15300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

Performance Features of 13685-13623X Bearing

13685-13623X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 15,100 lbf, ensuring reliable performance in demanding conditions.

The tapered roller design of 13685-13623X Bearing provides smooth operation and even load distribution.
With a standard radial clearance, it balances precision and durability for various applications.

13685-13623X Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage keeps the rollers aligned, reducing wear and extending service life.

The open design of 13685-13623X Bearing simplifies maintenance and lubrication.
It meets ABEC-1 standards, ensuring consistent performance in industrial settings.

Application

Industrial Uses of 13685-13623X Bearing
13685-13623X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is 13685-13623X Bearing Used?
You’ll often find 13685-13623X Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for vehicles requiring imperial measurements.

Built for Heavy-Duty Use: 13685-13623X Bearing
13685-13623X Bearing excels in industrial gearboxes, providing smooth operation under high radial and thrust loads. The steel cage adds extra strength, making it suitable for prolonged use.

Automotive vs Aerospace: Applications of 13685-13623X Bearing
In automotive systems, 13685-13623X Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary equipment. Its ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: 13685-13623X Bearing
13685-13623X Bearing is ideal for automated conveyor systems, where its tapered rollers reduce friction. The open design allows for easy lubrication, extending its service life.
