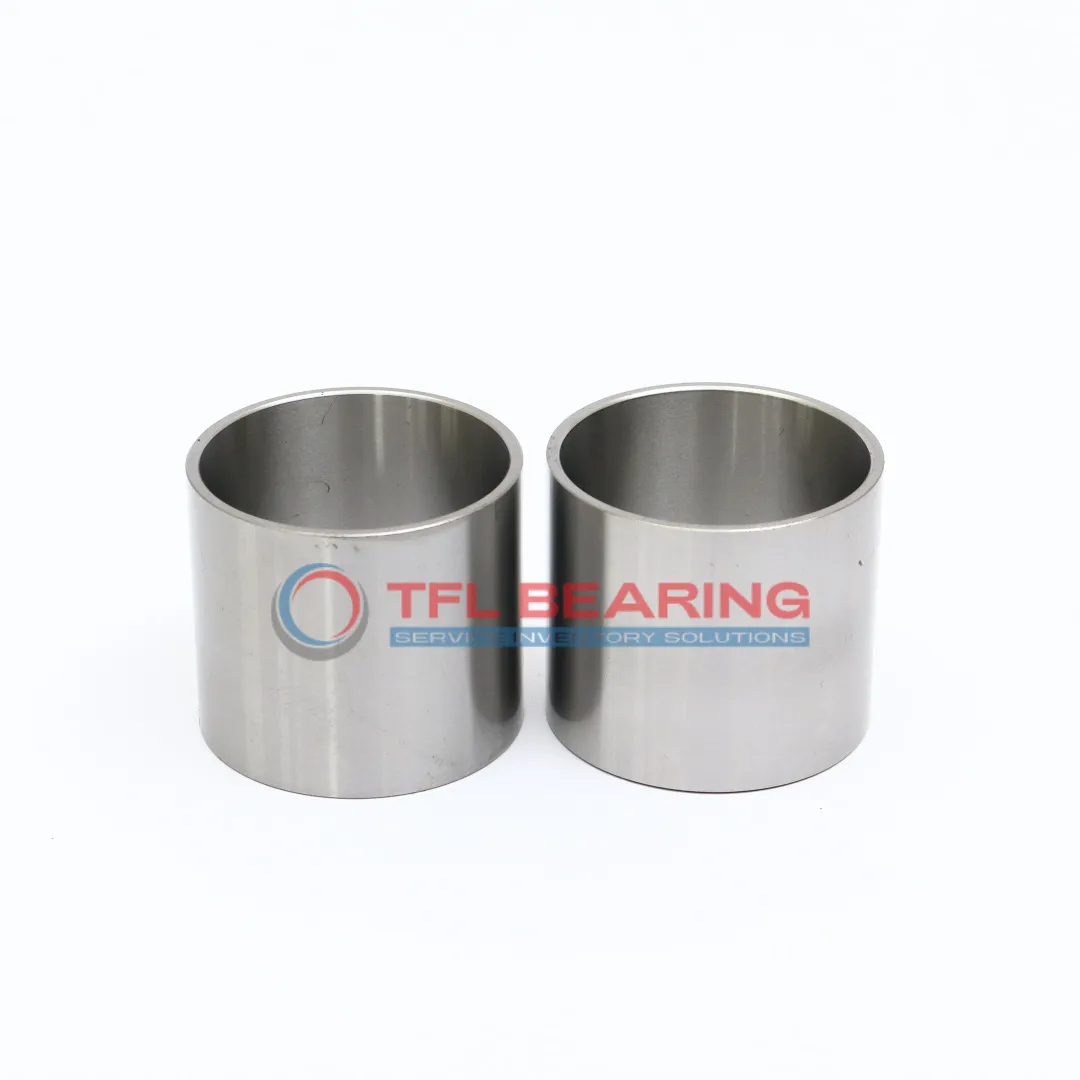

Inner Rings IR10X14X20-XL

Inner Rings IR10X14X20-XL

The IR10X14X20-XL is a needle roller bearing inner ring with a 10mm bore and 14mm outer diameter, crafted from sturdy chrome steel. Its compact width of 20mm makes it suitable for tight spaces.
This component is pre-lubricated for smooth operation and handles radial loads efficiently. The precise tolerances ensure a secure fit in demanding applications.
With a minimal corner radius of 0.3mm, it fits neatly into assemblies. The design is compatible with INA bearings, offering flexibility for replacements.
Ideal for use in gearboxes, transmissions or small machinery where space is limited. Weighing just 11.5g, it’s lightweight yet durable for its size. Compliant with RoHS standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR10X14X20-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.018mm to -0.004mm
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 11.5 g
  • Rmin 0.3 mm
Inner Rings IR10X14X20-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR10X14X20-XL Bearing
IR10X14X20-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The precise bore and outer diameter tolerances enhance fit and performance in various applications.
With a width of 20 mm, it provides stability while maintaining a lightweight design at just 11.5 g.
Lubrication is pre-applied, reducing initial setup time and ensuring smooth operation.
RoHS compliance confirms its adherence to environmental and safety standards.

Application

Industrial Uses of IR10X14X20-XL Bearing
IR10X14X20-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling high radial loads. The chrome steel construction ensures durability in demanding environments like conveyor systems.
What Makes IR10X14X20-XL Bearing a Preferred Choice?
In automotive applications, IR10X14X20-XL Bearing fits well in transmission systems, providing smooth rotation under heavy loads. Its metric sizing makes it easy to integrate with various European and Asian vehicle designs.
Perfect Fit for Automation: IR10X14X20-XL Bearing
For robotic arms and automated machinery, IR10X14X20-XL Bearing offers precise movement thanks to its needle roller design. The lubricated finish reduces friction, ensuring long-term performance in high-speed operations.
Light-Duty vs Heavy-Duty: Best Uses for IR10X14X20-XL Bearing
IR10X14X20-XL Bearing works equally well in light-duty appliances like printers and heavy-duty equipment like hydraulic pumps. Its compact size and robust build make it versatile across different load requirements.
