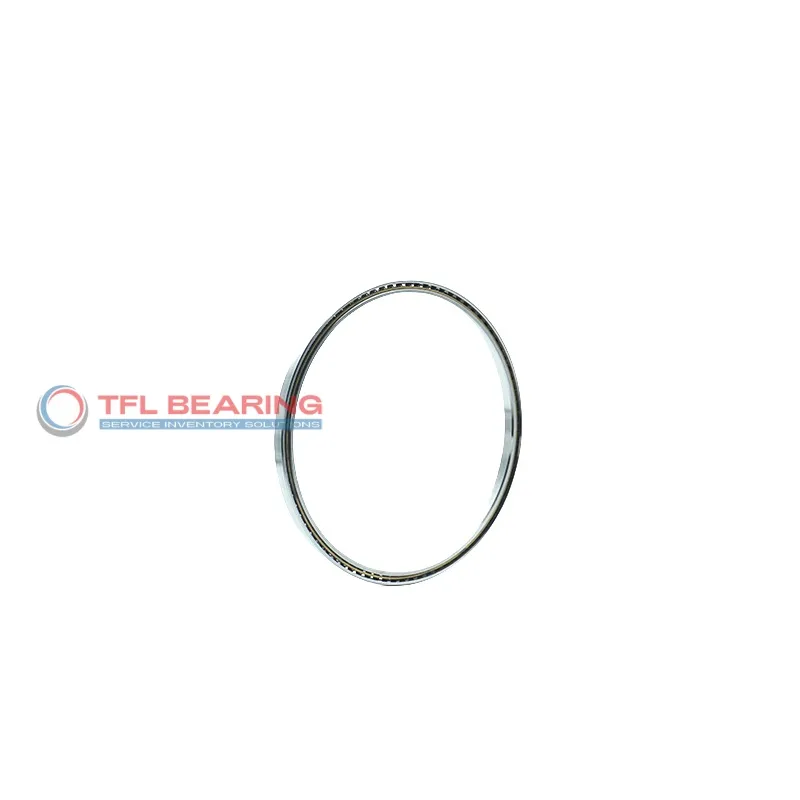

Constant Section (CS) Bearings NG250AR0

Constant Section (CS) Bearings NG250AR0

The NG250AR0 is a constant section bearing with a 25″ bore and 27″ outer diameter, featuring a slim 1″ width. Made from chrome steel with a brass cage, it’s designed for angular contact loads and offers smooth operation.

This bearing handles dynamic radial loads up to 15239 lbf and static loads up to 49280 lbf, making it robust for heavy-duty applications. Its 30° contact angle ensures stable performance under combined loads.

The open design allows easy lubrication, while the chromium plating adds corrosion resistance. It operates in temperatures from -30°C to 110°C, suitable for varied environments.

Ideal for machinery requiring precise motion control, like robotics or industrial equipment. Compliant with RoHS standards, it’s interchangeable with KAYDON bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG250AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 25"
  • Bore Dia Tolerance -0.0018"– 0"
  • Outer Dia 27"
  • Outer Dia Tolerance -0.0018"– 0"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 25.742"
  • Internal Diameter On Outer Ring (Small Side Face) 26.258"
  • Internal Diameter On Outer Ring (Large Side Face) 26.461"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 15239 lbf
  • Static Radial Load 49280 lbf
  • Static Thrust Load 40920 lbf
  • Static Moment 142300 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 19198 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 18.8 lbs
  • price（$） 1847.06

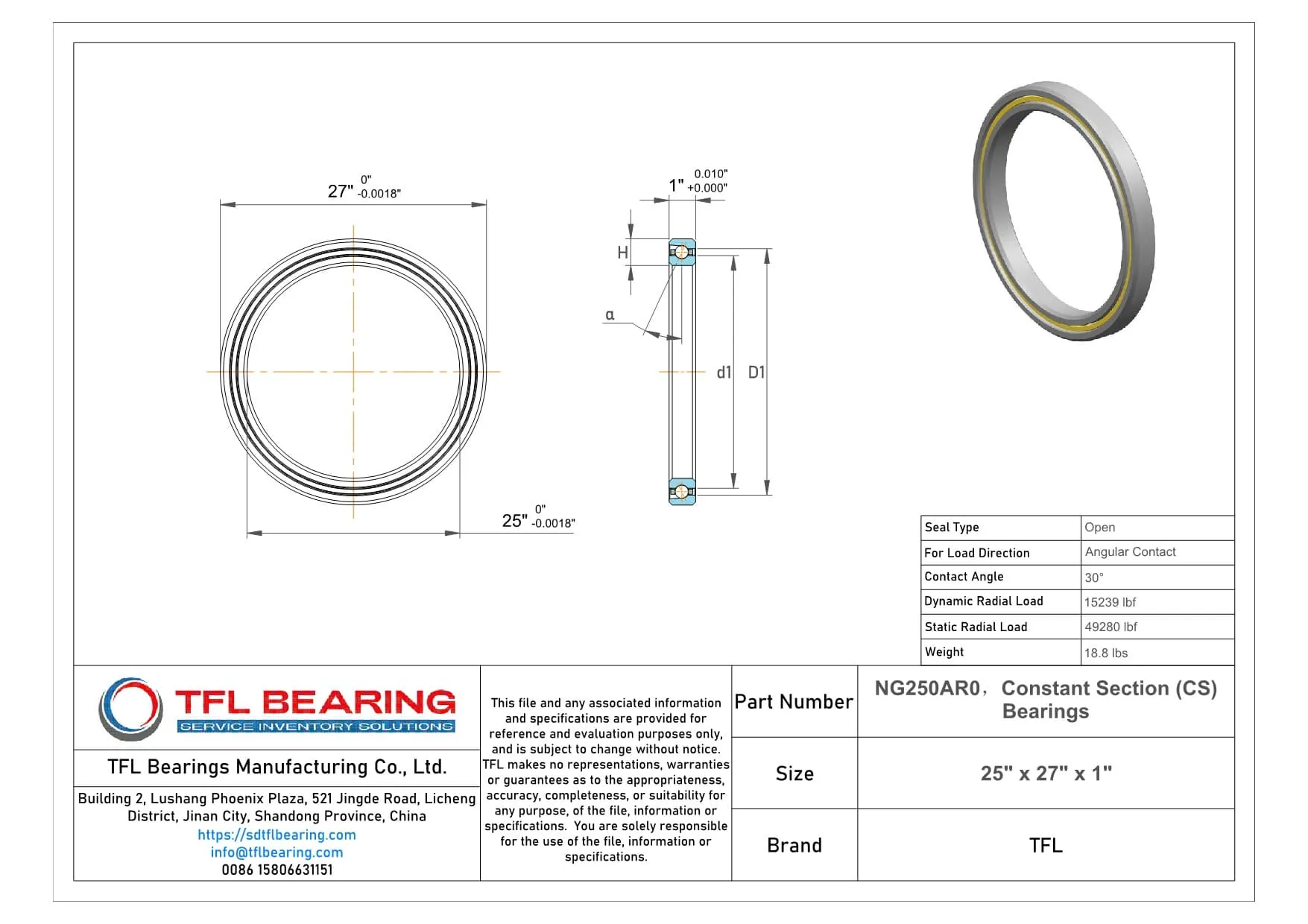

Constant Section (CS) Bearings NG250AR0 dimension drawing
Download DWG Download PDF
