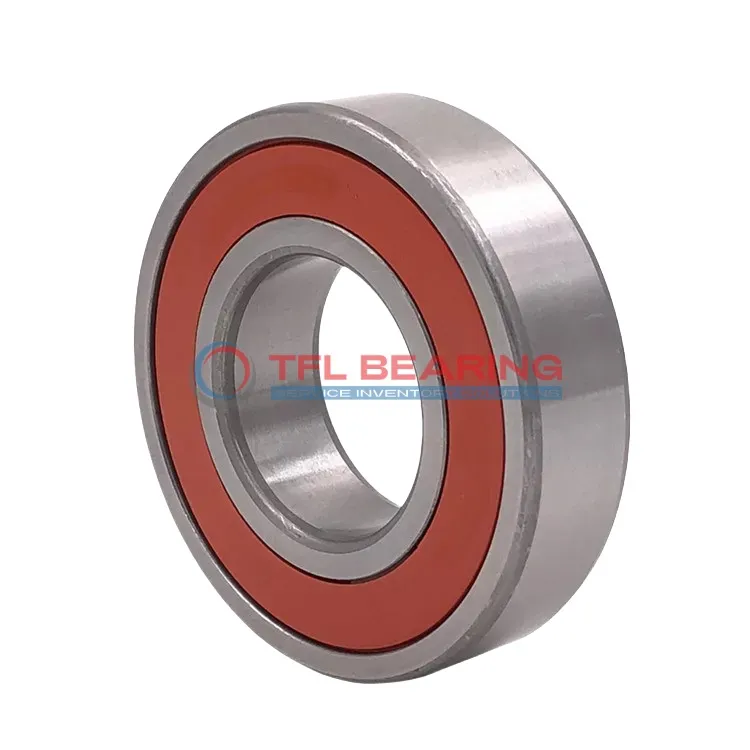

Single Row Deep Groove Ball Bearings 6213-2RS1/C3GJN

Single Row Deep Groove Ball Bearings 6213-2RS1/C3GJN

The 6213-2RS1/C3GJN is a single-row deep groove ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 12859 lbf and operates smoothly at speeds up to 5300 RPM.

Sealed on both sides, this bearing keeps dirt out and grease in, making it low-maintenance. Its C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

Interchangeable with SKF bearings, it’s a practical choice for replacements. Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 979g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6213-2RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 12859 lbf
  • Static Radial Load 9015 lbf
  • Max Speed 5300 rpm
  • Weight 979 g
  • price（$） 18.405
Single Row Deep Groove Ball Bearings 6213-2RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

Why Choose 6213-2RS1/C3GJN Bearing for Precision Tasks?

6213-2RS1/C3GJN Bearing features a single-row deep groove design, ideal for handling radial loads efficiently.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the C3 radial clearance allows for thermal expansion.
With a dynamic radial load capacity of 12859 lbf, it performs reliably under heavy loads.

6213-2RS1/C3GJN Bearing operates within a temperature range of -30°C to 120°C, suitable for diverse applications.
Its maximum speed of 5,300 rpm ensures balanced performance and longevity.

The sealed design reduces maintenance needs, making it a practical choice for long-term use.
Its ISO P0 tolerance class ensures consistent performance in precision tasks.

Application

Industrial Uses of 6213-2RS1/C3GJN Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep out dust and moisture. The C3 clearance ensures reliable performance even under varying thermal conditions.

What Makes 6213-2RS1/C3GJN Bearing a Preferred Choice?
In automotive applications, 6213-2RS1/C3GJN Bearing works well in alternators and water pumps due to its radial load capacity. The chrome steel construction offers durability for long-term use.

Perfect Fit for Automation: 6213-2RS1/C3GJN Bearing
You’ll find this bearing in robotic arms and conveyor systems, where its smooth operation reduces friction. The ABEC 1 tolerance makes it suitable for general precision needs.

Medical vs Industrial: Where 6213-2RS1/C3GJN Bearing Excels
While it’s robust enough for industrial gear, 6213-2RS1/C3GJN Bearing also fits medical devices like centrifuges. Its temperature range allows for consistent performance in various settings.
