Constant Section (CS) Bearings NG220XP0

Constant Section (CS) Bearings NG220XP0

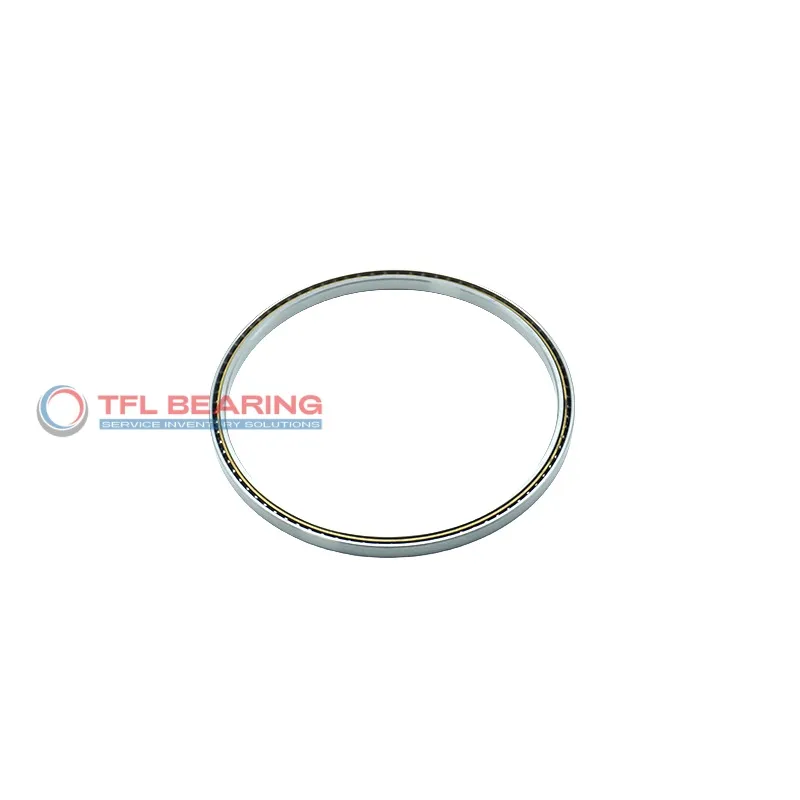

The NG220XP0 is a constant section bearing measuring 22″×24″×1″, designed for four-point contact loads. Made from durable chrome steel with a brass cage, it handles dynamic radial loads up to 18152 lbf and static thrust loads up to 94390 lbf.

Its thin-section design with Endura-kote plating offers smooth operation, while the open seal allows easy maintenance. The bearing works in temperatures from -30°C to 110°C and is lubricated for long-lasting performance.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring high moment load ratings, such as rotary tables or industrial machinery.

Weighing 17.3 lbs, it’s robust yet manageable for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG220XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 22"
  • Bore Dia Tolerance -0.0018"– 0"
  • Outer Dia 24"
  • Outer Dia Tolerance -0.0018"– 0"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 22.742"
  • Internal Diameter On Outer Ring (Small Side Face) 23.258"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 18152 lbf
  • Static Radial Load 37760 lbf
  • Static Thrust Load 94390 lbf
  • Static Moment 434200 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 156 lbf
  • Dynamic Thrust Load 31130 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 17.3 lbs
  • price（$） 2313.95

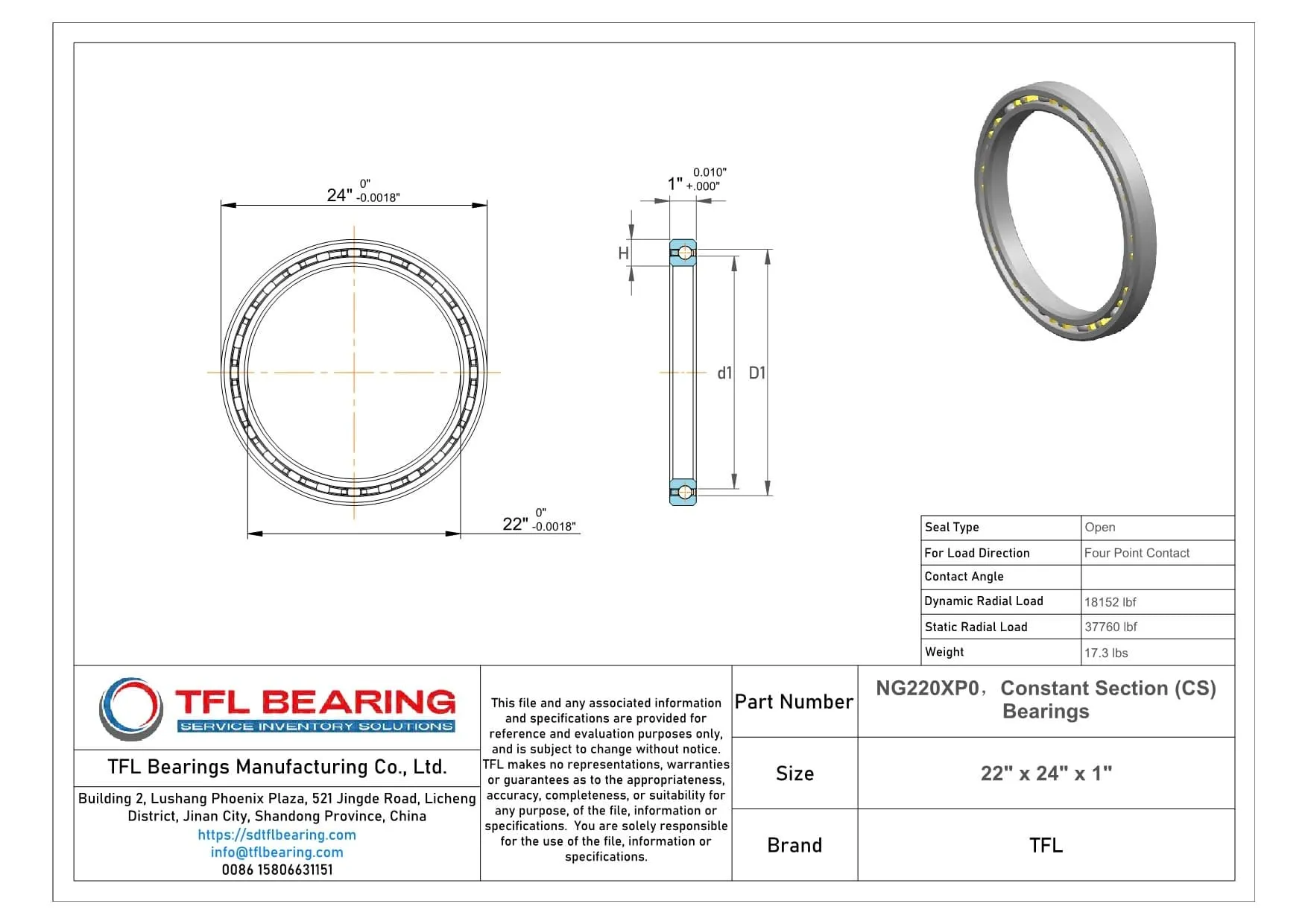

Constant Section (CS) Bearings NG220XP0 dimension drawing
Download DWG Download PDF
