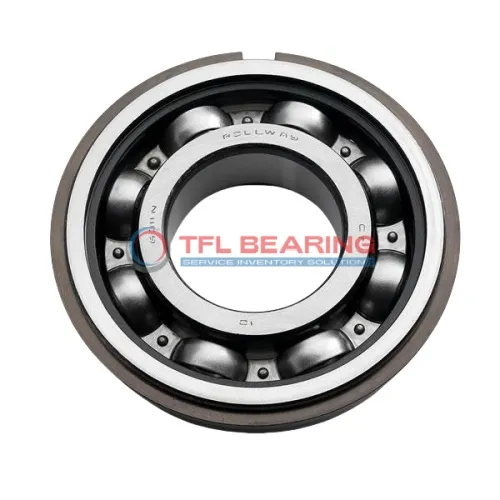

Snap Ring Groove Ball Bearings 6002 2XNRJEM

Snap Ring Groove Ball Bearings 6002 2XNRJEM

The 6002 2XNRJEM is a compact snap ring groove ball bearing, measuring 15mm in bore and 32mm in outer diameter, with a width of 9mm. Made from durable chrome steel, it handles radial loads up to 1259 lbf and spins smoothly at speeds up to 23,000 RPM.

Its snap ring design on the outer ring ensures secure fitting, while the open seal allows for easy maintenance. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where secure mounting is needed.

Weighing just 30g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6002 2XNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 36.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1259 lbf
  • Static Radial Load 641 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 23000 rpm
  • Weight 30 g
  • Price（$） 3.45
Snap Ring Groove Ball Bearings 6002 2XNRJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6002 2XNRJEM Bearing for Precision Tasks?

6002 2XNRJEM Bearing features a snap ring groove design, ensuring secure fitting and easy installation.
Its chrome steel construction provides durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1259 lbf, it handles demanding tasks efficiently.
The bearing operates smoothly at speeds up to 23,000 rpm, making it suitable for high-performance uses.

Its compact size of 15 mm×36.7 mm×9 mm allows for versatile application in tight spaces.
The open seal type ensures easy maintenance while maintaining reliable performance.

6002 2XNRJEM Bearing works within a temperature range of -30° to 120 °C, adapting to various environments.
Its lightweight design at 30 g reduces overall system weight without compromising strength.

Application

Common Applications of 6002 2XNRJEM Bearing
6002 2XNRJEM Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its snap ring design ensures secure positioning. The open seal allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 6002 2XNRJEM Bearing fits well in gearboxes and alternators, providing reliable radial load support. Its compact size and metric dimensions make it a versatile choice for various vehicle models.

For automation and robotics, 6002 2XNRJEM Bearing offers smooth performance in robotic arms and precision machinery. The chrome steel construction ensures durability, even in demanding environments.

In consumer electronics, 6002 2XNRJEM Bearing is often found in printers and small appliances, where its lightweight design and efficiency are key. The snap ring feature adds stability, preventing misalignment during operation.

Medical devices like lab equipment benefit from 6002 2XNRJEM Bearing’s consistent performance and low maintenance needs. Its temperature range and material quality make it suitable for sensitive applications.
