Constant Section (CS) Bearings ND140CP0

Constant Section (CS) Bearings ND140CP0

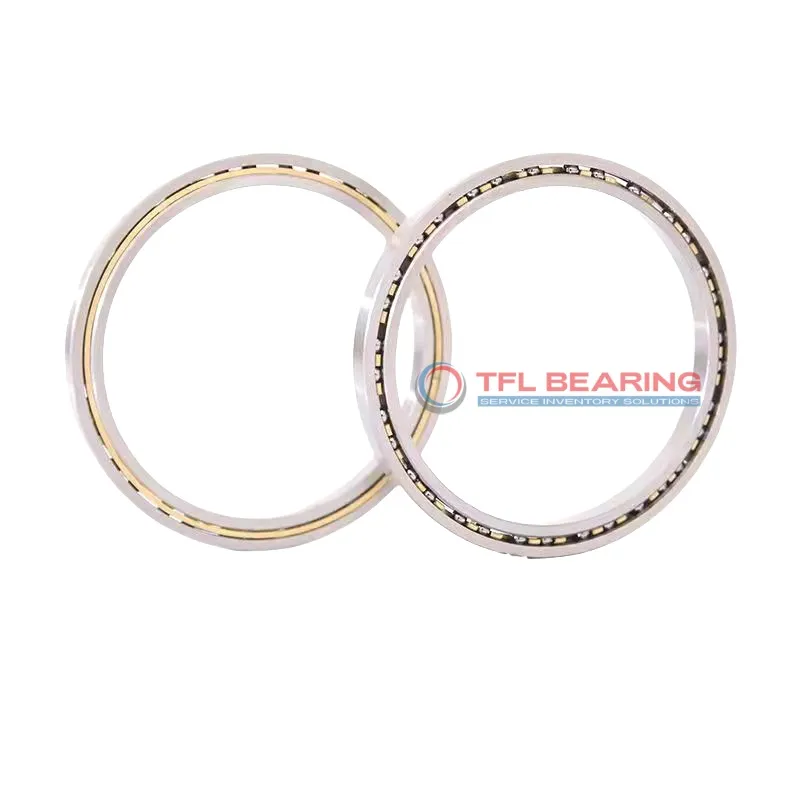

The ND140CP0 is a thin-section radial ball bearing with a 14″ bore and 15″ outer diameter, crafted from durable chrome steel. Its compact 0.5″ width makes it ideal for space-sensitive applications, while the brass cage ensures smooth operation.

This bearing handles radial loads up to 3427 lbf and works well in temperatures from -30°C to 110°C. The open design allows easy lubrication, and the chromium plating adds extra corrosion resistance.

Interchangeable with KAYDON bearings, it’s a practical choice for replacements. Suitable for machinery where slim profiles and radial load capacity are key, such as robotics or precision equipment.

Weighing 2.73 lbs, it’s lightweight yet sturdy. Compliant with RoHS standards, it’s a reliable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number ND140CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 14"
  • Bore Dia Tolerance -0.0016"– 0"
  • Outer Dia 15"
  • Outer Dia Tolerance -0.0016"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series ND 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 14.370"
  • Internal Diameter On Outer Ring (Small Side Face) 14.630"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3427 lbf
  • Static Radial Load 9920 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 5469 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 2.73 lbs
  • price（$） 520.57
Constant Section (CS) Bearings ND140CP0 dimension drawing
Download DWG Download PDF

Features

How Is ND140CP0 Bearing Engineered for Reliability?

ND140CP0 Bearing features chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 3427 lbf, ensuring dependable performance in various applications.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s lifespan.
With a temperature range of -30°C to 110°C, ND140CP0 Bearing adapts to diverse working conditions.

Designed with ABEC-1 tolerance, it provides consistent precision for smooth operation.
The chromium plating enhances durability, making it suitable for long-term use.

Application

Industrial Uses of ND140CP0 Bearing
ND140CP0 Bearing is commonly used in industrial machinery where space is limited but radial load capacity is essential, such as robotic arms and packaging equipment. Its thin-section design makes it ideal for applications requiring compact yet robust solutions.

What Makes ND140CP0 Bearing a Preferred Choice?
In automation systems, ND140CP0 Bearing provides smooth rotation for conveyor belts and assembly line components. The chromium plating enhances durability, ensuring long service life even in high-use environments.

Built for Heavy-Duty Use: ND140CP0 Bearing
ND140CP0 Bearing excels in aerospace applications, where precision and reliability are critical. Its brass cage reduces friction, making it suitable for high-speed operations in aircraft control systems.

Medical vs Industrial: Where ND140CP0 Bearing Excels
For medical imaging devices, ND140CP0 Bearing offers quiet and precise movement, essential for accurate diagnostics. In industrial settings, it supports heavy radial loads in machinery like lathes and milling equipment.

Perfect Fit for Automation: ND140CP0 Bearing
ND140CP0 Bearing is widely used in 3D printers and CNC machines, where its thin profile and high load capacity are advantageous. The chrome steel construction ensures consistent performance under varying temperatures.
