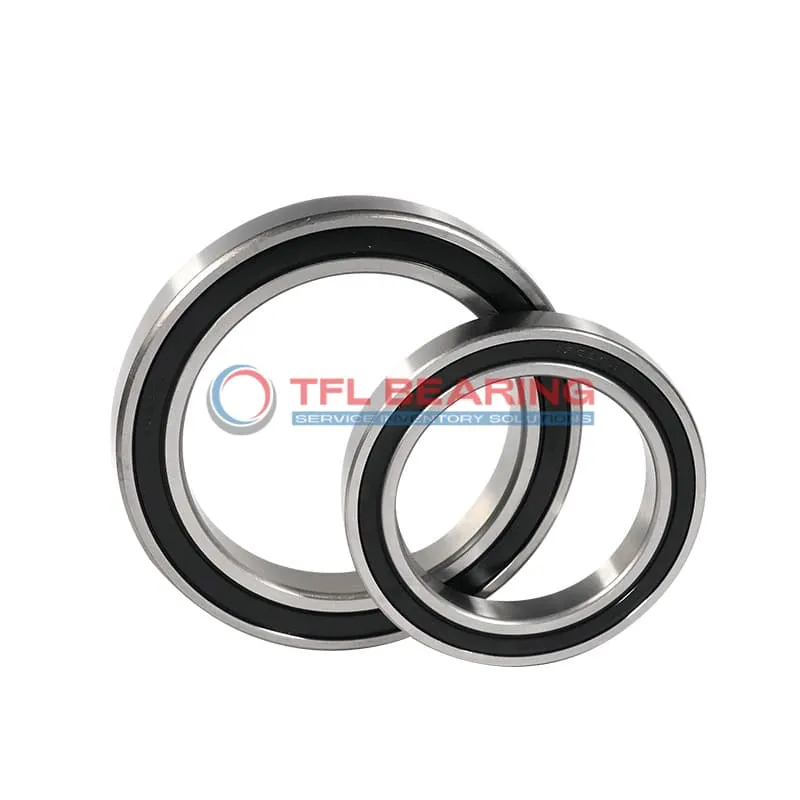

Constant Section (CS) Bearings JG120CPO

Constant Section (CS) Bearings JG120CPO

The JG120CPO is a sealed radial ball bearing with a 12″ bore and 14″ outer diameter, crafted from durable chrome steel. Its slim 1″ width makes it ideal for space-constrained applications without compromising strength.

This bearing handles radial loads up to 10074 lbf and comes pre-lubricated for smooth operation. The brass cage enhances durability while maintaining consistent performance in temperatures from -30°C to 110°C.

Its sealed design keeps contaminants out, reducing maintenance needs. Interchangeable with KAYDON bearings, it offers a reliable replacement option.

Weighing 9.3 lbs, it’s suited for machinery requiring thin-section bearings with robust load capacity. RoHS compliant for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG120CPO
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 12"
  • Outer Dia 14"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 12.554"
  • Internal Diameter On Outer Ring (Small Side Face) 13.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 10074 lbf
  • Static Radial Load 21340 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 14133 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 9.3 lbs
  • price（$） 336.27
Constant Section (CS) Bearings JG120CPO dimension drawing
Download DWG Download PDF

Features

Why Choose JG120CPO Bearing for Precision Tasks?

JG120CPO Bearing features a sealed design with chrome steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 10074 lbf makes it suitable for precision applications requiring reliability.

The brass cage maintains ball alignment, reducing friction and enhancing durability.
With ABEC-1 tolerance class, JG120CPO Bearing offers consistent performance in demanding conditions.

Designed for a temperature range of -30°C to 110°C, it adapts well to various environments.
The lubricated construction ensures long service life with minimal maintenance.

Application

Common Applications of JG120CPO Bearing
JG120CPO Bearing is widely used in industrial equipment, especially in machinery where space constraints are a concern, such as robotic arms and conveyor systems. Its thin-section design ensures it fits seamlessly into compact setups without compromising performance.

In the automotive sector, JG120CPO Bearing is often found in steering systems and electric motors, where its sealed construction helps keep out contaminants. The chrome steel rings and brass cage provide durability, even in high-vibration environments.

For automation and robotics, JG120CPO Bearing’s precise radial load handling makes it ideal for rotary tables and positioning systems. The ABEC-1 tolerance ensures smooth operation, which is critical for repetitive tasks.

In medical imaging devices, JG120CPO Bearing offers reliable performance due to its sealed design and consistent load capacity. The lubricated construction also reduces maintenance needs, making it a practical choice for high-use equipment.

Around the home, JG120CPO Bearing can be spotted in appliances like ceiling fans and printers, where its quiet operation and long lifespan are appreciated. The inch sizing makes it compatible with a variety of consumer products.
