Single Row Deep Groove Ball Bearings 6215 TC/C782

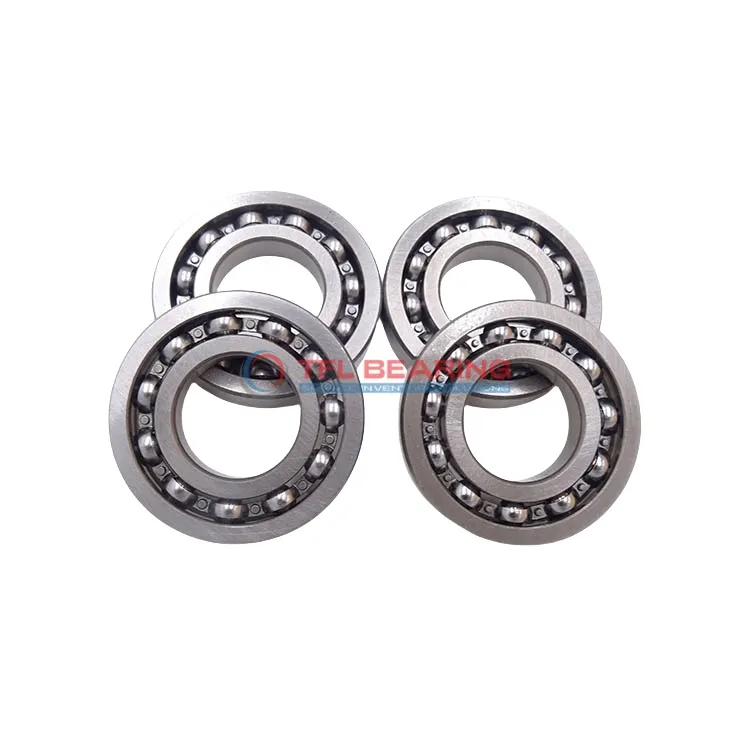

Single Row Deep Groove Ball Bearings 6215 TC/C782

The 6215 TC/C782 is a single-row deep groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 15152 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1170g, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215 TC/C782
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 15152 lbf
  • Static Radial Load 10858 lbf
  • Max Speed 4800 rpm
  • Weight 1170 g
  • price（$） 161.757
Single Row Deep Groove Ball Bearings 6215 TC/C782 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6215 TC/C782 Bearing

6215 TC/C782 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 15152 lbf, making it suitable for heavy-duty applications.

The single-row deep groove design ensures smooth operation and reduces friction during use.
With a maximum speed of 4,800 rpm, it balances performance and durability in various conditions.

6215 TC/C782 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its open seal type allows for easy maintenance and inspection when needed.

Application

Industrial Uses of 6215 TC/C782 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

How Does 6215 TC/C782 Bearing Improve Performance?
In automotive applications, it supports components such as alternators and water pumps, providing smooth rotation and reducing friction. Its ABEC 1 tolerance makes it reliable for standard precision needs.

Perfect Fit for Automation: 6215 TC/C782 Bearing
For robotic arms and conveyor systems, this bearing offers consistent performance with its open design and high load capacity. The metric sizing ensures compatibility with various automation equipment.

Medical vs Industrial: Where 6215 TC/C782 Bearing Excels
While it’s robust enough for heavy machinery, its precision also suits medical devices like lab equipment. The temperature range allows it to perform reliably in different settings.

Essential Roles of 6215 TC/C782 Bearing
In household appliances like washing machines, this bearing reduces noise and vibration. Its static and dynamic load ratings make it a dependable choice for long-term use.
