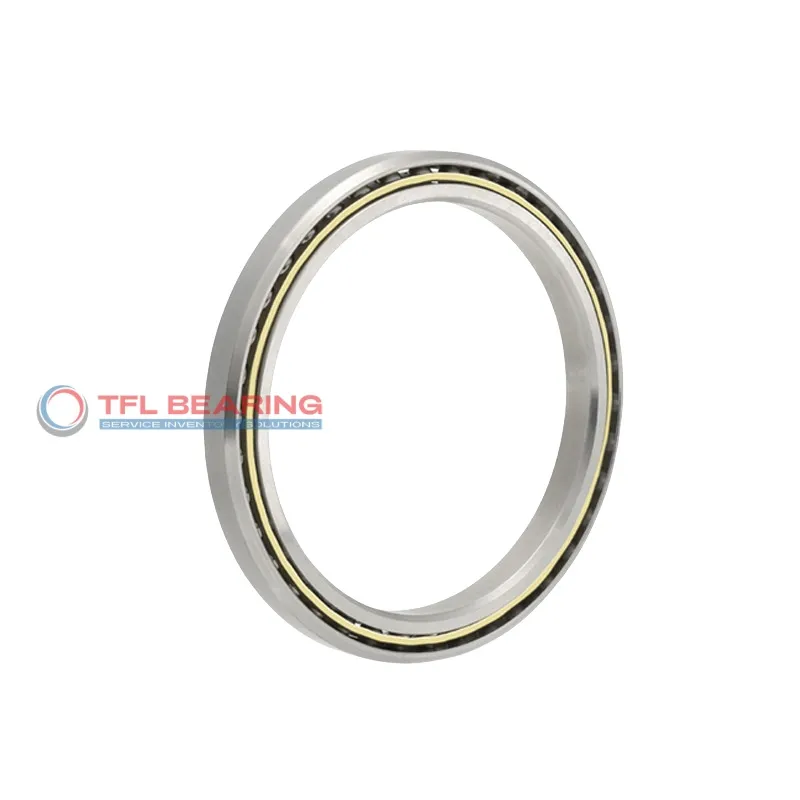

Constant Section (CS) Bearings K13020CP0

Constant Section (CS) Bearings K13020CP0

The K13020CP0 is a constant section ball bearing with a slim 20mm width and dimensions of 130mm bore by 170mm outer diameter. Made from chrome steel with a brass cage, it handles radial loads up to 4460 lbf smoothly.

Its open design and ABEC-1 tolerance ensure reliable performance, while the thin section construction saves space in compact setups. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications like robotics or precision machinery where slim profiles and radial load capacity are key.

Weighing 1.08kg, it’s lightweight yet sturdy. Compliant with RoHS standards for safe use. Pre-lubricated for easy installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K13020CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 20 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 20 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 145 mm
  • Internal Diameter On Outer Ring (Small Side Face) 155 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 4460 lbf
  • Static Radial Load 7374 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 6807 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.08 Kg
  • price（$） 132.65
Constant Section (CS) Bearings K13020CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of K13020CP0 Bearing

K13020CP0 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 4460 lbf.
Its brass cage ensures smooth operation and reduces friction, enhancing efficiency.

The slim 20 mm width design makes K13020CP0 Bearing ideal for space-constrained applications.
With a temperature range of -30°C to 110°C, it performs reliably in various environments.

K13020CP0 Bearing’s ABEC-1 tolerance class provides consistent precision for radial applications.
Its open seal type allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Industrial Uses of K13020CP0 Bearing
K13020CP0 Bearing is commonly used in industrial machinery where space is limited but precision is key, such as robotic arms and packaging equipment. Its thin-section design ensures it fits snugly without compromising performance.

What Makes K13020CP0 Bearing a Preferred Choice?
In automation systems, K13020CP0 Bearing excels due to its brass cage, which reduces friction and extends service life. The open seal design allows for easy lubrication, keeping operations smooth.

Built for Heavy-Duty Use: K13020CP0 Bearing
K13020CP0 Bearing handles radial loads effortlessly in applications like conveyor systems and printing presses. Its chrome steel construction ensures durability even in demanding environments.

Medical vs Industrial: Where K13020CP0 Bearing Excels
While K13020CP0 Bearing is robust enough for industrial gear, its precision also suits medical imaging devices. The ABEC-1 tolerance guarantees reliable performance in sensitive equipment.

Automotive vs Aerospace: Applications of K13020CP0 Bearing
K13020CP0 Bearing is versatile enough for automotive steering systems and aerospace actuators. Its metric sizing makes it compatible with a wide range of international designs.
