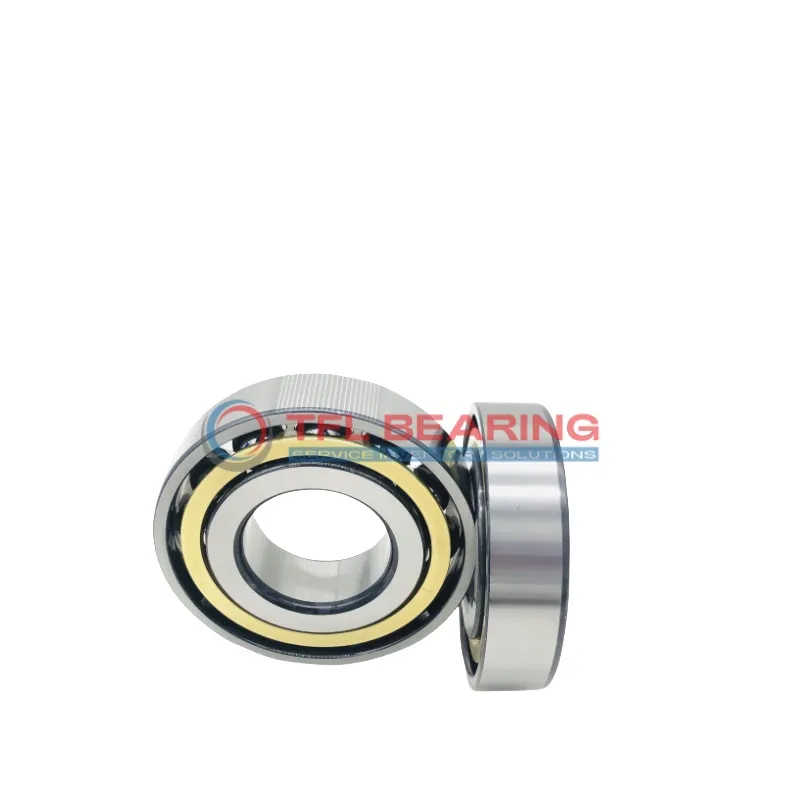

Single Row Angular Contact Ball Bearings (General) 70/1000 AMB

Brand: TFL Bearing Interchangeable: SKF 70/1000 AMB 1000 mm × 1420 mm × 185 mm Metric Open
Part number: 70/1000 AMB
Single Row Angular Contact Ball Bearings (General) 70/1000 AMB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia1,000 mm
Bore Dia Tolerance-0.06mm to 0
Outer Dia1,420 mm
Outer Dia Tolerance-0.09mm to 0
Width185 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)1,169 mm
External Diameter On Inner Ring (Small Side Face)1,098 mm
Internal Diameter On Outer Ring1,262 mm
Chamfer Dimension7.5 mm
Performance
Dynamic Radial Load366,750 lbf
Static Radial Load1,215,000 lbf
Temperature Range-30° to 110 °C
Max Speed380 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)442 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight890 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 70/1000 AMB is a large single-row angular contact ball bearing with a 1000mm bore and 1420mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 366,750 lbf and operates at speeds up to 380 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage ensures smooth rotation, while the open design simplifies lubrication.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery. Its P6 tolerance class offers reliable precision for demanding environments.

Weighing 890kg, it’s built for stability under high loads. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Features

Performance Features of 70/1000 AMB Bearing

70/1000 AMB Bearing is built with a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, handling dynamic radial loads up to 366,750 lbf.

The brass cage ensures smooth operation, reducing friction and wear even at lower speeds.
With a P6 tolerance class, it offers reliable precision in demanding industrial settings.

70/1000 AMB Bearing operates efficiently within a temperature range of -30° to 110°C.
Its large bore diameter of 1000 mm makes it suitable for heavy-duty machinery.

Application

Industrial Uses of 70/1000 AMB Bearing
70/1000 AMB Bearing is commonly used in large-scale industrial machinery, such as heavy-duty presses and rolling mills, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even under high stress.

In wind turbine applications, 70/1000 AMB Bearing supports the main shaft, providing stability and durability in demanding environments. Its P6 tolerance class guarantees precise performance for long-term reliability.

For mining equipment, 70/1000 AMB Bearing’s robust construction makes it suitable for conveyor systems and crushers. The chrome steel rings and balls offer excellent wear resistance in abrasive conditions.

Automotive vs Aerospace: Applications of 70/1000 AMB Bearing
In automotive testing rigs, 70/1000 AMB Bearing handles high loads during component endurance tests. Its large bore size accommodates heavy shafts commonly found in these setups.

Aerospace applications benefit from 70/1000 AMB Bearing’s precision in landing gear systems. The lubricated design ensures consistent performance across temperature variations.

Built for Heavy-Duty Use: 70/1000 AMB Bearing
70/1000 AMB Bearing excels in steel production lines, where its 40° contact angle manages intense loads from continuous casting machines. The metric dimensions simplify integration with European equipment standards.

In paper manufacturing, this bearing’s brass cage reduces friction in dryer sections. Its static load capacity of 1,215,000 lbf ensures reliability in high-pressure environments.
