Constant Section (CS) Bearings K09020AR0

Constant Section (CS) Bearings K09020AR0

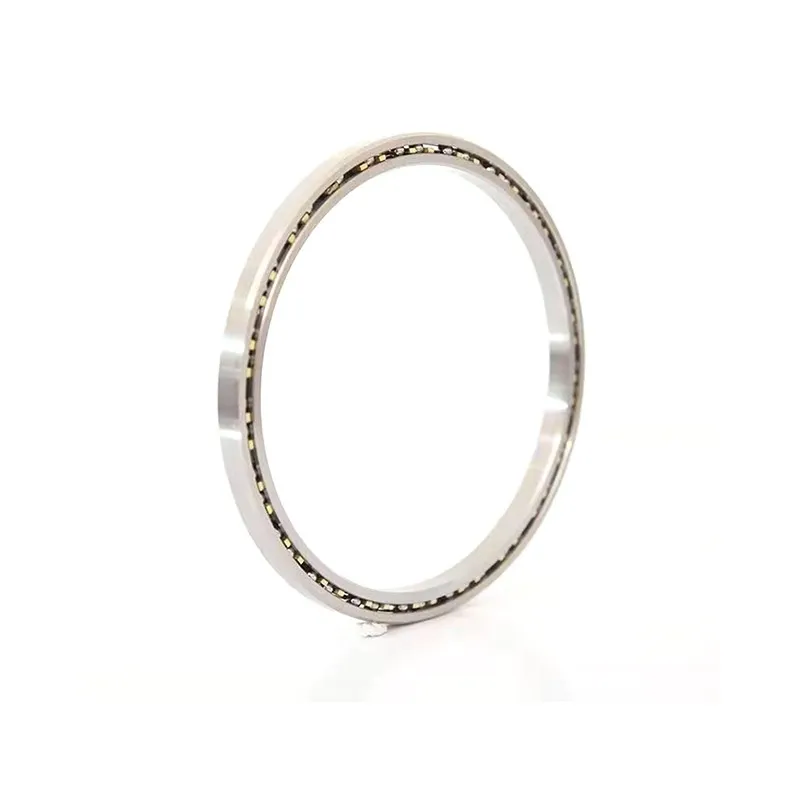

The K09020AR0 is a slim metric bearing with a 90mm bore and 130mm outer diameter, crafted from durable chrome steel. Its 20mm width makes it a compact choice for tight spaces, while handling radial loads up to 4081 lbf and thrust loads up to 8966 lbf.

Designed with a 30° contact angle, it offers smooth angular contact performance. The brass cage ensures quiet operation, and its open design allows for easy lubrication.

This bearing is interchangeable with KAYDON models, ideal for precision applications like robotics or medical equipment. It operates efficiently in temperatures from -30°C to 110°C.

Weighing 0.77kg, it’s lightweight yet sturdy, complying with RoHS standards for safety and reliability. Perfect for scenarios requiring slim, high-performance bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K09020AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 20 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 105 mm
  • Internal Diameter On Outer Ring (Small Side Face) 115 mm
  • Internal Diameter On Outer Ring (Large Side Face) 120 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 4081 lbf
  • Static Radial Load 6664 lbf
  • Static Thrust Load 8966 lbf
  • Static Moment 19237 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 6608 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.77 Kg
  • price（$） 92.58

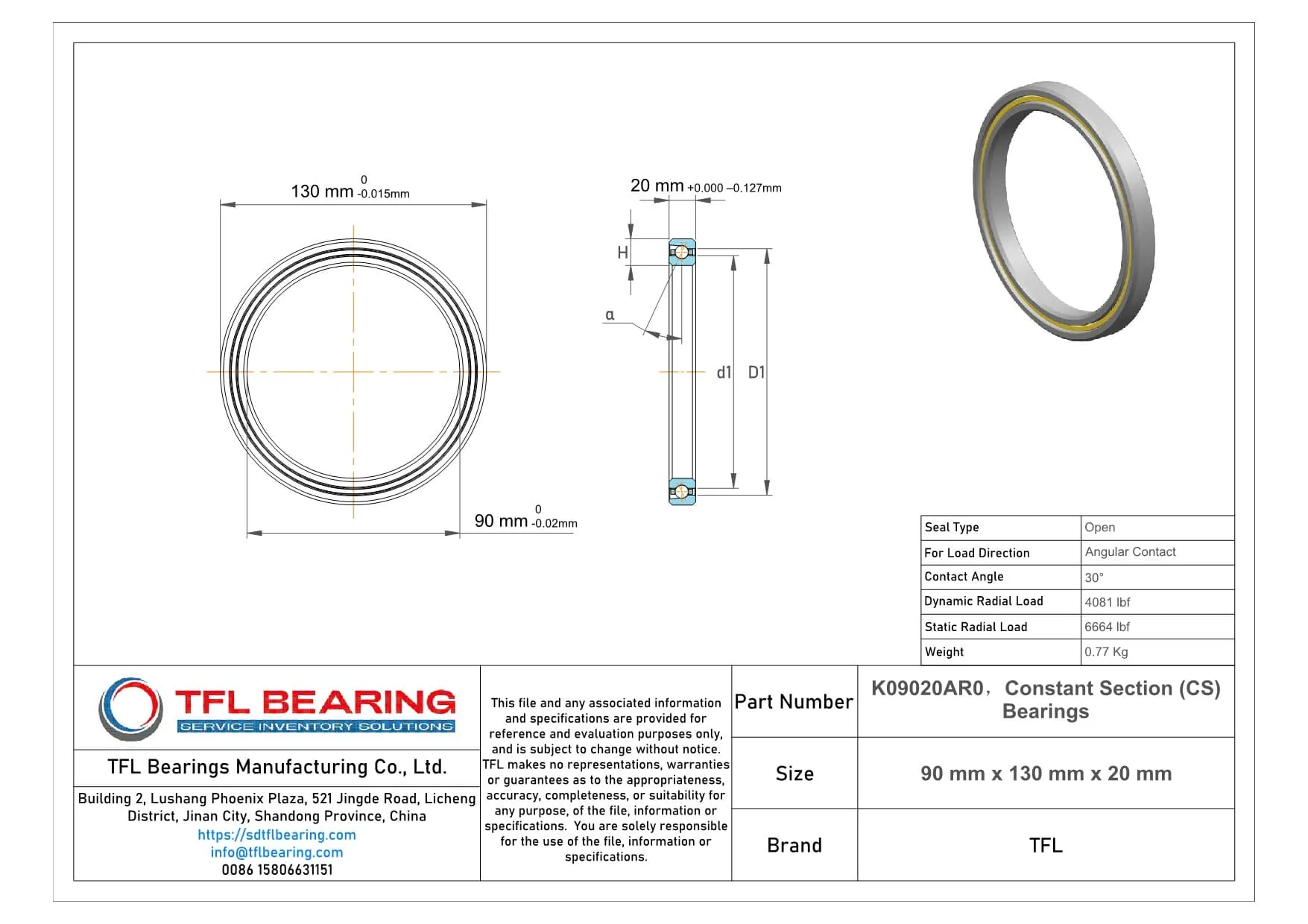

Constant Section (CS) Bearings K09020AR0 dimension drawing
Download DWG Download PDF
