Constant Section (CS) Bearings JU100XP0

Constant Section (CS) Bearings JU100XP0

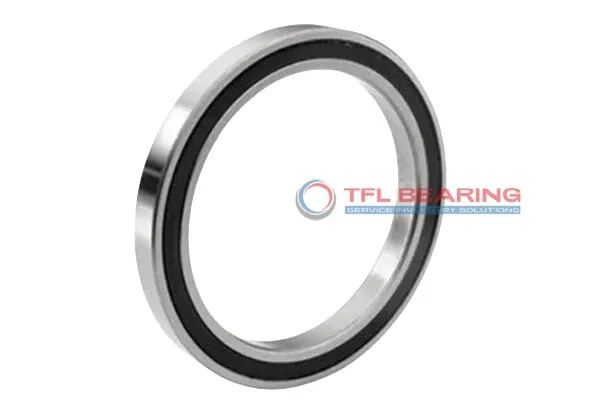

The JU100XP0 is a sealed thin-section bearing with a 10″ bore and 10.75″ outer diameter, measuring just 0.5″ in width. Made from chrome steel with a brass cage, it handles radial loads up to 2364 lbf and thrust loads up to 3930 lbf.
Its four-point contact design provides stability, while the sealed construction keeps dirt out and lubrication in. The bearing operates smoothly in temperatures from -30°C to 110°C.
This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications like robotics or medical equipment where space is limited but performance matters.
Weighing 1.31 lbs, it’s lightweight yet robust for its size, and complies with RoHS standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JU100XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 10"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 10.75"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JU 1/2" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 10.150"
  • Internal Diameter On Outer Ring (Small Side Face) 10.535"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2364 lbf
  • Static Radial Load 4990 lbf
  • Static Thrust Load 12470 lbf
  • Static Moment 25880 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 9 lbf
  • Dynamic Thrust Load 3930 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.31 lbs
  • price（$） 212.79
Constant Section (CS) Bearings JU100XP0 dimension drawing
Download DWG Download PDF

Features

How Is JU100XP0 Bearing Engineered for Reliability?

JU100XP0 Bearing features a sealed design, protecting it from dust and moisture in harsh environments.
Its chrome steel rings and balls provide excellent resistance to wear, ensuring long-term performance.

The brass cage maintains proper ball alignment, reducing friction and extending the bearing’s life.
With a static thrust load capacity of 12,470 lbf, it handles heavy loads reliably.

JU100XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures consistent precision in various applications.

Application

Key Fields for JU100XP0 Bearing
JU100XP0 Bearing is commonly used in robotics, particularly in articulated arms where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

In aerospace applications, JU100XP0 Bearing handles moment loads in control mechanisms, thanks to its four-point contact design. The brass cage reduces friction, making it suitable for precision movements in flight systems.

For packaging machinery, JU100XP0 Bearing supports rotary tables where consistent performance is needed. Its ABEC-1 tolerance provides reliable operation without requiring frequent adjustments.

In medical imaging devices, JU100XP0 Bearing’s chrome steel construction ensures smooth rotation under radial loads. The lubricated seals maintain quiet operation, critical for sensitive diagnostic equipment.
