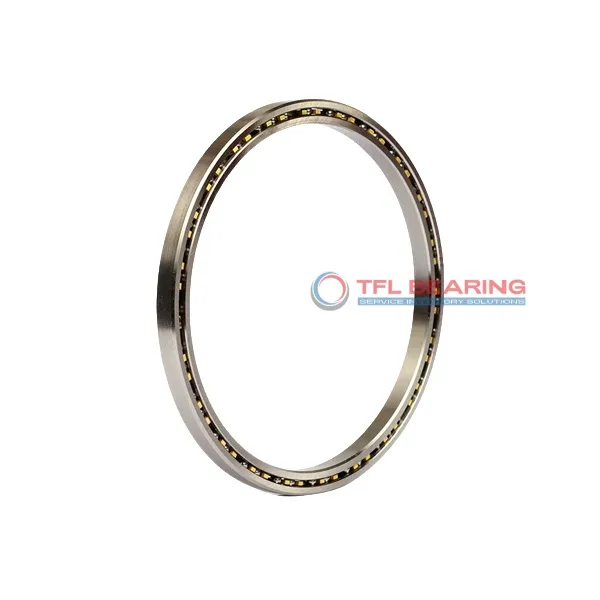

Constant Section (CS) Bearings SA055AR0

Constant Section (CS) Bearings SA055AR0

The SA055AR0 is a slim, stainless steel angular contact bearing measuring 5.5″ in bore and 6″ in outer diameter, with a thin 0.25″ width. Its stainless steel construction and brass cage offer durability and smooth operation.

Designed for angular loads, it handles radial loads up to 715 lbf and static thrust loads of 1800 lbf. The 30° contact angle ensures stable performance in demanding applications.

This open-type bearing is easy to maintain and works in temperatures from -30°C to 110°C. It’s interchangeable with KAYDON models, making replacements straightforward.

Ideal for precision equipment where space is limited, such as robotics or medical devices. Compliant with RoHS standards and weighing just 0.25 lbs, it’s both lightweight and reliable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SA055AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 6"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 5.686"
  • Internal Diameter On Outer Ring (Small Side Face) 5.814"
  • Internal Diameter On Outer Ring (Large Side Face) 5.863"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 715 lbf
  • Static Radial Load 2020 lbf
  • Static Thrust Load 1800 lbf
  • Static Moment 5820 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1513 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.25 lbs
  • price（$） 264.07
Constant Section (CS) Bearings SA055AR0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SA055AR0 Bearing

SA055AR0 Bearing is constructed with stainless steel rings and balls, offering excellent resistance to corrosion.
Its angular contact design efficiently handles both radial and thrust loads, making it versatile for various applications.
The brass cage ensures smooth operation by keeping the balls properly aligned.
With a temperature range of -30°C to 110°C, it performs reliably in diverse environments.

Application

Industrial Uses of SA055AR0 Bearing
SA055AR0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery, where its thin-section design saves space without compromising strength. The stainless steel construction ensures durability in environments with frequent movement and moderate loads.

What Makes SA055AR0 Bearing a Preferred Choice?
In medical imaging devices, SA055AR0 Bearing provides smooth rotation and reliable performance, thanks to its brass cage and 30° contact angle. Its ABEC-1 tolerance class makes it suitable for applications where precision is key but extreme accuracy isn’t required.

Built for Heavy-Duty Use: SA055AR0 Bearing
For aerospace applications, SA055AR0 Bearing handles angular contact loads effectively, making it ideal for control systems and instrumentation. The inch sizing ensures compatibility with a variety of North American and international equipment designs.

Automotive vs Aerospace: Applications of SA055AR0 Bearing
In automotive steering systems, SA055AR0 Bearing offers consistent performance under radial and moment loads, while in aerospace, its lightweight design is perfect for compact mechanisms. The lubricated setup ensures long service life in both fields.

Perfect Fit for Automation: SA055AR0 Bearing
SA055AR0 Bearing works well in 3D printers and CNC machines, where its thin profile and stainless steel build reduce friction and wear. The open seal type allows for easy maintenance, keeping downtime to a minimum.
